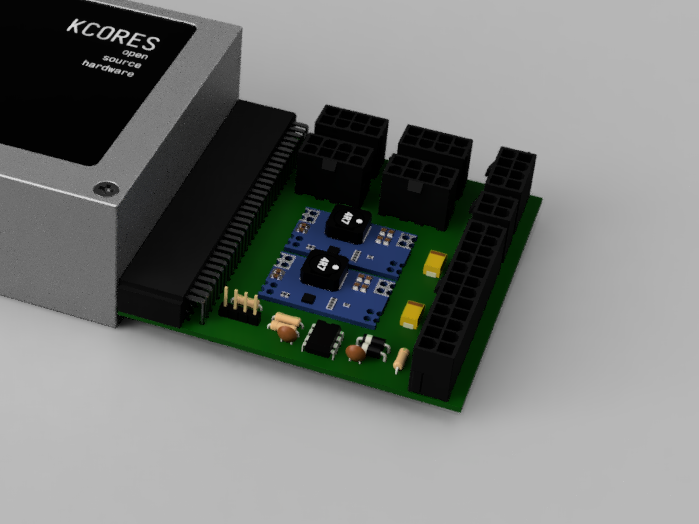

KCORES-CSPS-to-ATX-Converter
About the KCORES-CSPS-to-ATX-Converter PCB
KCORES-CSPS-to-ATX-Converter is an open source PCB design by KCORES, published on GitHub under the Custom license license. It is a 2-layer board measuring 86.1 × 86.1 mm, with 24 components from 13 distinct parts.
Other key parts include the Mini560 5V, Mini560 3.3V and TPS3511. By type, the board carries 9 connectors, 5 capacitors, 4 ICs, 4 resistors and 2 diodes.
From the project
Super ATX Power!
- 项目视频: 1元10瓦 垃圾佬的超级ATX电源-Youtube - KCORES 交流群: 826702309 - KCORES 官方网站: KCORES.com - 从零开始制作: 入门指南
KCORES CSPS to ATX Converter 可以用于引脚特征如下图所示的电源
目前已知 Hewlett Packard Enterprise 与 Huawei 大量生产过 CSPS (Common Slot Power Supply). 不同厂家生产的 CSPS 可能外形略有不同, 但金手指必须与图示一致才可使用.
- @AlphaArea - @Ubiq - @karminski-牙医 - @MistyMoonR
Main components on the KCORES-CSPS-to-ATX-Converter
KCORES-CSPS-to-ATX-Converter bill of materials (BOM)
24 components, 13 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | Mini560 5V | Converter_DCDC_Mini_560 | U1, U3 |
| 1 | Mini560 3.3V | Converter_DCDC_Mini_560 | U2 |
| 1 | TPS3511 | DIP-8_W7.62mm | U4 |
| 1 | CSPS | CSPS_64P_2.54mm | J1 |
| 1 | PMBUS | PinHeader_1x04_P2.54mm_Vertical | J2 |
| 5 | GW_PCIe/CPU | ATX_8Pin_P4.20mm_Vertical_4.20mm | J3, J4, J5, J6, J7 |
| 1 | IDE/SATA | ATX_4Pin_P4.20mm_Vertical_4.20mm | J8 |
| 1 | GW_24P_ATX | ATX_24Pin_P4.20mm_Vertical_4.20mm | J9 |
| 2 | 1N4001 | D_DO-41_SOD81_P7.62mm_Horizontal | D1, D2 |
| 3 | 100uF | CP_EIA-7343-31_Kemet-D_Pad2.25x2.55mm_HandSolder | C1, C2, C3 |
| 2 | 100nF | C_Disc_D5.0mm_W2.5mm_P2.50mm | C4, C5 |
| 2 | 22K | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1, R2 |
| 2 | 3.3K | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R3, R4 |
KCORES-CSPS-to-ATX-Converter design files
The KiCad project lives in the KCORES/KCORES-CSPS-to-ATX-Converter repository on GitHub; these links point at the commit this page was built from.
KCORES-CSPS-to-ATX-Converter: common questions
How big is the KCORES-CSPS-to-ATX-Converter PCB?
The KCORES-CSPS-to-ATX-Converter measures 86.1 × 86.1 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the KCORES-CSPS-to-ATX-Converter?
24 components, from 13 distinct parts. The full bill of materials is listed on this page.
Where can I download the KCORES-CSPS-to-ATX-Converter design files?
From the KCORES/KCORES-CSPS-to-ATX-Converter repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the KCORES-CSPS-to-ATX-Converter design in my own project?
It is published under Custom license, which limits how it may be reused; read the license before building on it.
