KCORES-FlexibleLOM-Adapter
About the KCORES-FlexibleLOM-Adapter PCB
KCORES-FlexibleLOM-Adapter is an open source PCB design by KCORES, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 96.3 × 30.3 mm, with 1 components from 1 distinct parts.
From the project
KCORES FlexibleLOM to PCIe x8 adapter and baffle model

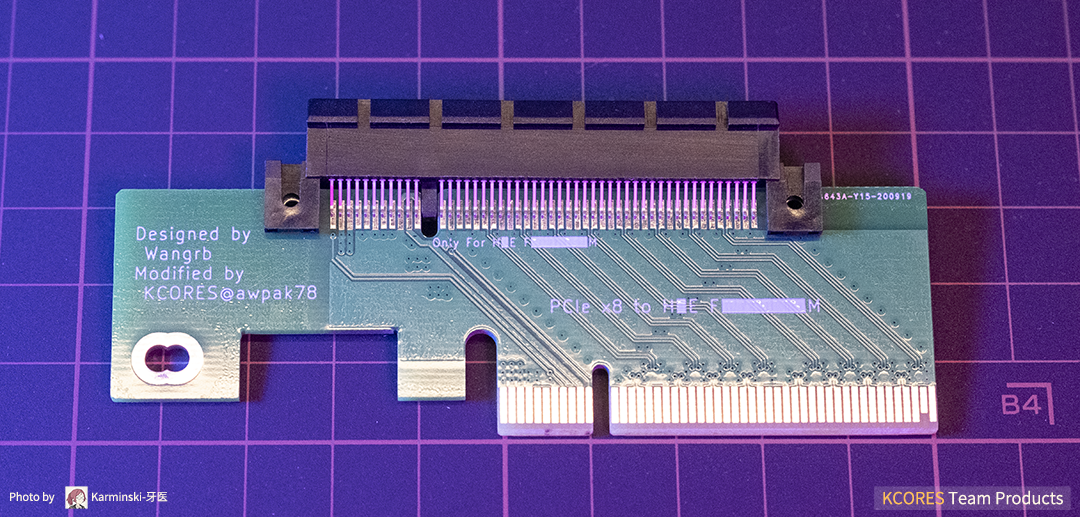

KCORES FlexibleLOM to PCIe x8 adapter and baffle model. The FLR series network cards can be used on normal motherboards PCIe slots, including common Gigabit, 10G, and 40G network cards. Due to size limitations, only full-height baffle design is available.
KCORES FlexibleLOM 转 PCIe x8 转接卡开源设计，可以让普通电脑主板的 PCIe 槽使用 FLR 系列网卡，包括常见的千兆、万兆、40G网卡。由于尺寸限制，只提供全高挡板设计。
- 2 Layers PCB design, Easy to make 双层PCB设计，容易制造
KCORES-FlexibleLOM-Adapter bill of materials (BOM)
1 components, 1 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | HPE_FlexibleLOM | BUS_PCIexpress_x8_Straddle_Mount_Modify | J2 |
KCORES-FlexibleLOM-Adapter design files
The KiCad project lives in the KCORES/KCORES-FlexibleLOM-Adapter repository on GitHub; these links point at the commit this page was built from.
KCORES-FlexibleLOM-Adapter: common questions
How big is the KCORES-FlexibleLOM-Adapter PCB?
The KCORES-FlexibleLOM-Adapter measures 96.3 × 30.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the KCORES-FlexibleLOM-Adapter?
1 components, from 1 distinct parts. The full bill of materials is listed on this page.
Where can I download the KCORES-FlexibleLOM-Adapter design files?
From the KCORES/KCORES-FlexibleLOM-Adapter repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the KCORES-FlexibleLOM-Adapter design in my own project?
Yes, under the terms of its GPL-3.0 license, which KCORES chose for the repository.
