Deepsea light pcba
About the Deepsea light pcba PCB
Deepsea light pcba is an open source PCB design by keenanjohnson, published on GitHub. It is a 4-layer board measuring 124.5 × 56.8 mm, with 11 components from 7 distinct parts.
Other key parts include the 2604-1104 and 2604-1103. By type, the board carries 6 connectors and 5 ICs.
From the project
A PCB for controlling Deepsea Lights

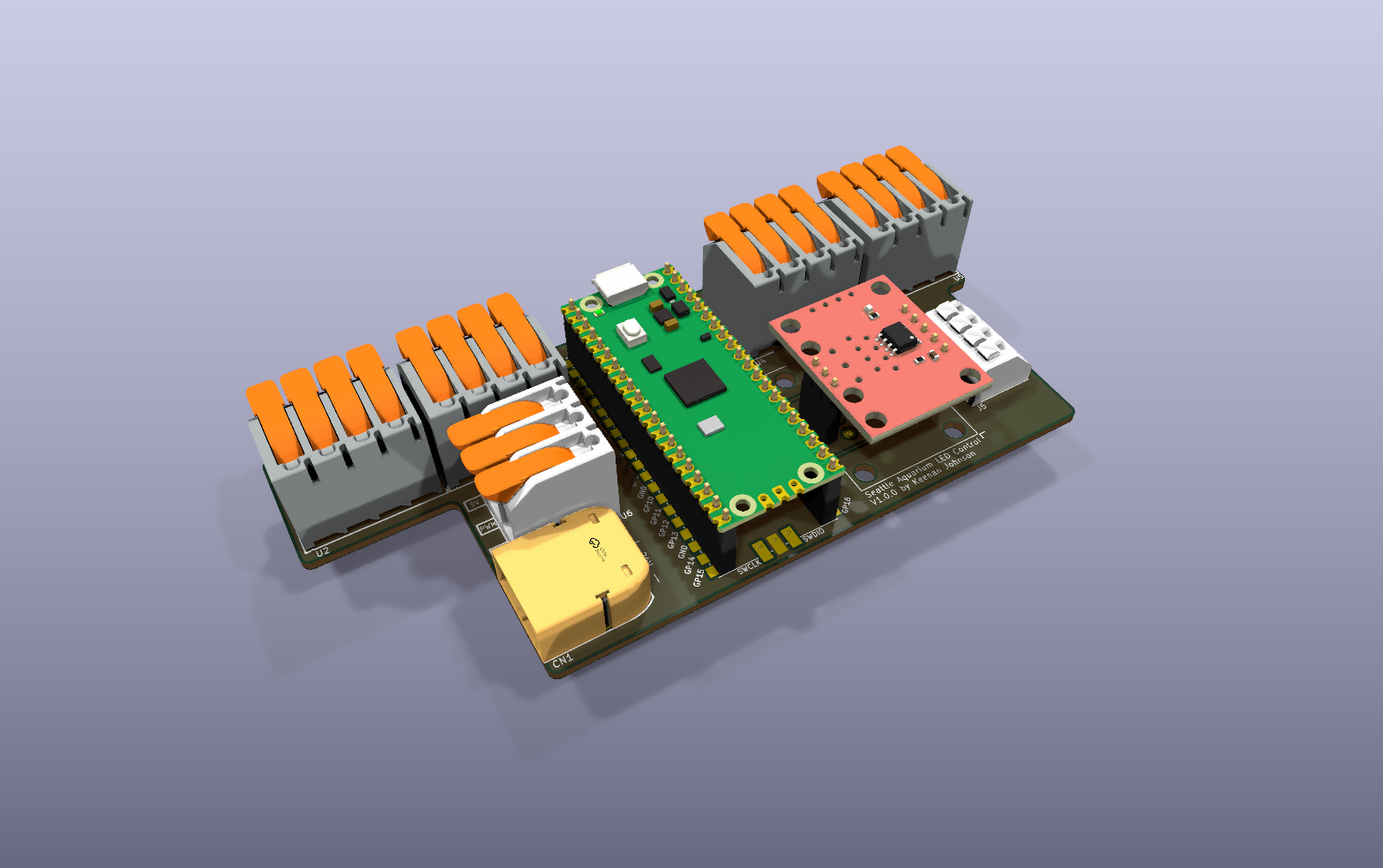

The 3D views come from scripts/render.py, which drives KiCad's ray tracer (kicad-cli pcb render) and stitches the turntable frames with ffmpeg. The same script exports the schematic below. The Renders workflow re-runs it, and the connector overview, whenever the board or schematic changes and commits the results to docs/.
Rendered automatically by kicad-callouts via GitHub Actions whenever the board changes.
Main components on the Deepsea light pcba
Deepsea light pcba bill of materials (BOM)
11 components, 7 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 4 | 2604-1104 | CONN-TH_2604-1104 | U2, U3, U4, U5 |
| 1 | 2604-1103 | CONN-TH_2604-1103 | U6 |
| 1 | XT60PW-M | CONN-TH_XT60PW-M | CN1 |
| 2 | PinSocket_1x20_P2.54mm | Socket_1x20_P2.54mm_NoPads | J1, J2 |
| 1 | PinSocket_1x05_P2.54mm | Socket_1x05_P2.54mm_NoPads | J3 |
| 1 | PinSocket_1x03_P2.54mm | Socket_1x03_P2.54mm_NoPads | J4 |
| 1 | 250-104 | CONN-TH_4P-P3.50_250-104 | J5 |
Deepsea light pcba design files
The KiCad project lives in the keenanjohnson/deepsea-light-pcba repository on GitHub; these links point at the commit this page was built from.
- Layoutdeepsea-light-pcb.kicad_pcb
- Schematicdeepsea-light-pcb.kicad_sch
Deepsea light pcba: common questions
How big is the Deepsea light pcba PCB?
The Deepsea light pcba measures 124.5 × 56.8 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Deepsea light pcba?
11 components, from 7 distinct parts. The full bill of materials is listed on this page.
Where can I download the Deepsea light pcba design files?
From the keenanjohnson/deepsea-light-pcba repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Deepsea light pcba design in my own project?
The repository has no license, so all rights stay with keenanjohnson. Use it as a reference, and ask the author before reusing the design.
