Kevins cave kludges is an open source PCB design by kennykb, published on GitHub under the MIT license. It is a 2-layer board measuring 35 × 35 mm, with 1 components from 1 distinct parts.
From the project
Supporting materials for Kludges from Kevin's Cave.

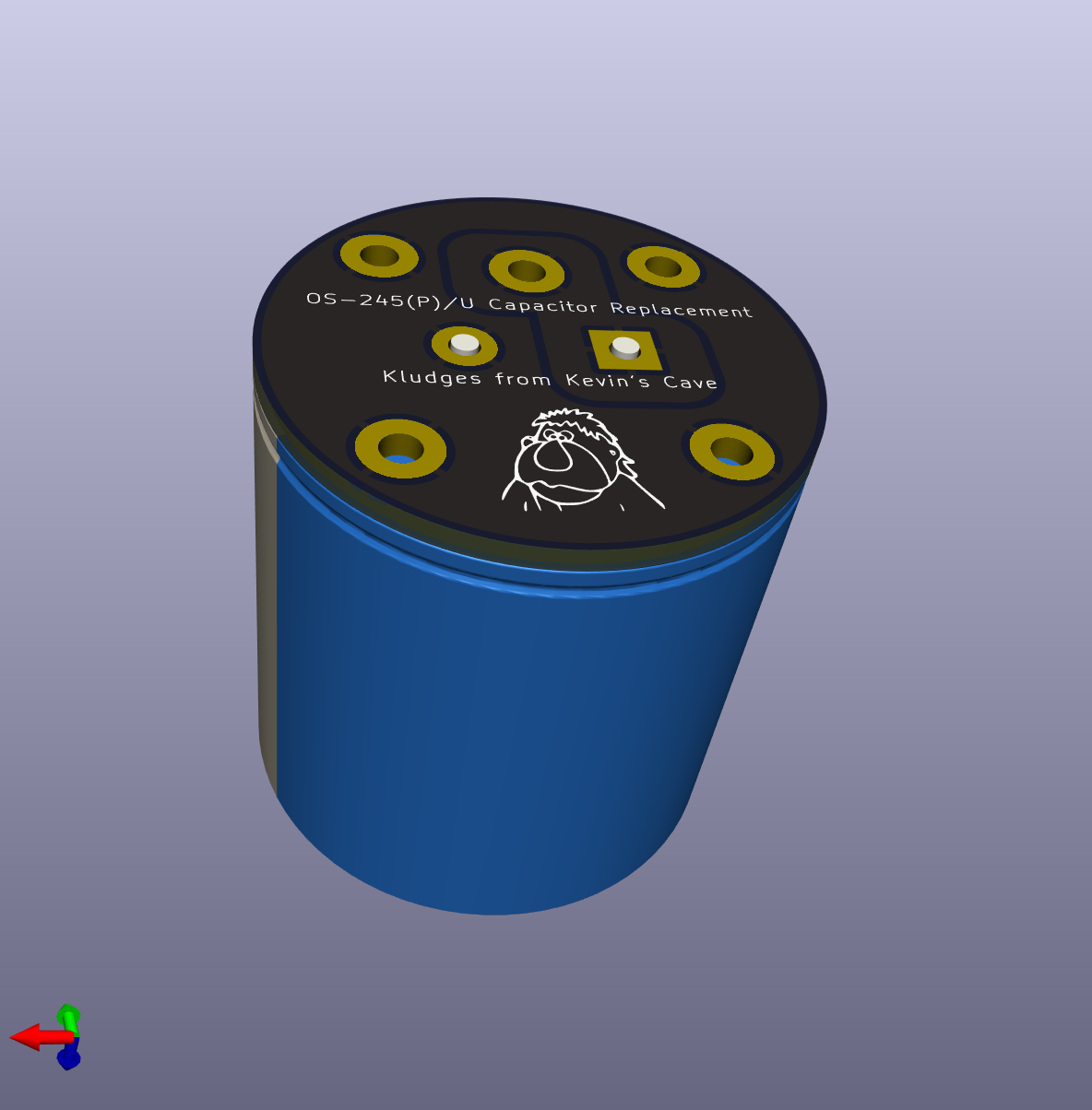

This folder contains the files that were used to design the adapter to mount a modern capacitor in place of a failed one.
Video link: [https://youtu.be/u-VB3HTjkvM]
Kevins cave kludges bill of materials (BOM)
1 components, 1 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 18000 µF Cornell Dubilier Knowles | CP_Radial_D35.0mm_P10.00mm_SnapIn | C1 |
Kevins cave kludges design files
The KiCad project lives in the kennykb/kevins-cave-kludges repository on GitHub; these links point at the commit this page was built from.
Kevins cave kludges: common questions
How big is the Kevins cave kludges PCB?
The Kevins cave kludges measures 35 × 35 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Kevins cave kludges?
1 components, from 1 distinct parts. The full bill of materials is listed on this page.
Where can I download the Kevins cave kludges design files?
From the kennykb/kevins-cave-kludges repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Kevins cave kludges design in my own project?
Yes, under the terms of its MIT license, which kennykb chose for the repository.
