About the Spaceghostusb3debug PCB
Spaceghostusb3debug is an open source PCB design by kliment, published on GitHub. It is a 4-layer board measuring 44.5 × 25.5 mm, with 2 components from 1 distinct parts.
From the project

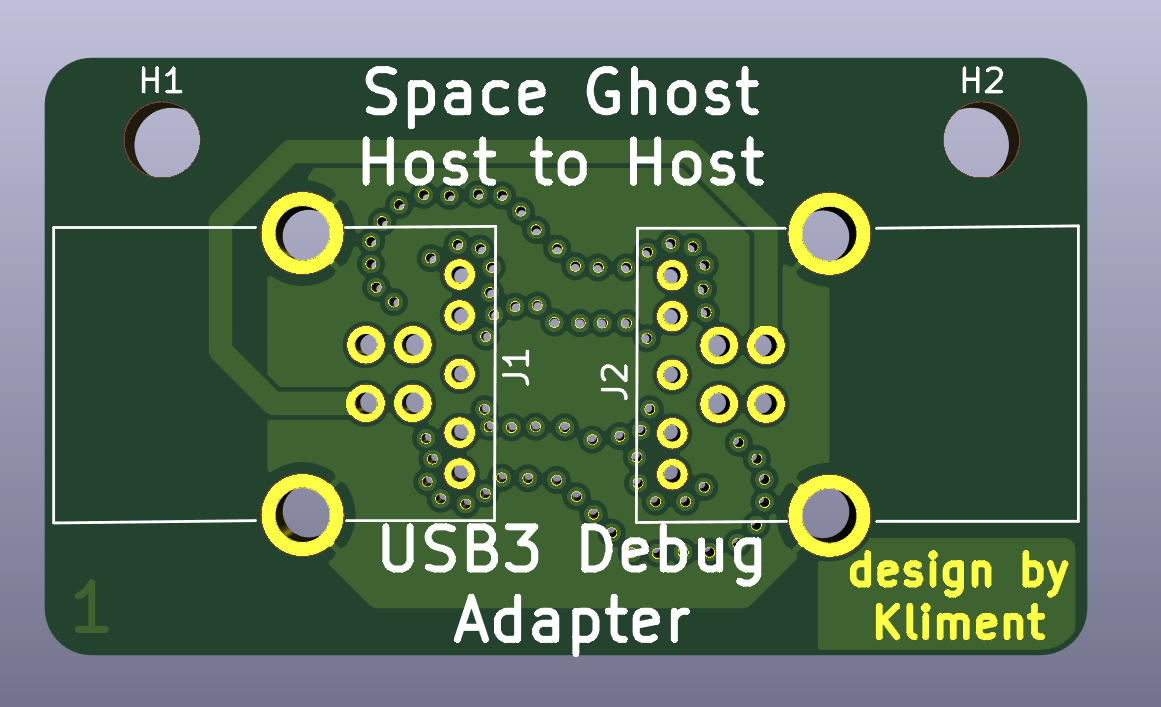

An adapter that converts two standard USB3 A-B cables into a USB3 host to host debug cable
Spaceghostusb3debug bill of materials (BOM)
2 components, 1 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | USB3_B | USB3-TypeB-U235-091N-4BLRC16-2-5 | J1, J2 |
Spaceghostusb3debug design files
The KiCad project lives in the kliment/spaceghostusb3debug repository on GitHub; these links point at the commit this page was built from.
- Layoutusb3debug.kicad_pcb
Spaceghostusb3debug: common questions
How big is the Spaceghostusb3debug PCB?
The Spaceghostusb3debug measures 44.5 × 25.5 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Spaceghostusb3debug?
2 components, from 1 distinct parts. The full bill of materials is listed on this page.
Where can I download the Spaceghostusb3debug design files?
From the kliment/spaceghostusb3debug repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Spaceghostusb3debug design in my own project?
The repository has no license, so all rights stay with kliment. Use it as a reference, and ask the author before reusing the design.
