Micront-SE30
About the Micront-SE30 PCB

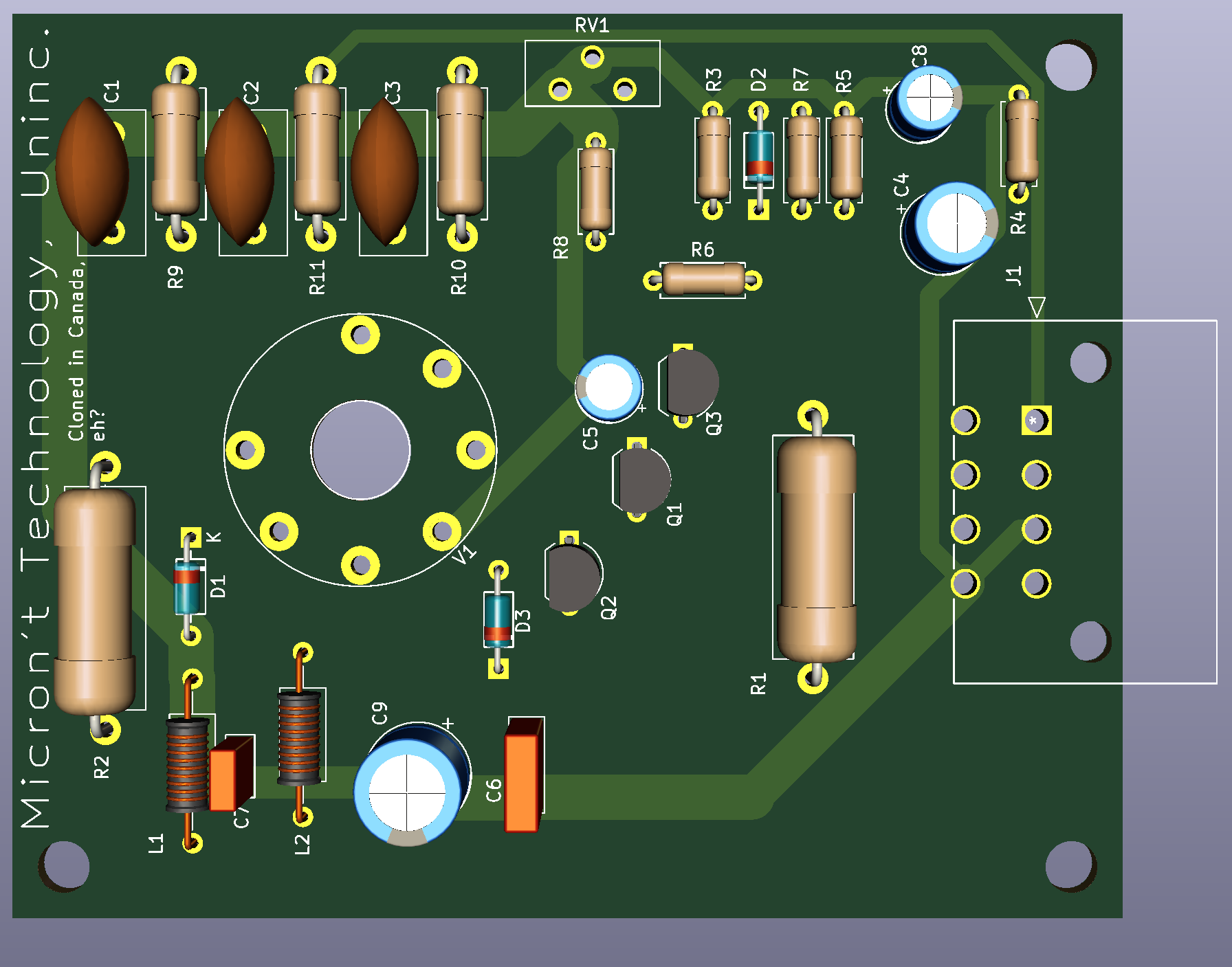

Micront-SE30 is an open source PCB design by kvanderlaag, published on GitHub under the MIT license. It is a 2-layer board measuring 85.7 × 69.9 mm, with 31 components from 22 distinct parts.
By type, the board carries 11 resistors, 9 capacitors, 3 transistors, 3 diodes, 2 inductors and 1 connector.
From the project
Micron XCEED CRT yoke board for internal greyscale on the Macintosh SE/30
Micron XCEED CRT yoke board for internal greyscale on the Macintosh SE/30
If you've miraculously stumbled across one (or two) of the assorted Micron SE/30 PDS video cards which have the connector for internal greyscale output, the piece you may be missing is the board which slaps onto the back of the CRT to let it run greyscale rather than black and white. (Also the associated adapter harness.)
Micront-SE30 bill of materials (BOM)
31 components, 22 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 2N5550TFR | TO-92_Inline_Wide | Q1, Q2 |
| 1 | PN2222A | TO-92_Inline_Wide | Q3 |
| 1 | Molex, 8P RA | Molex | J1 |
| 1 | 200R | Trimmer_Res_Amphenol | RV1 |
| 1 | Tube Socket | Tube_Socket_China | V1 |
| 3 | 1N914 | D_DO-35_SOD27_P7.62mm_Horizontal | D1, D2, D3 |
| 2 | 27uH | L_Axial_L7.0mm_D3.3mm_P12.70mm_Horizontal_Fastron_MICC | L1, L2 |
| 3 | 0.01uF 1KV | C_Disc_D11.0mm_W5.0mm_P7.50mm | C1, C2, C3 |
| 1 | 10uF 50V | CP_Radial_D6.3mm_P2.50mm | C4 |
| 1 | 47uF 10V | CP_Radial_D5.0mm_P2.00mm | C5 |
| 1 | 0.01uF 100V | C_Rect_L7.2mm_W2.5mm_P5.00mm_FKS2_FKP2_MKS2_MKP2 | C6 |
| 1 | 0.1uF 25V | C_Rect_L4.6mm_W2.0mm_P2.50mm_MKS02_FKP02 | C7 |
| 1 | 100uF 16V | CP_Radial_D5.0mm_P2.00mm | C8 |
| 1 | 100uF 63V | CP_Radial_D8.0mm_P3.50mm | C9 |
| 2 | 1K 2W | R_Axial_DIN0617_L17.0mm_D6.0mm_P20.32mm_Horizontal | R1, R2 |
| 1 | 75R 1/4W | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R3 |
| 1 | 300R 1/4W | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R4 |
| 1 | 56R 1/4W | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R5 |
| 1 | 200R 1/4W | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R6 |
| 1 | 12K 1/4W | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R7 |
Show 2 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 1.5K 1/4W | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R8 |
| 3 | 100K 1/2W | R_Axial_DIN0411_L9.9mm_D3.6mm_P12.70mm_Horizontal | R9, R10, R11 |
Micront-SE30 design files
The KiCad project lives in the kvanderlaag/Micront-SE30 repository on GitHub; these links point at the commit this page was built from.
- LayoutSE30-Grayscale.kicad_pcb
Micront-SE30: common questions
How big is the Micront-SE30 PCB?
The Micront-SE30 measures 85.7 × 69.9 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Micront-SE30?
31 components, from 22 distinct parts. The full bill of materials is listed on this page.
Where can I download the Micront-SE30 design files?
From the kvanderlaag/Micront-SE30 repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Micront-SE30 design in my own project?
Yes, under the terms of its MIT license, which kvanderlaag chose for the repository.
