Pico2ROMEmu
About the Pico2ROMEmu PCB
Pico2ROMEmu is an open source PCB design by kyo-ta04, published on GitHub under the MIT license. It is a 2-layer board measuring 24.8 × 52.7 mm, with 16 components from 11 distinct parts.
By type, the board carries 7 connectors, 6 resistors, 2 LEDs and 1 transistor.
From the project
Pico2ROMEmu PCB

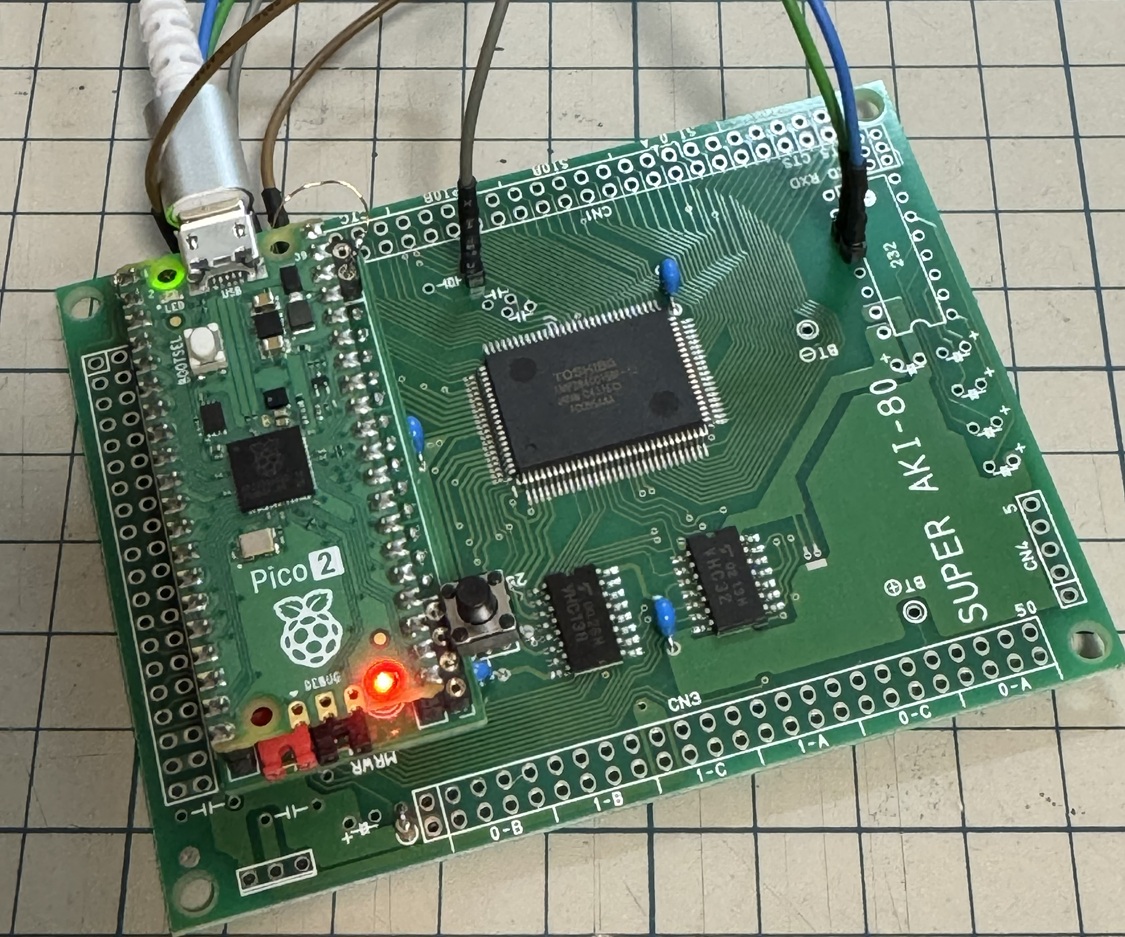

Pico2ROMEmu PCB This is a KiCad project for a Pico2ROMEmu ROM emulator. For more information, please see Pico2ROMEmu. - KiCad Version: 9.0.5 - License: MIT - Includes: Schematic, PCB layout, BOM, Gerber files
Pico2ROMEmu bill of materials (BOM)
16 components, 11 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 2SC1815 | TO-92_Inline | Q1 |
| 1 | M27C256B-15F1 27C256 DIP28 Socket | DIP-28_W15.24mm_Socket | CN1 |
| 2 | CONN_01X20 Conn_01x20 | PinSocket_1x20_P2.54mm_Vertical | CN2, CN3 |
| 2 | CONN_01X04 Conn_01x04 | PinHeader_1x04_P2.54mm_Horizontal | J1, J3 |
| 1 | CONN_01X02 Conn_01x02 | PinHeader_1x02_P2.54mm_Vertical | J2 |
| 1 | CONN_01X04 Conn_01x04 | PinHeader_1x04_P2.54mm_Vertical | J4 |
| 1 | LED_Small | LED_D3.0mm | LED1 |
| 1 | LED_Small | LED_D3.0mm_Clear | LED2 |
| 1 | 10K 10k | R_Axial_DIN0204_L3.6mm_D1.6mm_P5.08mm_Horizontal | R1 |
| 1 | 100 | R_Axial_DIN0204_L3.6mm_D1.6mm_P5.08mm_Horizontal | R2 |
| 4 | 1k | R_Axial_DIN0204_L3.6mm_D1.6mm_P5.08mm_Horizontal | R3, R4, R5, R6 |
Pico2ROMEmu design files
The KiCad project lives in the kyo-ta04/Pico2ROMEmu_PCB repository on GitHub; these links point at the commit this page was built from.
- LayoutPico2ROMEmu_PCB.kicad_pcb
- SchematicPico2ROMEmu_PCB.kicad_sch
- BOMproduction/bom.csv
Pico2ROMEmu: common questions
How big is the Pico2ROMEmu PCB?
The Pico2ROMEmu measures 24.8 × 52.7 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Pico2ROMEmu?
16 components, from 11 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Pico2ROMEmu design files?
From the kyo-ta04/Pico2ROMEmu_PCB repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Pico2ROMEmu design in my own project?
Yes, under the terms of its MIT license, which kyo-ta04 chose for the repository.
