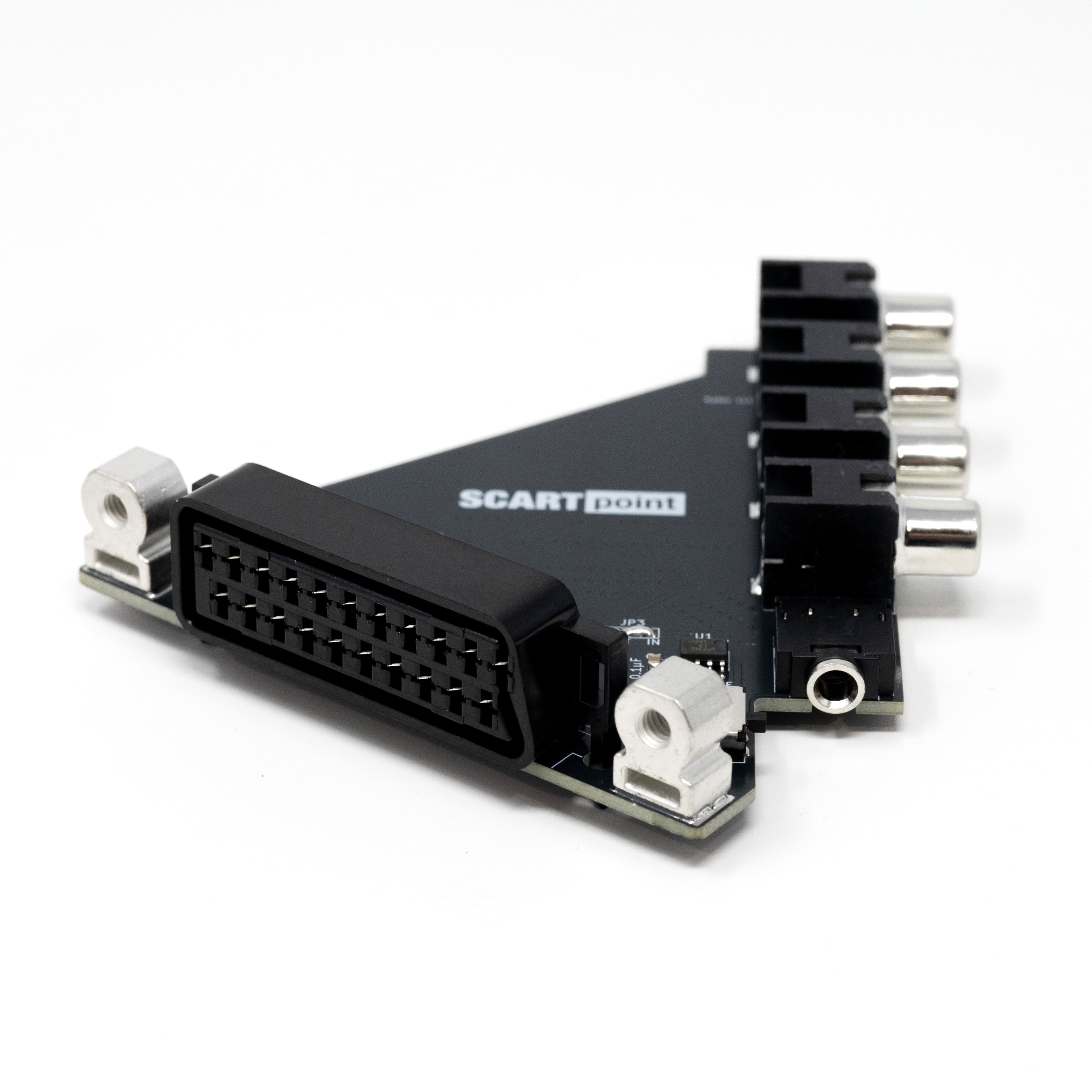

3E-300009 SCARTpoint lower
About the 3E-300009 SCARTpoint lower PCB
3E-300009 SCARTpoint lower is an open source PCB design by KytorIndustries, published on GitHub. It is a 2-layer board measuring 87.4 × 103.6 mm, with 13 components from 8 distinct parts.
Other key parts include the LM1881M_NOPB. By type, the board carries 8 connectors, 2 capacitors, 1 IC, 1 switch and 1 resistor.
From the project
The SCARTpoint adapter allows a direct SCART connection to the Extron CrossPoint matrix switch.
The SCARTpoint adapter allows a direct SCART connection to the Extron CrossPoint matrix switch. There are two geometries, an "upper" (3E-300009) and a "lower" (3E-300010), they need to be installed in an alternating pattern, two of the same geometry cannot be installed adjacently. Both geometries are configurable as inputs (to Extron) or outputs (from Extron) using solder jumpers and the proper components.
Main components on the 3E-300009 SCARTpoint lower
3E-300009 SCARTpoint lower bill of materials (BOM)
13 components, 8 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LM1881M_NOPB | LM1881M | U1 |
| 4 | AV1-8.4-9A | 1-RCA 972 (AV1-8.4-91) | J1, J2, J3, J4 |
| 1 | ~ | Female_Stereo_3.5mm_SJ1-3525N | J5 |
| 1 | ~ | Female_SCART_Reversed_(90) | J6 |
| 2 | ~ | PEM M4 Post SMTRAM4-9-7ET | P1, P2 |
| 1 | JS202011AQN | JS202011AQN | SW1 |
| 2 | 100NF 0.1µF Various | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C1, C2 |
| 1 | 470OHM 470R Various | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R1 |
3E-300009 SCARTpoint lower design files
The KiCad project lives in the KytorIndustries/SCARTpoint repository on GitHub; these links point at the commit this page was built from.
3E-300009 SCARTpoint lower: common questions
How big is the 3E-300009 SCARTpoint lower PCB?
The 3E-300009 SCARTpoint lower measures 87.4 × 103.6 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the 3E-300009 SCARTpoint lower?
13 components, from 8 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the 3E-300009 SCARTpoint lower design files?
From the KytorIndustries/SCARTpoint repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the 3E-300009 SCARTpoint lower design in my own project?
The repository has no license, so all rights stay with KytorIndustries. Use it as a reference, and ask the author before reusing the design.
