PTPE
About the PTPE PCB
PTPE is an open source PCB design by Lazr1026, published on GitHub. It is a 2-layer board measuring 56.2 × 71.1 mm, with 2 components from 1 distinct parts.
From the project

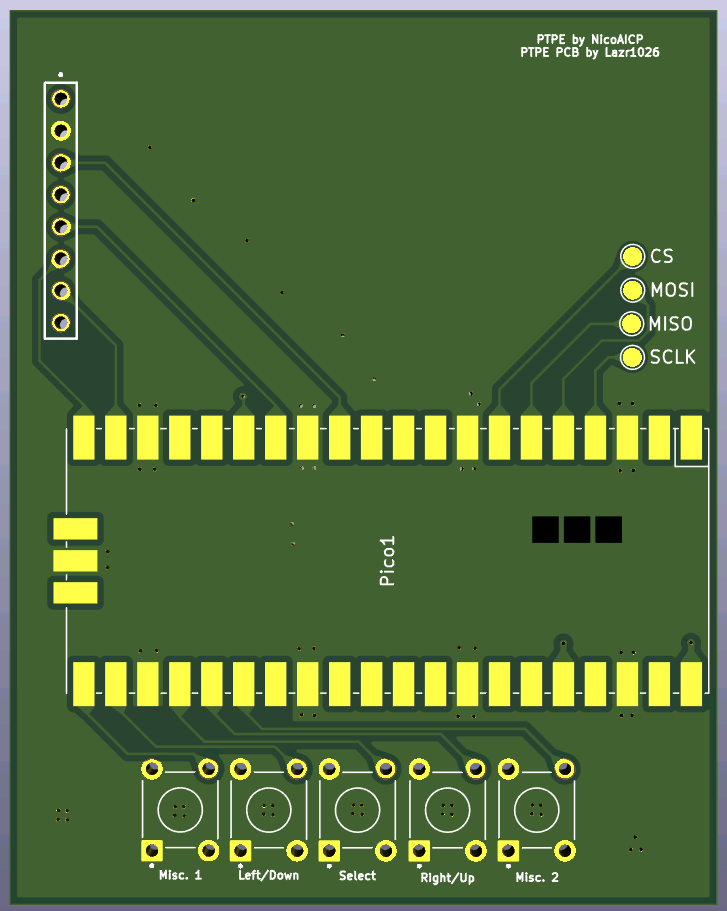

PCB for the Pico ToyPad Emulator
PTPE bill of materials (BOM)
2 components, 1 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 1825910-6 | SW_1825910-6-4 | Misc1, Misc2 |
PTPE design files
The KiCad project lives in the Lazr1026/PTPE_PCB repository on GitHub; these links point at the commit this page was built from.
- Layoutptpe_pcb.kicad_pcb
- Schematicptpe_pcb.kicad_sch
PTPE: common questions
How big is the PTPE PCB?
The PTPE measures 56.2 × 71.1 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the PTPE?
2 components, from 1 distinct parts. The full bill of materials is listed on this page.
Where can I download the PTPE design files?
From the Lazr1026/PTPE_PCB repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the PTPE design in my own project?
The repository has no license, so all rights stay with Lazr1026. Use it as a reference, and ask the author before reusing the design.
