Freeform-Planner
About the Freeform-Planner PCB
Freeform-Planner is an open source PCB design by lbarbisch, published on GitHub under the GPL-3.0 license. It is a board, with 10 components from 4 distinct parts.
By type, the board carries 4 resistors, 2 transistors, 2 diodes and 2 capacitors.
From the project
Rudimentary 3D layout software to plan freeform electronic installations

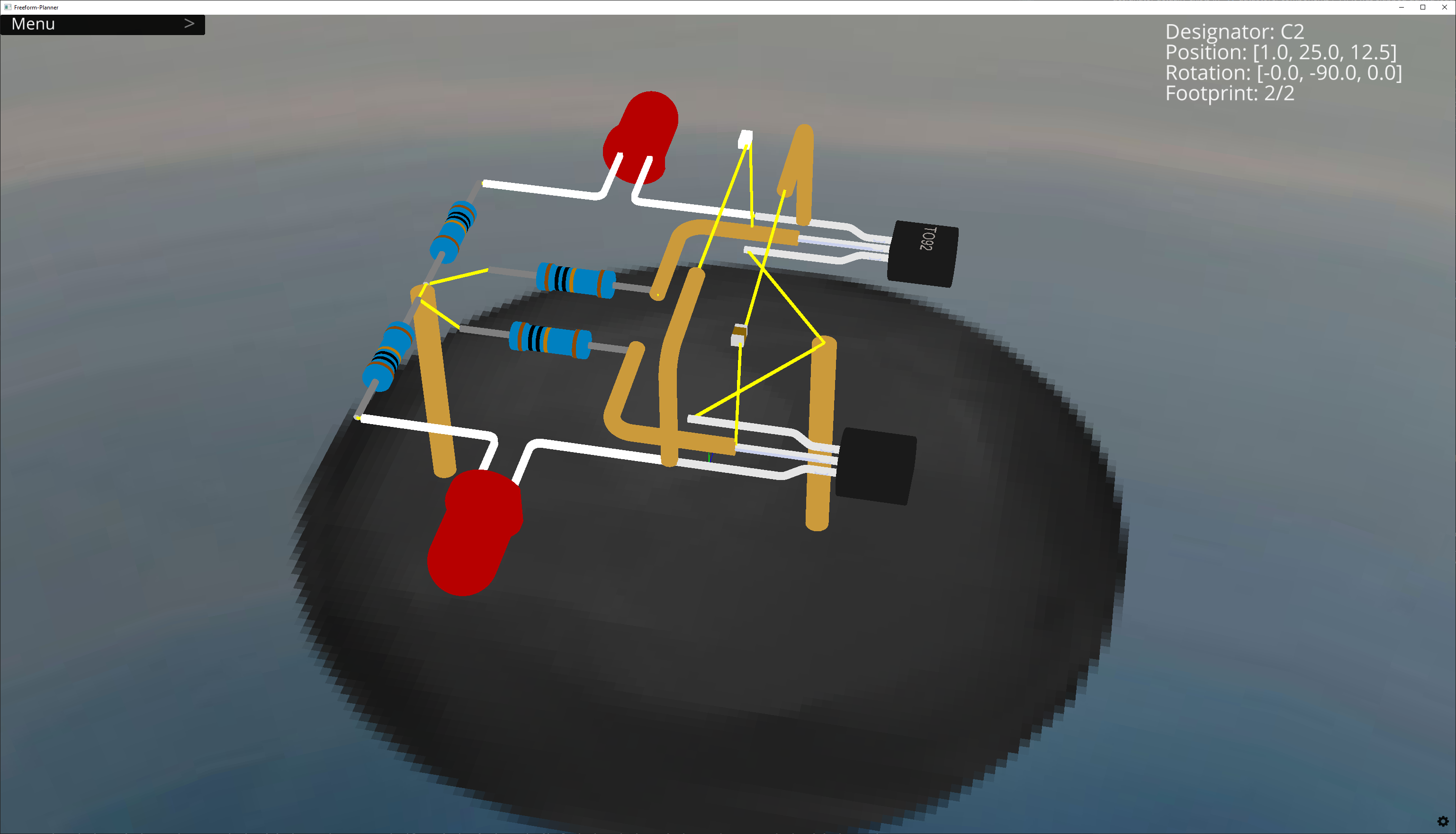

Freeform-Planner is an interactive 3D layout tool for planning freeform/point-to-point electronic circuits. Draw a schematic in KiCad with the included library, generate a netlist, and place your components in 3D space. All connections are visualized as airwires.
Use File ▸ Open to load either: - a .net KiCad netlist — creates a fresh layout with all components stacked at the origin, or - a .ffps project file — restores a previously saved layout with positions intact.
Freeform-Planner bill of materials (BOM)
10 components, 4 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | BC547 | Q1, Q2 | |
| 2 | LED5MM | LED_D5.0mm_IRGrey | D1, D2 |
| 2 | CAP | C1, C2 | |
| 4 | RES | R1, R2, R3, R4 |
Freeform-Planner design files
The KiCad project lives in the lbarbisch/Freeform-Planner repository on GitHub; these links point at the commit this page was built from.
Freeform-Planner: common questions
How many components are on the Freeform-Planner?
10 components, from 4 distinct parts. The full bill of materials is listed on this page.
Where can I download the Freeform-Planner design files?
From the lbarbisch/Freeform-Planner repository on GitHub, which has the schematic and a netlist; the links under Design files point to each one.
Can I use the Freeform-Planner design in my own project?
Yes, under the terms of its GPL-3.0 license, which lbarbisch chose for the repository.
