Pi400VGA is an open source PCB design by llegoff, published on GitHub under the CERN-OHL-1.2 license. It is a 2-layer board measuring 51 × 20 mm, with 29 components from 14 distinct parts.
By type, the board carries 6 resistors, 4 capacitors and 3 connectors.
From the project

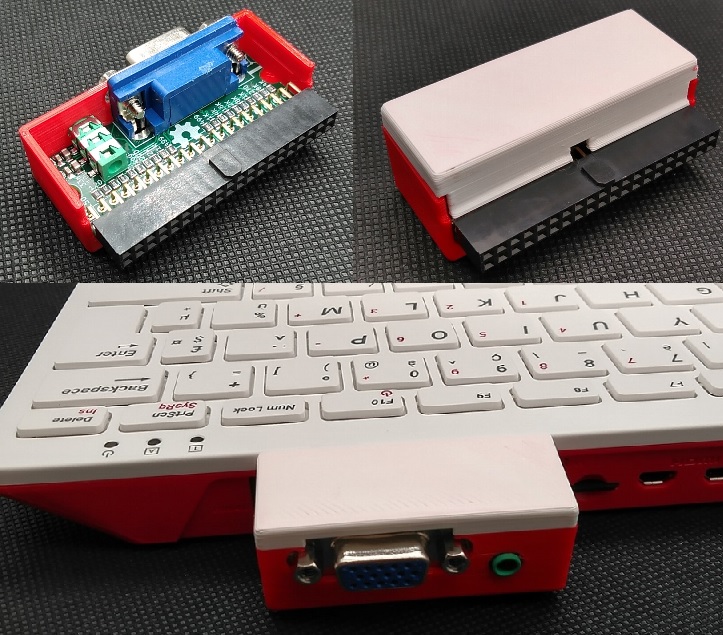

VGA interface for Raspberry pi 400
:warning: for retrogaming on CRT see Scart/VGA interface : https://github.com/llegoff/Pi400RGB
for pi zero see https://github.com/llegoff/VGA_Zero
see https://www.raspberrypi.org/documentation/hardware/raspberrypi/dpi/README.md
only the necessary bits of the dpi are redirected to the 40-pin GPIO port, with the 'gpio=2-8,12-17,20-24=a2' line on config.txt
dtoverlay=vc4-kms-dpi-generic,rgb565-padhi dtparam=hactive=800,hfp=40,hsync=128,hbp=88 dtparam=vactive=600,vfp=1,vsync=4,vbp=23 dtparam=clock-frequency=40000000 # Resolution@freq hactive hfp hsync hbp vactive vfp vsync vbp clock-frequency…
Pi400VGA bill of materials (BOM)
29 components, 14 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | VGA | DB_15F-VGA | J1 |
| 1 | CONN_02X20 | Socket_Strip_Straight_2x20_Pitch2.54mm | J2 |
| 1 | AUDIO | jack3.5smd | J3 |
| 3 | 8K | R_0805 | RB3, RG3, RR3 |
| 3 | 4K | R_0805 | RB4, RG4, RR4 |
| 3 | 2K | R_0805 | RB5, RG5, RR5 |
| 3 | 1K | R_0805 | RB6, RG6, RR6 |
| 3 | 499 | R_0805 | RB7, RG7, RR7 |
| 1 | 16K | R_0805 | RG2 |
| 2 | 33n | C_0805 | C1, C3 |
| 2 | 10u | C_0805 | C2, C4 |
| 2 | 270 | R_0805 | R1, R3 |
| 2 | 150 | R_0805 | R2, R4 |
| 2 | 120 | R_0805 | R5, R6 |
