Alchitry element
About the Alchitry element PCB
Alchitry element is an open source PCB design by Lopfi, published on GitHub under the MIT license. It is a 2-layer board measuring 65 × 45 mm, with 1 components from 1 distinct parts.
From the project
A KiCad library for shields for alchitry fpga boards
A KiCad library for shields for Alchitry fpga boards.
This library is made for KiCad 6 and above.

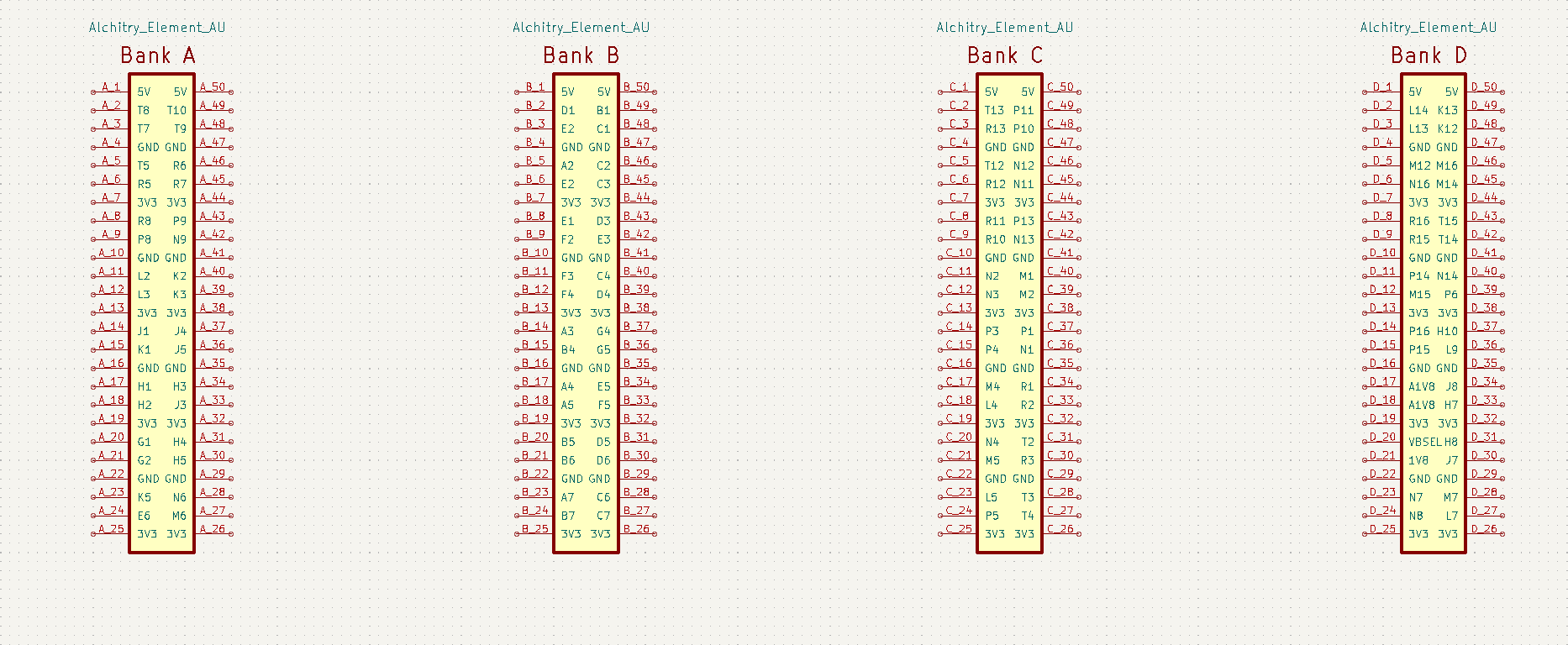

This library contains the following symbols:
The Pin names (inside the box) correspond to the actual hardware pins of the FPGA's. If you are using Alchitry Lab's or have a constraints file with the pin numbers according to Alchitry just look at the pin numbers (above pin).
Alchitry element bill of materials (BOM)
1 components, 1 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Alchitry_Element_AU | Element | B1 |
Alchitry element design files
The KiCad project lives in the Lopfi/alchitry-element-kicad repository on GitHub; these links point at the commit this page was built from.
Alchitry element: common questions
How big is the Alchitry element PCB?
The Alchitry element measures 65 × 45 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Alchitry element?
1 components, from 1 distinct parts. The full bill of materials is listed on this page.
Where can I download the Alchitry element design files?
From the Lopfi/alchitry-element-kicad repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Alchitry element design in my own project?
Yes, under the terms of its MIT license, which Lopfi chose for the repository.
