About the NandFlex PCB
NandFlex is an open source PCB design by mackieks, published on GitHub under the CERN-OHL-S-2.0 license. It is a 2-layer board measuring 20.3 × 25 mm, with 4 components from 3 distinct parts.
Other key parts include the S34ML02G100TFI000. By type, the board carries 2 capacitors, 1 IC and 1 resistor.
From the project

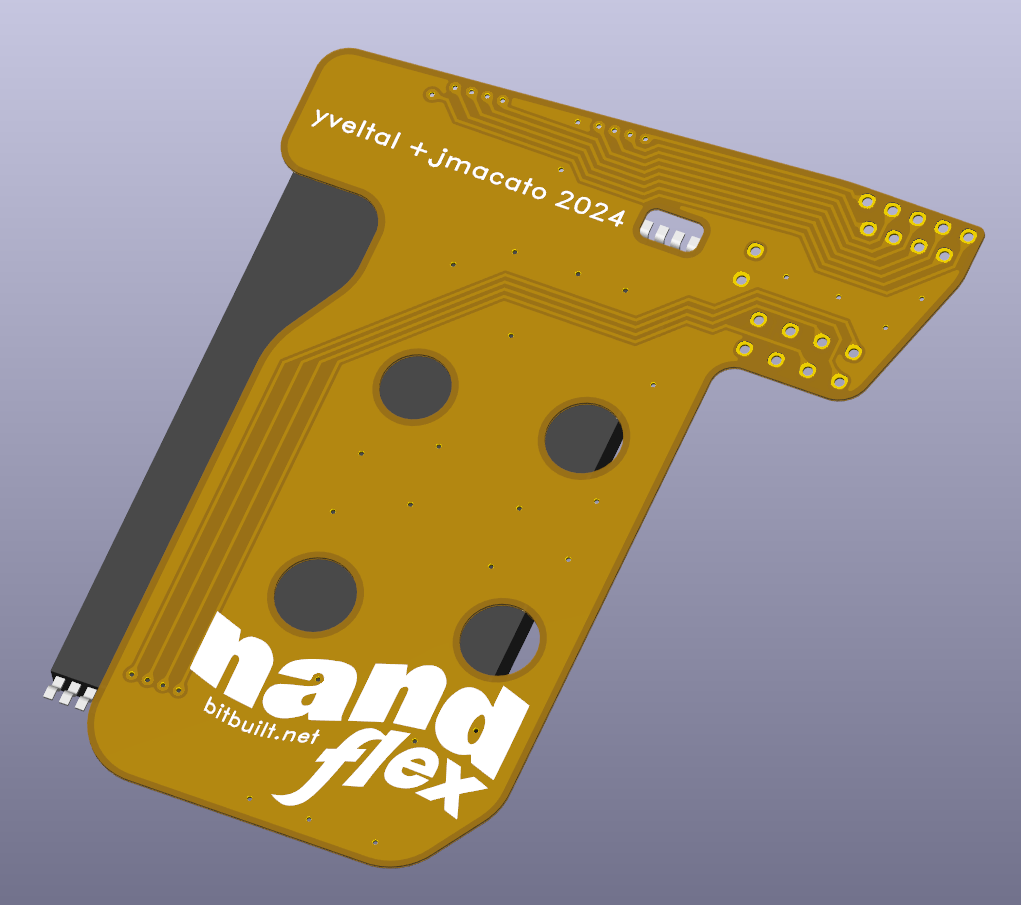

Low-profile NAND relocation FPC for Nintendo Wii
Design is based on Jumar Macato's OmegaFlex and licensed accordingly.
This project is covered under the terms of CERN Open Hardware Licence Version 2 - Strongly Reciprocal. This license mandates that any modifications or re-derivations of this project shall be attributed back under the same license and published as well.
Main components on the NandFlex
NandFlex bill of materials (BOM)
4 components, 3 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | S34ML02G100TFI000 K9F4G08U0B | Wii-TSOP48-trimmed | U1 |
| 2 | 0.1uf | C_0402_1005Metric | C1, C2 |
| 1 | 1K | R_0402_1005Metric | R1 |
NandFlex design files
The KiCad project lives in the mackieks/nandFlex repository on GitHub; these links point at the commit this page was built from.
- LayoutKiCAD/nandFlex.kicad_pcb
- SchematicKiCAD/nandFlex.kicad_sch
NandFlex: common questions
How big is the NandFlex PCB?
The NandFlex measures 20.3 × 25 mm, has 2 copper layers and is 0.11 mm thick.
How many components are on the NandFlex?
4 components, from 3 distinct parts. The full bill of materials is listed on this page.
Where can I download the NandFlex design files?
From the mackieks/nandFlex repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the NandFlex design in my own project?
Yes, under the terms of its CERN-OHL-S-2.0 license, which mackieks chose for the repository.
