Calc is an open source PCB design by makargon, published on GitHub. It is a 2-layer board measuring 100 × 100 mm, with 71 components from 11 distinct parts.
By type, the board carries 39 resistors, 24 transistors and 2 LEDs.
From the project

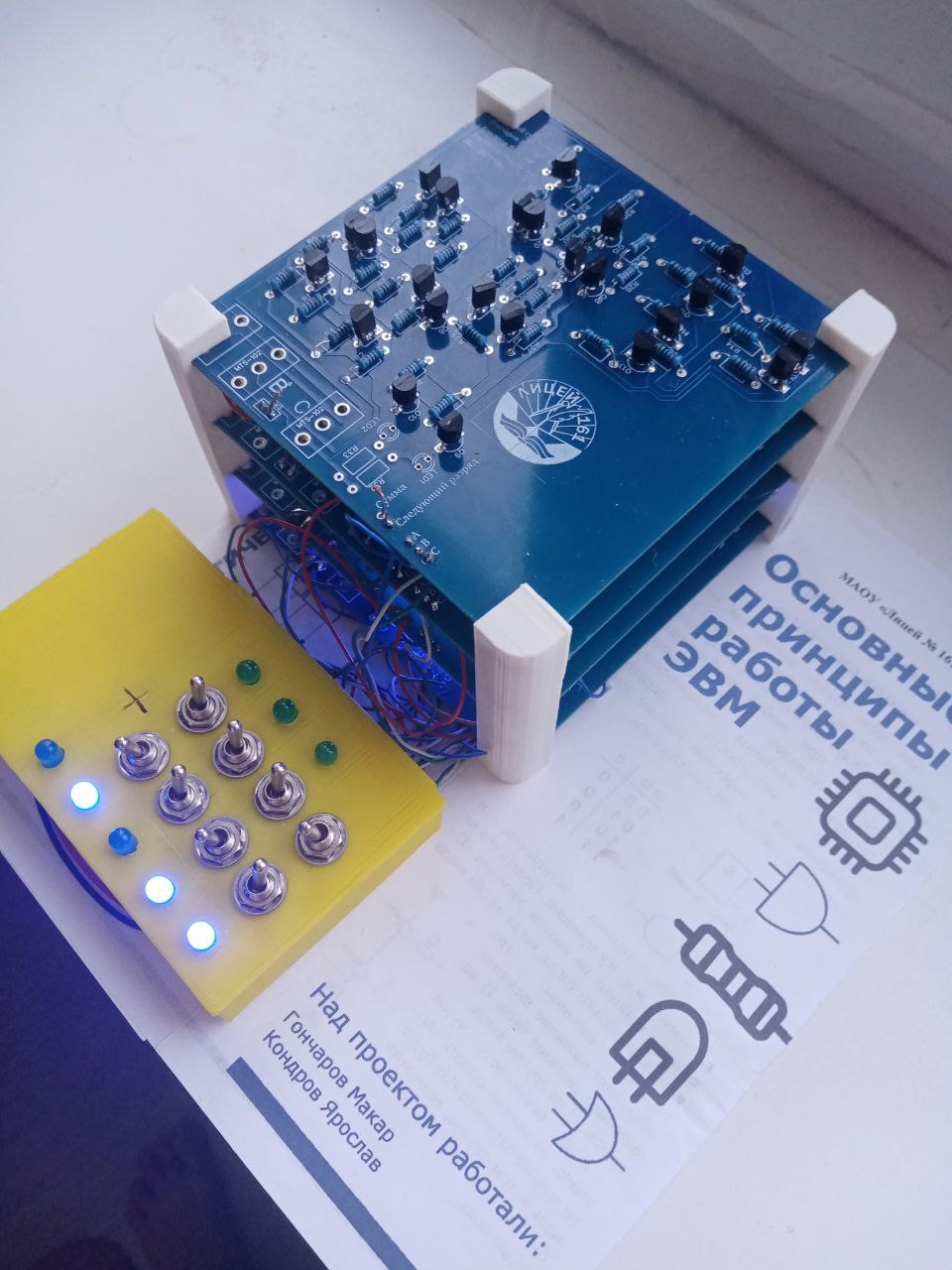

Схема полного сумматора для изучения принципов работы алгебры логики в школе
Выполнено на транзисторах 2N2222 и резисторах по 1k и 10k. Схемы можно подключать последовательно. А так же, для удобства рекомендуется вывести элементы управления и индикации.
Разрабатывалось в EasyEDA, а после экспортировано в KiCAD
Calc bill of materials (BOM)
71 components, 11 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 24 | 2N2222A | TO-92-3_L4.8-W3.7-P2.54-R | Q1, Q2, Q3, Q4, Q5, Q6, Q7, Q8 +16 |
| 1 | Pad_gge23 | Pad_gge23 | Pad_gge23 |
| 1 | Pad_gge41 | Pad_gge41 | Pad_gge41 |
| 1 | Pad_gge140 | Pad_gge140 | Pad_gge140 |
| 1 | Pad_gge167 | Pad_gge167 | Pad_gge167 |
| 1 | Pad_gge194 | Pad_gge194 | Pad_gge194 |
| 1 | 9 | HDR1X2 | V1 |
| 2 | LED_3mm | LED_LED3MM | LED1, LED2 |
| 22 | 10k | RC08 | R1, R2, R5, R6, R7, R8, R11, R12 +14 |
| 15 | 1k | RC08 | R3, R4, R9, R10, R13, R14, R15, R22 +7 |
| 2 | 390 | RC08 | R32, R33 |
