ATAPIHat-SMI
About the ATAPIHat-SMI PCB
ATAPIHat-SMI is an open source PCB design by Manawyrm, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 65 × 56 mm, with 40 components from 12 distinct parts.
By type, the board carries 33 resistors, 2 connectors, 2 capacitors and 1 diode.
From the project

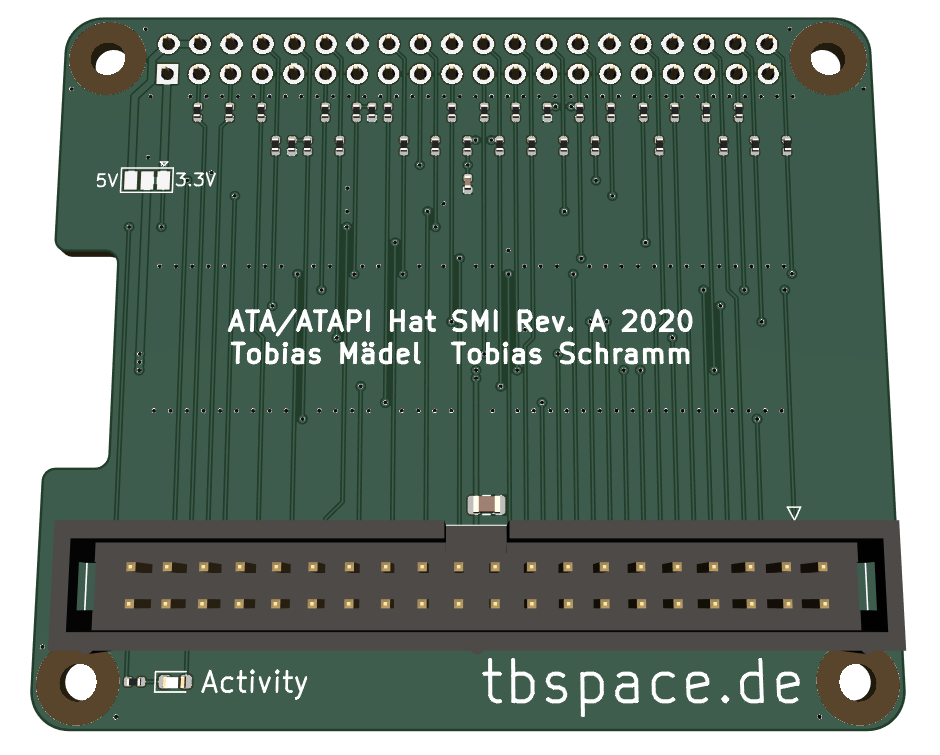

High-speed ATAPIHat for BCM2835 Secondary Memory Interface
ATAPIHat-SMI =============================
This is an experimental adapter PCB for the pata-gpio driver. The pinout was chosen deliberately to support faster SMI and BCM2835 register modes, which are not yet supported in the kernel driver.
Rev.A testboards were ordered but not tested yet. Proceed at your own risk.
Schematic Interactive BOM Bitbanged-GPIO Kernel driver
ATAPIHat-SMI bill of materials (BOM)
40 components, 12 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Pi | PinSocket_2x20_P2.54mm_Vertical | J1 |
| 1 | IDE | IDC-Header_2x20_P2.54mm_Vertical | J2 |
| 2 | ToolingHole | ToolingHole_JLCSMT | H1, H2 |
| 1 | LED | LED_0603_1608Metric | D1 |
| 1 | 100NF 100nF | C_0402_1005Metric | C1 |
| 1 | 22UF 22uF | C_0805_2012Metric | C2 |
| 22 | 33R | R_0402_1005Metric | R1, R2, R4, R5, R6, R9, R10, R11 +14 |
| 2 | 4.7K 4.7k | R_0402_1005Metric | R3, R17 |
| 3 | 75R | R_0402_1005Metric | R7, R8, R20 |
| 3 | 22R | R_0402_1005Metric | R14, R23, R30 |
| 2 | 10K 10k | R_0402_1005Metric | R16, R18 |
| 1 | 5.6K 5.6k | R_0402_1005Metric | R19 |
