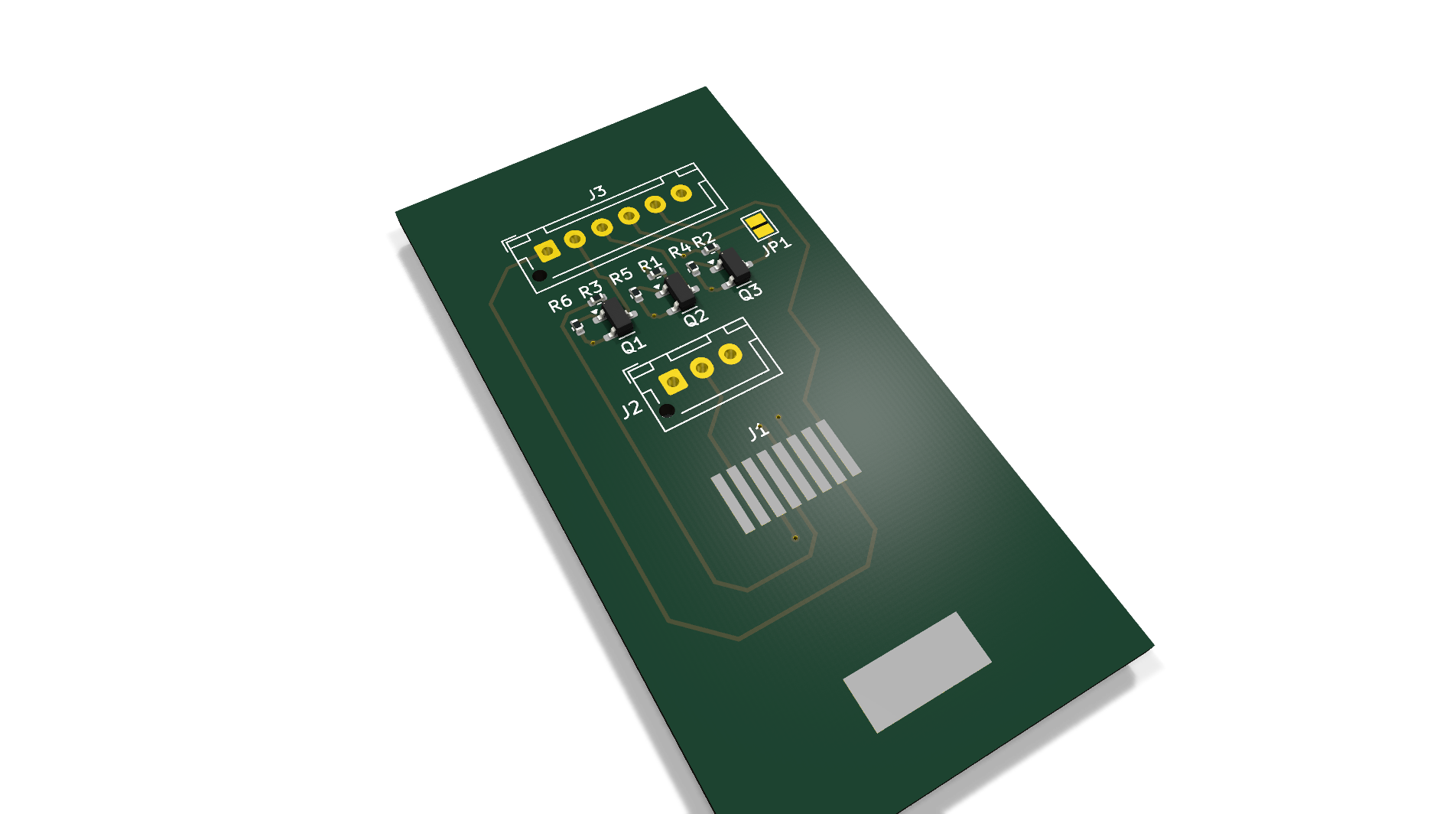

Handheld motio4sim simulator box
About the Handheld motio4sim simulator box PCB
Handheld motio4sim simulator box is an open source PCB design by manhoosbilli1, published on GitHub. It is a 2-layer board measuring 30 × 60 mm, with 13 components from 7 distinct parts.
By type, the board carries 6 resistors, 3 transistors, 3 connectors and 1 jumper.
From the project
specifically designed for handheld1 connects through rj45 to the motion4sim board and has emergency stop and rgb online button
Handheld controller for Motio4sim driving simulator
- Status: Routed - Board size: (unknown) - Layers: 2 - Components: ?
- handheld1motion4simFO41AFC70E184.kicadpro - KiCad project - handheld1motion4simFO41AFC70E184.kicadsch - schematic source - handheld1motion4simFO41AFC70E184.kicadpcb - PCB layout source - reports/schematic.pdf - full schematic (printable) - reports/bom.csv - bill of materials - reports/pcb-top.svg, reports/pcb-bottom.svg - copper artwork - reports/board-stats.json` - KiCad-generated board statistics
Handheld motio4sim simulator box bill of materials (BOM)
13 components, 7 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 3 | AO3400A | SOT-23 | Q1, Q2, Q3 |
| 1 | RJ45 | RJ45_Molex_0855135013_Vertical | J1 |
| 1 | Conn_01x03 | JST_XH_B3B-XH-AM_1x03_P2.50mm_Vertical | J2 |
| 1 | Conn_01x06 | JST_XH_B6B-XH-AM_1x06_P2.50mm_Vertical | J3 |
| 1 | Jumper_2_Open | SolderJumper-2_P1.3mm_Open_Pad1.0x1.5mm | JP1 |
| 3 | 100 | R_0402_1005Metric | R1, R2, R3 |
| 3 | 100k | R_0402_1005Metric | R4, R5, R6 |
Handheld motio4sim simulator box design files
The KiCad project lives in the manhoosbilli1/handheld-motio4sim-simulator-box repository on GitHub; these links point at the commit this page was built from.
Handheld motio4sim simulator box: common questions
How big is the Handheld motio4sim simulator box PCB?
The Handheld motio4sim simulator box measures 30 × 60 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Handheld motio4sim simulator box?
13 components, from 7 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Handheld motio4sim simulator box design files?
From the manhoosbilli1/handheld-motio4sim-simulator-box repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Handheld motio4sim simulator box design in my own project?
The repository has no license, so all rights stay with manhoosbilli1. Use it as a reference, and ask the author before reusing the design.
