Music box
About the Music box PCB

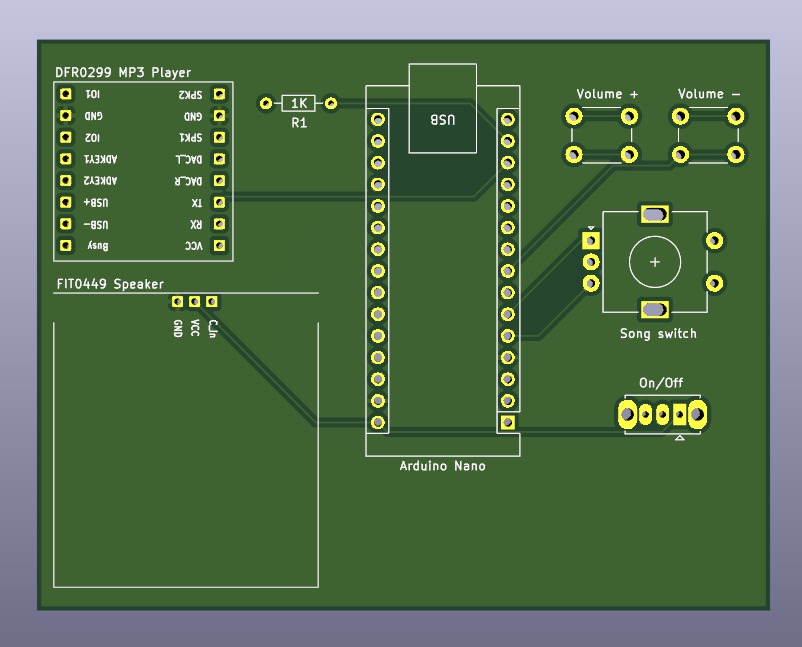

Music box is an open source PCB design by MarkoHnatiuk, published on GitHub. It is a 2-layer board measuring 86 × 67 mm, with 3 components from 3 distinct parts.
Music box bill of materials (BOM)
3 components, 3 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | DFR0299 | DFR0299 | DFR0299 MP3 Player |
| 1 | Speaker | RFSpeaker | FIT0449 Speaker |
| 1 | 1K | R_Axial_DIN0204_L3.6mm_D1.6mm_P7.62mm_Horizontal | R1 |
