LGX
About the LGX PCB
LGX is an open source PCB design by MaximeLambrechts, published on GitHub under the GPL-3.0 license. It is a 4-layer board measuring 45.5 × 32 mm, with 9 components from 9 distinct parts.
By type, the board carries 8 connectors and 1 diode.
From the project

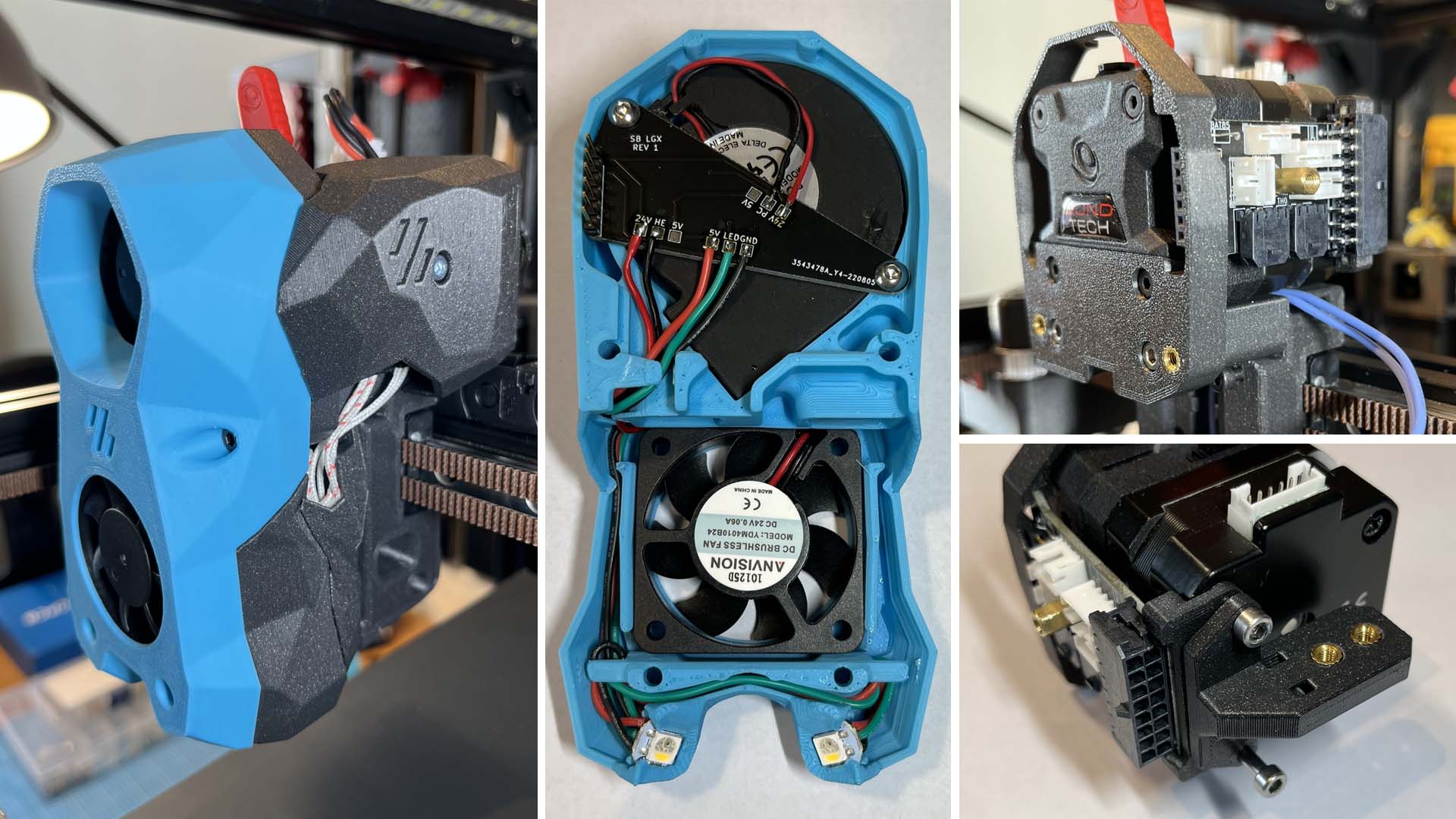

A PCB design for Voron Stealthburner & Bondtech LGX
This mod is a custom 2-piece PCB design, as well as a few printed parts, to make the Bondtech LGX fully compatible with the Voron Stealthburner.
This mod is based on two existing mods, all credits go to them for the initial design :
LGX Stealthburner Mount Remix by Symataris on Thingiverse (link here) Stealthburner toolhead PCB by Hartk1213 (link here)
I really like the 2-piece PCB design by Hartk, with which you just plug the stealthburner in the main board via a connector, without having to deal with cables from the fans and LEDs.
LGX bill of materials (BOM)
9 components, 9 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MCU | Molex_Micro-Fit_3.0_43045-1600 | J1 |
| 1 | Stealthburner | PinSocket_1x06_P2.54mm_Horizontal | J2 |
| 1 | Stepper | JST_PH_B4B-PH-K_1x04_P2.00mm_Vertical | J3 |
| 1 | Probe | JST_PH_B3B-PH-K_1x03_P2.00mm_Vertical | J4 |
| 1 | Aux | JST_PH_B3B-PH-K_1x03_P2.00mm_Vertical | J5 |
| 1 | Fil. Sensor | JST_PH_B3B-PH-K_1x03_P2.00mm_Vertical | J6 |
| 1 | Thermistor | Molex_Micro-Fit_3.0_43650-0200 | J7 |
| 1 | Heater | Molex_Micro-Fit_3.0_43650-0200 | J8 |
| 1 | BAT85 | D_DO-35_SOD27_P7.62mm_Horizontal | D1 |
LGX design files
The KiCad project lives in the MaximeLambrechts/Stealthburner-LGX-PCB repository on GitHub; these links point at the commit this page was built from.
LGX: common questions
How big is the LGX PCB?
The LGX measures 45.5 × 32 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the LGX?
9 components, from 9 distinct parts. The full bill of materials is listed on this page.
Where can I download the LGX design files?
From the MaximeLambrechts/Stealthburner-LGX-PCB repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the LGX design in my own project?
Yes, under the terms of its GPL-3.0 license, which MaximeLambrechts chose for the repository.
