Xbox mainboard
About the Xbox mainboard PCB
Xbox mainboard is an open source PCB design by maximus64, published on GitHub under the WTFPL license. It is a board, with 2 components from 1 distinct parts.
From the project
Reverse engineer xbox mainboard

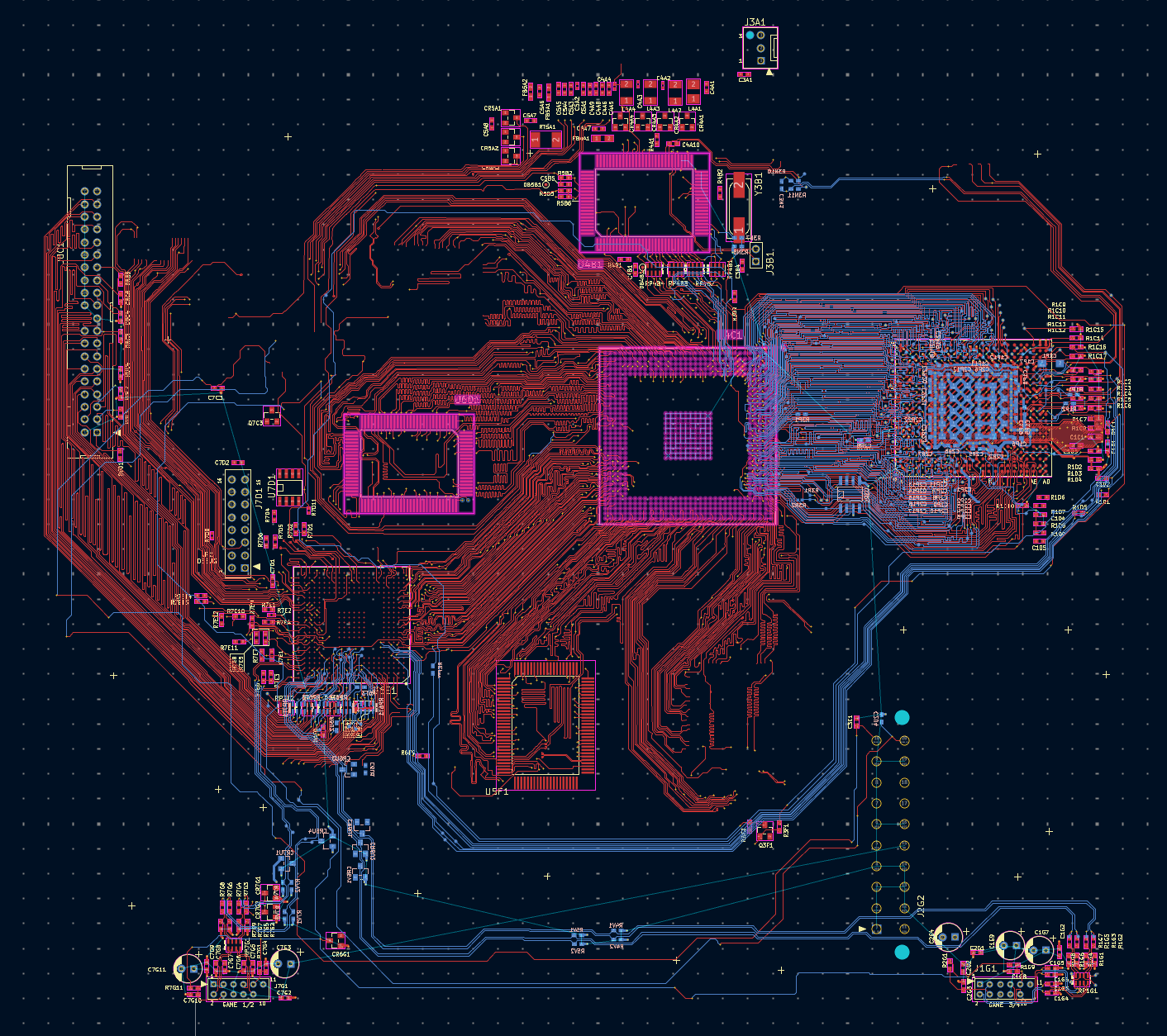

This project is an attempt to recreate the Xbox 1.6 mainboard in Kicad. The first goal is to recreate the layout of the PCB then recover the netlist then draw the schematic.
~~Note: Custom version of Kicad are required to load this project. The official version of Kicad has bitmap surface cache size limmiter and stores bitmap data as base64 encoded data. The patch removes the surface cache size constraint and just stores the image path rather than the store the bitmap data as base64 encoding. This is done to enhance performance so that Kicad can display the board scan overlay and re-trace…
Xbox mainboard bill of materials (BOM)
2 components, 1 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | Conn_01x01 | test | J2, J3 |
Xbox mainboard design files
The KiCad project lives in the maximus64/xbox_mainboard repository on GitHub; these links point at the commit this page was built from.
- Schematickicad/xbox_1.6/xbox_1.6.kicad_sch
Xbox mainboard: common questions
How many components are on the Xbox mainboard?
2 components, from 1 distinct parts. The full bill of materials is listed on this page.
Where can I download the Xbox mainboard design files?
From the maximus64/xbox_mainboard repository on GitHub, which has the schematic; the links under Design files point to each one.
Can I use the Xbox mainboard design in my own project?
Yes, under the terms of its WTFPL license, which maximus64 chose for the repository.
