OpenPin
About the OpenPin PCB
OpenPin is an open source PCB design by MaxMaeder, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 39.2 × 28 mm, with 4 components from 3 distinct parts.
By type, the board carries 2 connectors and 2 resistors.
From the project

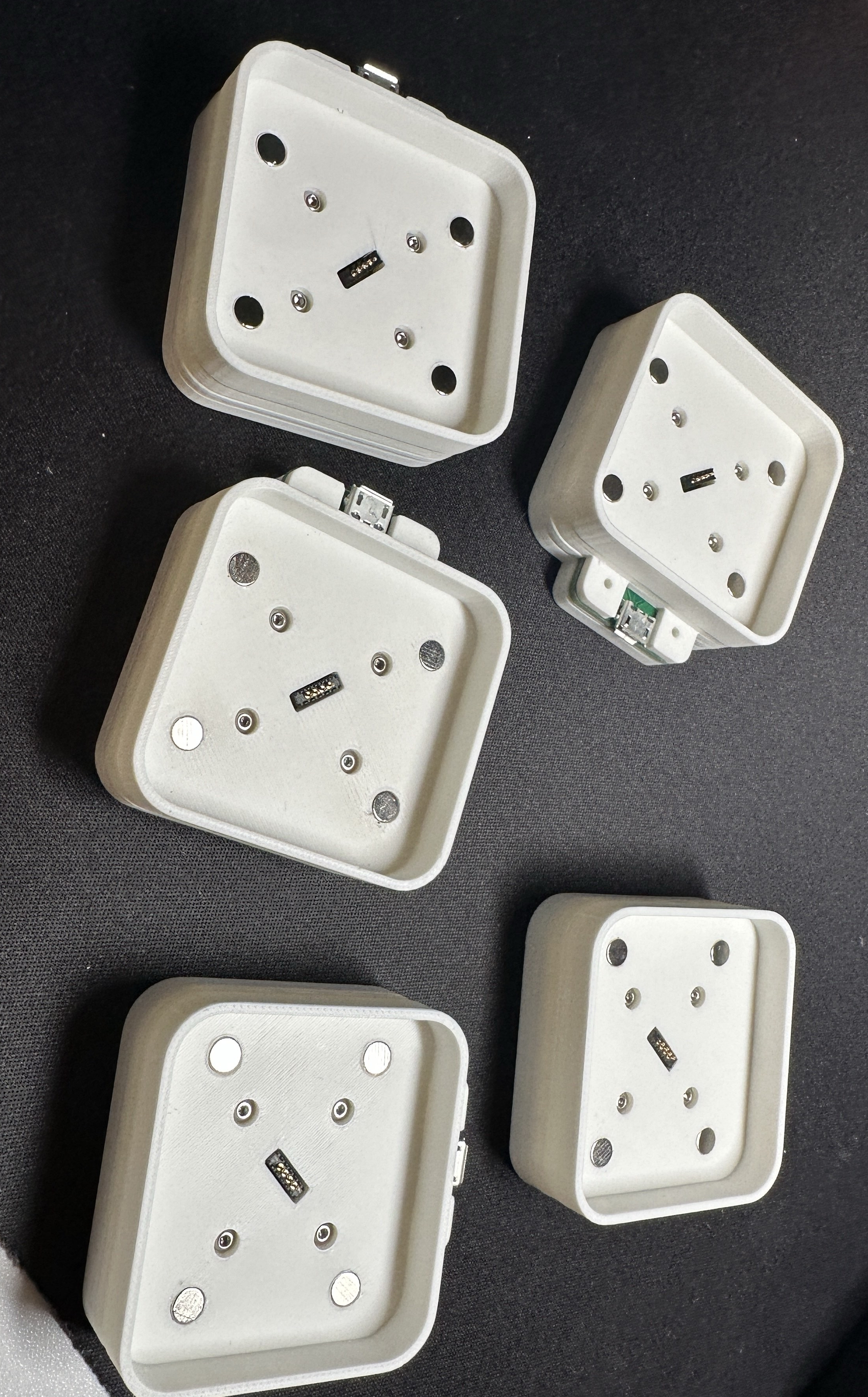

OpenPin: use your Humane Ai Pin again. Installable in a few clicks & without any ADB certs!
OpenPin is an open-source project which lets you use your Ai Pin after Humane bricked them. You can install it in a few clicks & without any ADB certs!
Please see OpenPin.org for installation and usage instructions.
If you order the PCB with the USB-port already soldered (as in the instructions below) you do NOT need to buy the 'Micro-USB Port' part.
You will also need soldering tools and a 3D printer, depending on how much you choose to do yourself (versus using a service).
OpenPin bill of materials (BOM)
4 components, 3 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | GT-USB-7010AN | USB-SMD_GT-USB-7010AN | J1 |
| 1 | CONN_01X04_PIN Conn_01x04_Pin | 854-22-004-10-001101 | J2 |
| 2 | 5K1 | R_0402_1005Metric | R1, R2 |
OpenPin design files
The KiCad project lives in the MaxMaeder/OpenPin repository on GitHub; these links point at the commit this page was built from.
OpenPin: common questions
How big is the OpenPin PCB?
The OpenPin measures 39.2 × 28 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the OpenPin?
4 components, from 3 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the OpenPin design files?
From the MaxMaeder/OpenPin repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the OpenPin design in my own project?
It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
