Hw nuc64-debug

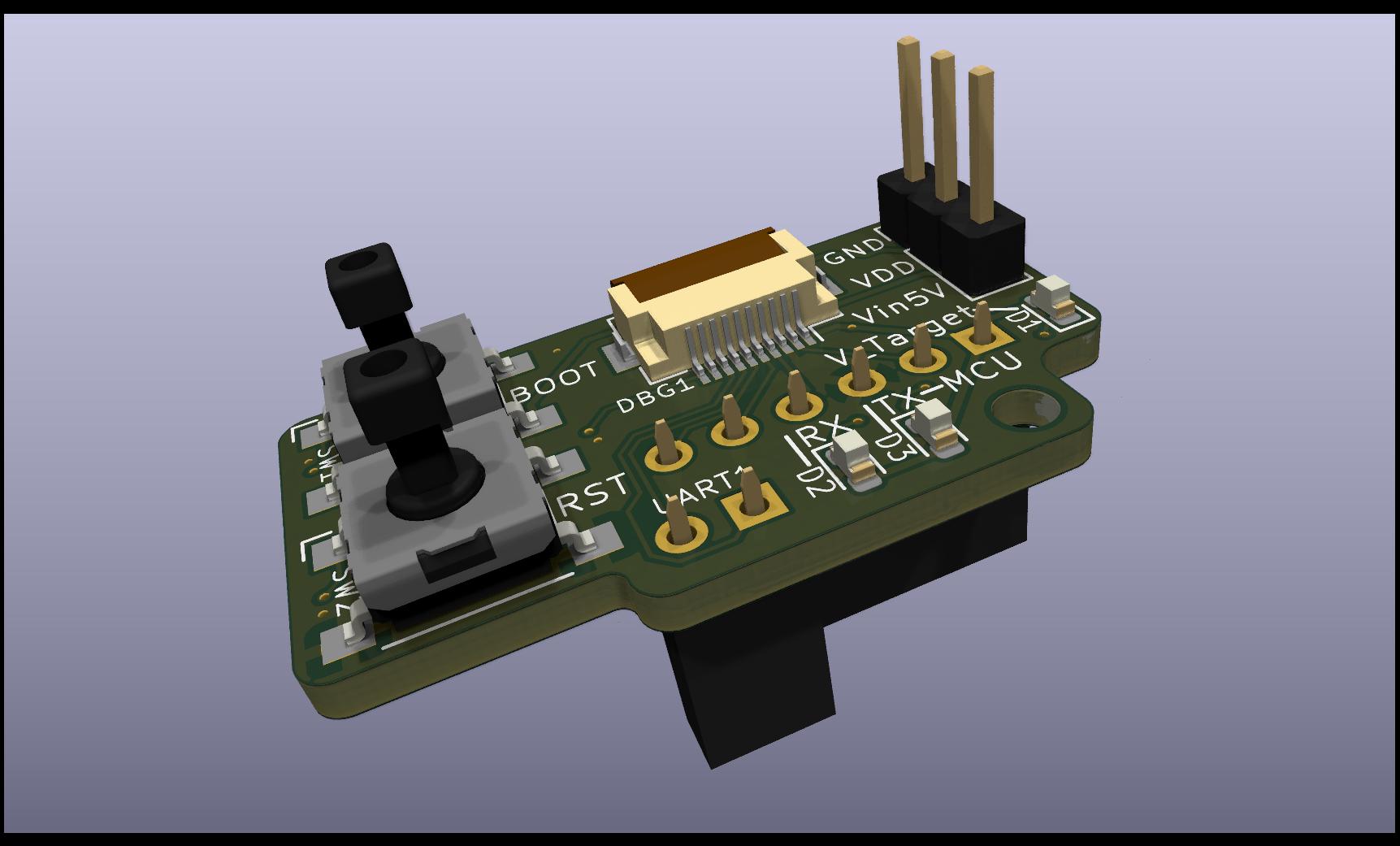

About the Hw nuc64-debug PCB
Hw nuc64-debug is an open source PCB design by maxses, published on GitHub. It is a 2-layer board measuring 17.2 × 30.5 mm, with 22 components from 17 distinct parts.
By type, the board carries 8 resistors, 5 capacitors, 3 diodes, 2 connectors and 2 switches.
From the project
Small adapter PCB to connect a STM32 based custom PCB via 10P-FPC with the STLink-part of an Nucleo64-Board.
Small adapter PCB to connect a STM32 based custom PCB via 10P-FPC with the STLink-part of an Nucleo64-Board.
* If you have problems with the UART you may need to update firmware of STLink. Version V2J20M4 did not work, after update to V2J38M27 problems disappeared.
* V0.2.x: Boot-Button not functional. Connect J2-Pin2(VDD) to button pad in the corner.
Hw nuc64-debug bill of materials (BOM)
22 components, 17 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SWD | PinSocket_1x06_P2.54mm_Vertical | J1 |
| 1 | POW | PinHeader_1x03_P2.54mm_Vertical | J2 |
| 1 | DBG | Hirose_FH12-10S-0.5SH_1x10-1MP_P0.50mm_Horizontal | DBG1 |
| 1 | BOOT | SW_SPST_Omron_B3FS-105xP | SW1 |
| 1 | RST | SW_SPST_Omron_B3FS-105xP | SW2 |
| 1 | UART | PinSocket_1x02_P2.54mm_Vertical | UART1 |
| 1 | LED Violet | LED_0603_1608Metric | D1 |
| 1 | RX | LED_0603_1608Metric | D2 |
| 1 | TX | LED_0603_1608Metric | D3 |
| 3 | 100n | C_0603_1608Metric | C1, C2, C5 |
| 1 | 10n | C_0603_1608Metric | C3 |
| 1 | 10µ | C_0603_1608Metric | C4 |
| 2 | 330 | R_0603_1608Metric | R1, R3 |
| 1 | 2K | R_0603_1608Metric | R2 |
| 2 | 1K | R_0603_1608Metric | R4, R5 |
| 2 | 680 | R_0603_1608Metric | R6, R7 |
| 1 | 1M | R_0603_1608Metric | R8 |
Hw nuc64-debug design files
The KiCad project lives in the maxses/hw-nuc64-debug repository on GitHub; these links point at the commit this page was built from.
- Layoutnuc64-debug.kicad_pcb
- Schematicnuc64-debug.kicad_sch
Hw nuc64-debug: common questions
How big is the Hw nuc64-debug PCB?
The Hw nuc64-debug measures 17.2 × 30.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Hw nuc64-debug?
22 components, from 17 distinct parts. The full bill of materials is listed on this page.
Where can I download the Hw nuc64-debug design files?
From the maxses/hw-nuc64-debug repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Hw nuc64-debug design in my own project?
The repository has no license, so all rights stay with maxses. Use it as a reference, and ask the author before reusing the design.
