PMT-socket schema
About the PMT-socket schema PCB
PMT-socket schema is an open source PCB design by Mballina42, published on GitHub. It is a 2-layer board measuring 75 × 75 mm, with 34 components from 20 distinct parts.
Other key parts include the PMT-R5912. By type, the board carries 25 resistors, 5 capacitors, 3 connectors and 1 IC.
From the project

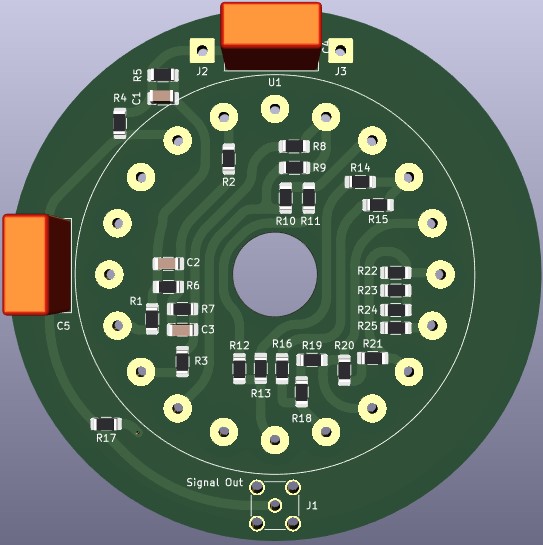

Hamamatsu R5912 voltage divider with socket
For the LAGO project, the instrumentation laboratory of the Escuela de Ciencias Físicas y Matemáticas of the Universidad de San Carlos de Guatemala, with the support of the mlab of the ICTP, is developing the prototype of the electronics for a Water Cherenkov Detector that contains coincidences for vertical muons .
Here you can find the schematic of the project in pdf format, the editable files can also be found in the PMT-VD folder.
Main components on the PMT-socket schema
PMT-socket schema bill of materials (BOM)
34 components, 20 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | PMT-R5912 | PMTR5912 | U1 |
| 1 | Signal Out | SMA_Amphenol_901-144_Vertical | J1 |
| 1 | +HV | SolderWire-0.75sqmm_1x01_D1.25mm_OD3.5mm | J2 |
| 1 | GND HV | SolderWire-0.75sqmm_1x01_D1.25mm_OD3.5mm | J3 |
| 3 | 0.02u | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C1, C2, C3 |
| 1 | 0.47n | C_Rect_L13.0mm_W6.0mm_P10.00mm_FKS3_FKP3_MKS4 | C4 |
| 1 | 0.005u | C_Rect_L13.0mm_W6.0mm_P10.00mm_FKS3_FKP3_MKS4 | C5 |
| 3 | 51 | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R1, R2, R3 |
| 3 | 100k | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R4, R10, R18 |
| 2 | 240k | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R5, R19 |
| 3 | 300k | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R6, R14, R16 |
| 1 | 220k | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R7 |
| 2 | 150k | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R8, R22 |
| 2 | 120k | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R9, R12 |
| 1 | 47k | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R11 |
| 2 | 33k | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R13, R21 |
| 1 | 200k | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R15 |
| 1 | 50 | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R17 |
| 1 | 27k | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R20 |
| 3 | 510k | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R23, R24, R25 |
