MUST-Autonics
About the MUST-Autonics PCB

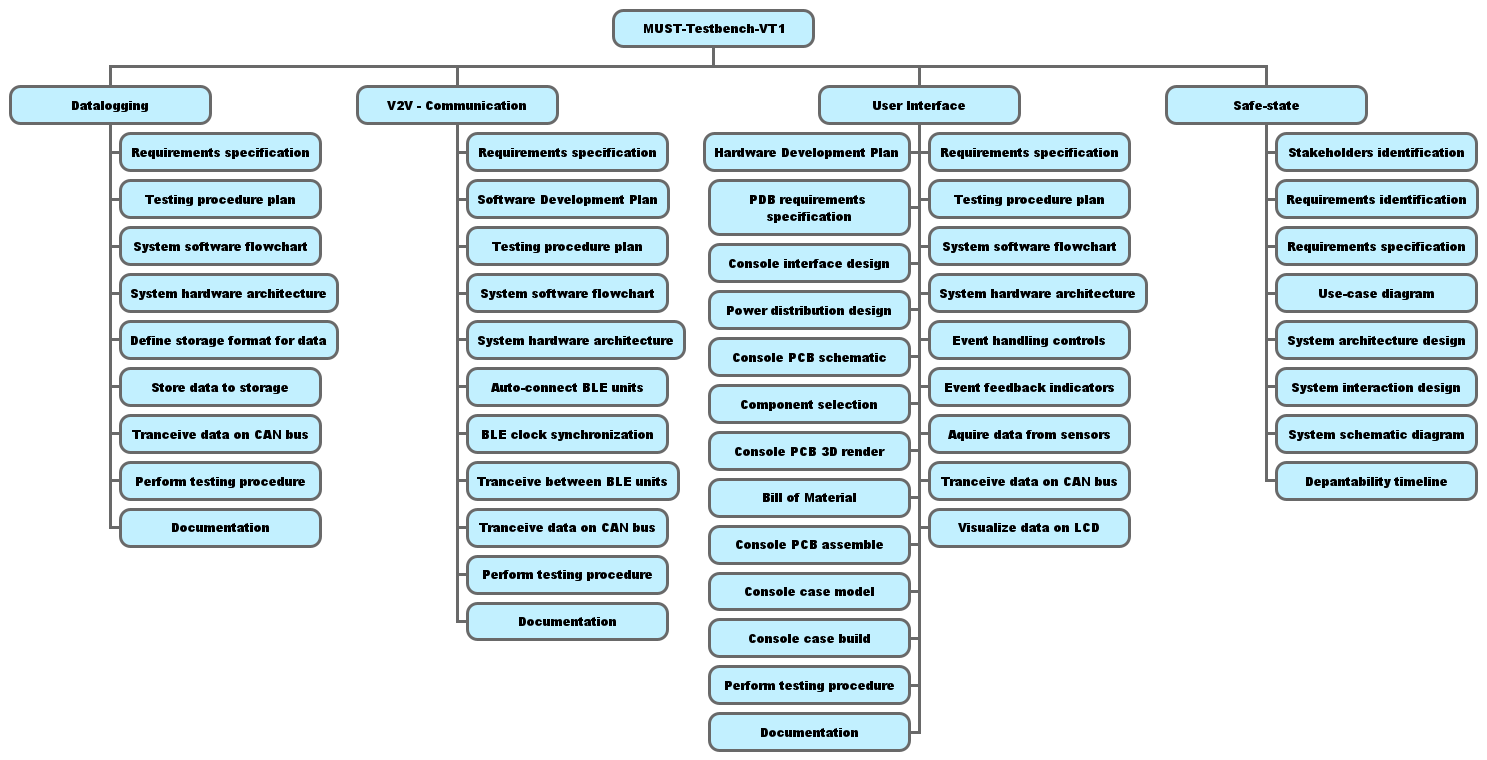

MUST-Autonics is an open source PCB design by MDU-C2, published on GitHub. It is a 2-layer board measuring 183 × 130 mm, with 66 components from 24 distinct parts.
Other key parts include the NUCLEO64-F476RG, PCF8574AN and CJMCU_MCP2551. By type, the board carries 20 resistors, 15 switches, 7 transistors, 7 connectors, 7 diodes and 3 ICs.
Main components on the MUST-Autonics
MUST-Autonics bill of materials (BOM)
66 components, 24 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | NUCLEO64-F476RG | MODULE_NUCLEO-F476RG | U101 |
| 1 | PCF8574AN | DIP-16_W7.62mm | U201 |
| 1 | CJMCU_MCP2551 | CJMCU_2551 | U601 |
| 1 | 2N3904 | SOT-23 | Q201 |
| 6 | IPD50R380CE | TO-252-2 | Q301, Q302, Q303, Q304, Q305, Q306 |
| 3 | Conn_01x04 | JST_XH_S4B-XH-A_1x04_P2.50mm_Horizontal | J301, J302, J303 |
| 3 | Conn_01x02 | JST_XH_S2B-XH-A_1x02_P2.50mm_Horizontal | J501, J502, J601 |
| 1 | DB37_Male_MountingHoles | Wurth_Dsub_37_angled_male_8.08mm | J701 |
| 1 | WC1602A | WC1602A | DS201 |
| 1 | 10k | Potentiometer_Bourns_3386P_Vertical | RV201 |
| 4 | R_POT | Potentiometer_Bourns_PTV09A-1_Single_Vertical | RV401, RV402, RV701, RV702 |
| 1 | SW_DIP_x01 | Vishay_HVM-DIP-3_W7.62mm | SW201 |
| 5 | SW_Push | SW_PUSH-12mm | SW401, SW402, SW403, SW404, SW407 |
| 7 | SW_SPST | MFP120 | SW405, SW406, SW501, SW502, SW701, SW702, SW703 |
| 1 | SW_DPDT_x2 | MFP130 | SW408 |
| 1 | SW_DIP_x08 | DIP-16_W7.62mm | SW704 |
| 7 | LED | LED_D5.0mm | D201, D401, D402, D403, D404, D405, D701 |
| 1 | 100n | C_0805_2012Metric | C201 |
| 1 | 1k | R_0603_1608Metric | R201 |
| 6 | 10k | R_0603_1608Metric | R202, R203, R204, R301, R302, R303 |
Show 4 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 3 | 4.7 | R_0603_1608Metric | R205, R206, R207 |
| 1 | 100k | R_0603_1608Metric | R304 |
| 8 | R_Small | R_0603_1608Metric | R305, R306, R401, R402, R403, R404, R405, R701 |
| 1 | 120 | R_0603_1608Metric | R601 |
MUST-Autonics design files
The KiCad project lives in the MDU-C2/MUST-Autonics repository on GitHub; these links point at the commit this page was built from.
MUST-Autonics: common questions
How big is the MUST-Autonics PCB?
The MUST-Autonics measures 183 × 130 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the MUST-Autonics?
66 components, from 24 distinct parts. The full bill of materials is listed on this page.
Where can I download the MUST-Autonics design files?
From the MDU-C2/MUST-Autonics repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the MUST-Autonics design in my own project?
The repository has no license, so all rights stay with MDU-C2. Use it as a reference, and ask the author before reusing the design.
