Kb db protruded panel
About the Kb db protruded panel PCB
Kb db protruded panel is an open source PCB design by melonbred, published on GitHub under the MIT license. It is a 2-layer board measuring 42 × 24 mm, with 8 components from 7 distinct parts.
By type, the board carries 3 resistors, 1 connector, 1 fuse, 1 diode and 1 capacitor.
From the project

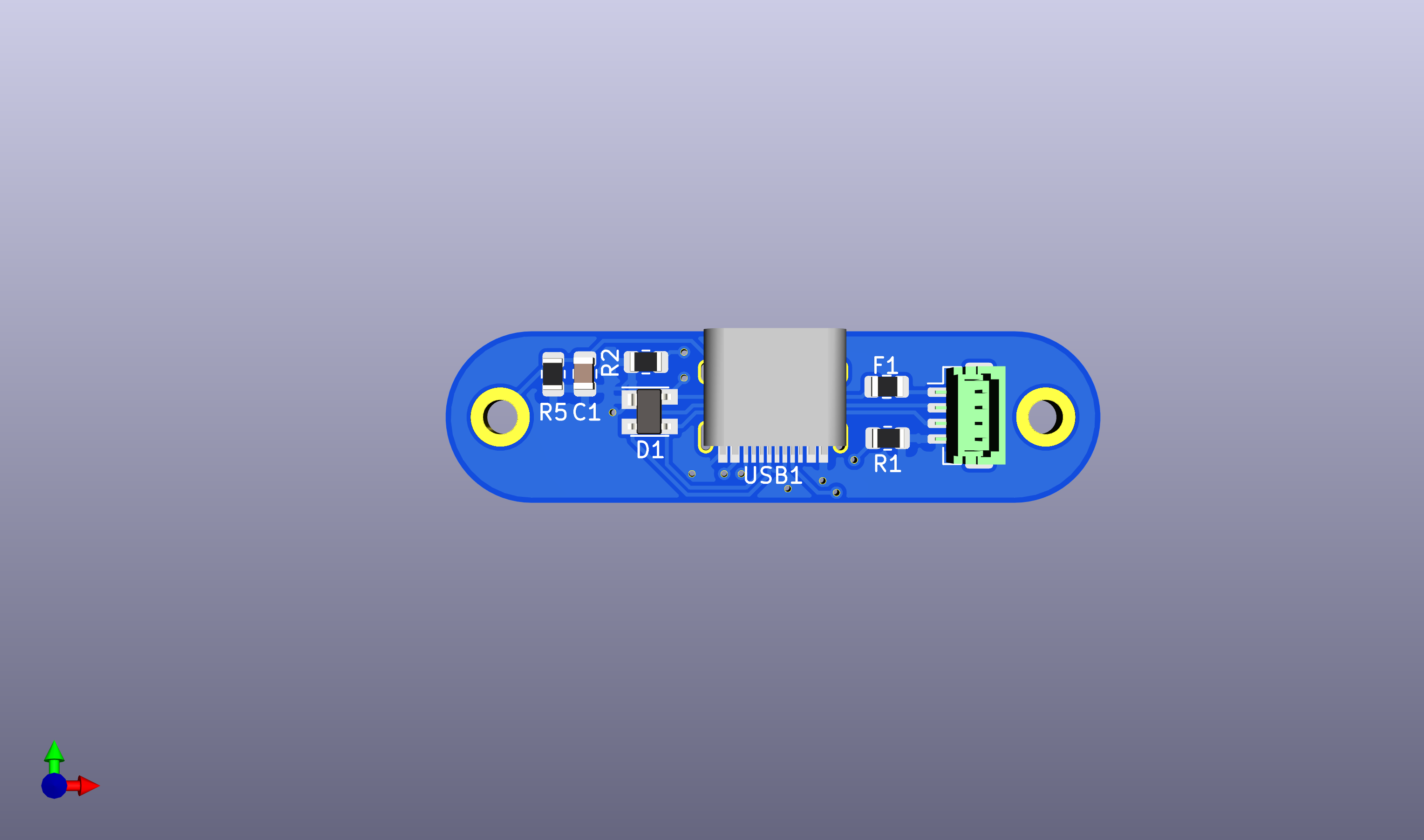

This project is a USB-C daughterboard that provides with ESD protection and a standard 4-pin JST connector. Dimensions are approximately 42 x 11mm and has two M2 screw mounts. This daughterboard was heavily influenced by the C3 Unified Daughterboard project. While the C3 Unified
This project is a USB-C daughterboard that provides with ESD protection and a standard 4-pin JST connector. Dimensions are approximately 42 x 11mm and has two M2 screw mounts. This daughterboard was heavily influenced by the C3 Unified Daughterboard project. While the C3 Unified Daughterboard is a great product, this daughterboard offers a different footprint and vertical JST connector.
Kb db protruded panel bill of materials (BOM)
8 components, 7 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | CONN_01X04 Conn_01x04 | JST_SH_BM04B-SRSS-TB_1x04-1MP_P1.00mm_Vertical | J1 |
| 1 | 500MA 500mA | Fuse_0805_2012Metric | F1 |
| 1 | HRO-TYPE-C-31-M-12 | HRO-TYPE-C-31-M-12-Assembly | USB1 |
| 1 | PRTR5V0U2X | SOT-143 | D1 |
| 1 | 4.7N 4.7n | C_0805_2012Metric | C1 |
| 2 | 5.1K 5.1k | R_0805_2012Metric | R1, R2 |
| 1 | 1M | R_0805_2012Metric | R5 |
Kb db protruded panel design files
The KiCad project lives in the melonbred/kb-daughterboard repository on GitHub; these links point at the commit this page was built from.
Kb db protruded panel: common questions
How big is the Kb db protruded panel PCB?
The Kb db protruded panel measures 42 × 24 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Kb db protruded panel?
8 components, from 7 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Kb db protruded panel design files?
From the melonbred/kb-daughterboard repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the Kb db protruded panel design in my own project?
Yes, under the terms of its MIT license, which melonbred chose for the repository.
