PCIeTest
About the PCIeTest PCB
PCIeTest is an open source PCB design by mengstr, published on GitHub under the CC0-1.0 license. It is a 2-layer board measuring 100 × 100 mm, with 15 components from 6 distinct parts.
By type, the board carries 9 connectors, 2 capacitors, 1 diode and 1 resistor.
From the project

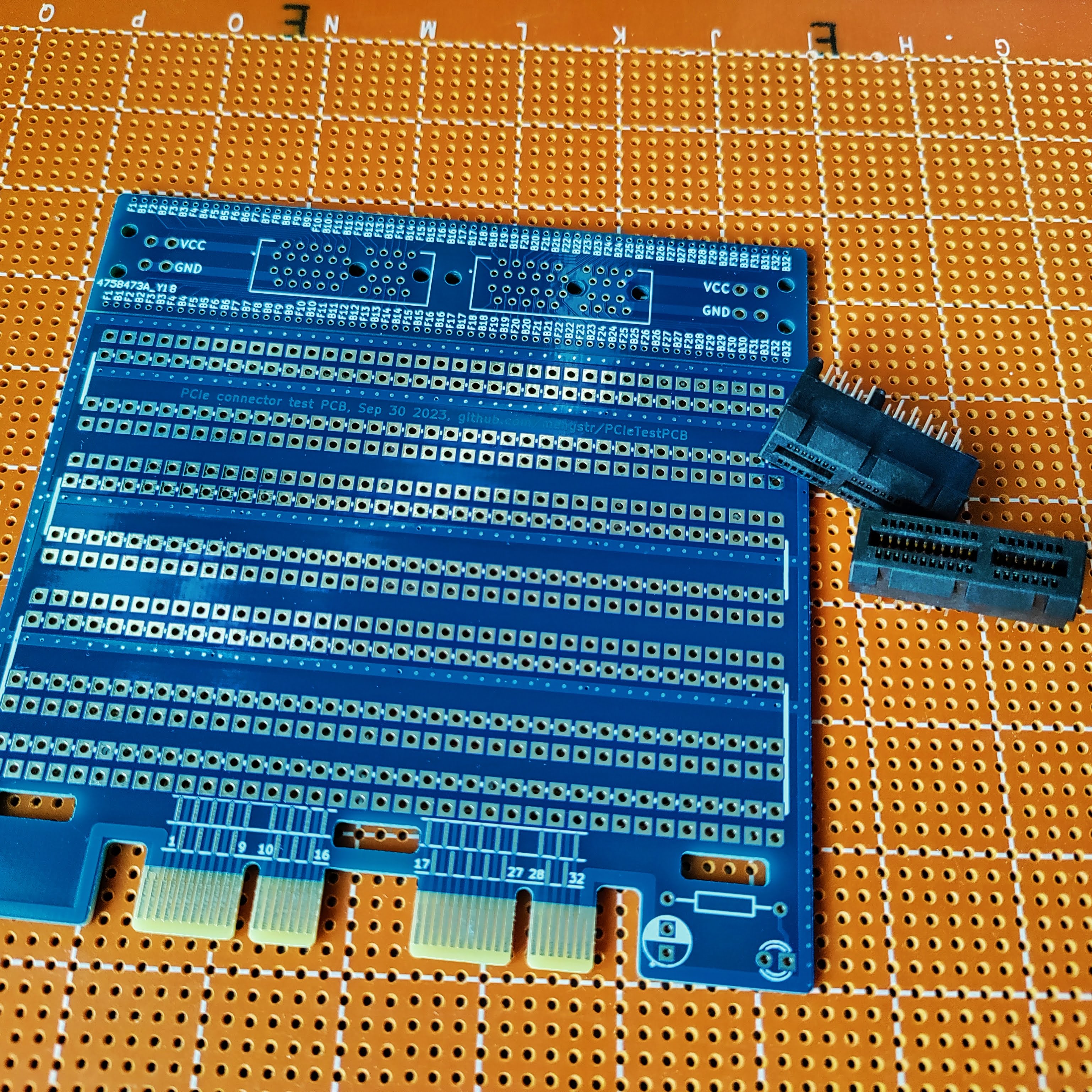

A test PCB having a dual PCIe-36 connector and card edge connectors.
A simple PCB to test the 30 cent PCIe connectors from Mouser (SKU 649-1001878410200TLF). The PCB should be 1.6 mm to fit the connector.\
The PCB is meant to be split into two parts. The bottom part have the edgeconnector and a small DIP prototype area. The top parts holds the PCIe connectors and all five of them should be chained together into a backplane using wires going to card to card forming a bus.
PCIeTest bill of materials (BOM)
15 components, 6 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 10018783-10200TLF | PCI-E36 | J1a1, J1b1 |
| 7 | CONN_01X37_PIN Conn_01x37_Pin | WW37 | J5, J6, J8, J11, J12, J13, J14 |
| 2 | BUS_PCI_EXPRESS_X1 Bus_PCI_Express_x1 | BUS_PCIexpress_x1 | JEa1, JEb1 |
| 1 | LED | LED_D3.0mm | D1 |
| 2 | C_Polarized | CP_Radial_D5.0mm_P2.50mm | C1, C2 |
| 1 | R | R_Axial_DIN0309_L9.0mm_D3.2mm_P12.70mm_Horizontal | R1 |
