Matt poe prototype

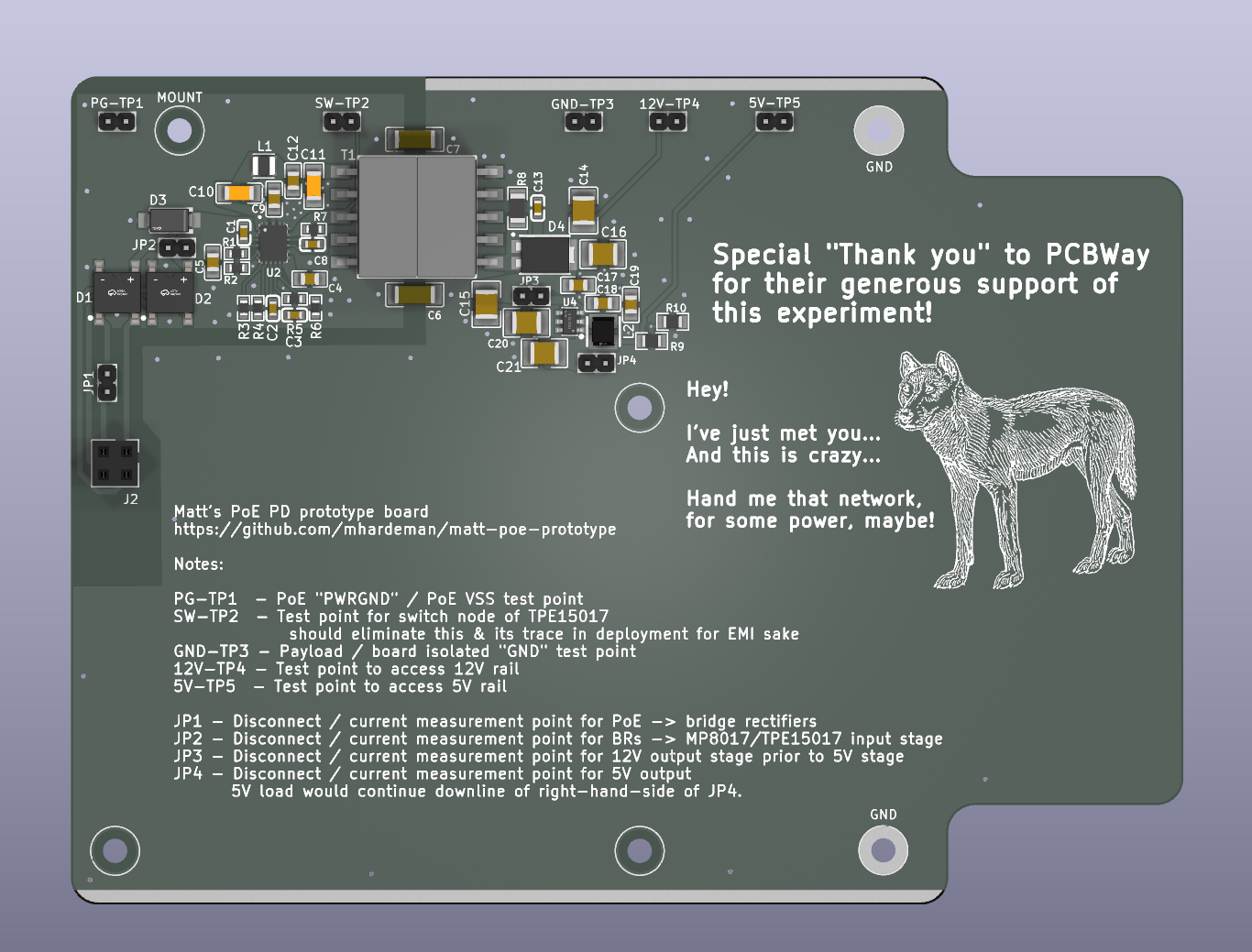

About the Matt poe prototype PCB
Matt poe prototype is an open source PCB design by mhardeman, published on GitHub. It is a 2-layer board measuring 123 × 91.6 mm, with 50 components from 32 distinct parts.
Other key parts include the TPE15017 and AP62250WU-7. By type, the board carries 21 capacitors, 10 resistors, 4 jumpers, 4 diodes, 2 ICs and 2 inductors.
From the project
PoE Powered Device (PD) Prototype Schematic & PCB design in KiCad for 12V & 5V output rails
It provides for output isolation between the PoE delivery and the output power rails. It provides for both 12V and 5V output rails, with a common ground for those two rails.
This is a prototype. I'm happy to accept issues with questions or suggestions for improvement, and would very happily review any pull requests that come in.
This design utilizes the 3Peak TPE15017 and/or Monolithic Power Systems MP8017 -- they're largely interchangeable in this design, though tolerances on the 3Peak seem to be favorable, which can improve your efficiency. This tiny IC handles the PoE power detection and…
Main components on the Matt poe prototype
Matt poe prototype bill of materials (BOM)
50 components, 32 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TPE15017 3Peak | QFN-19_MP8017_MNP | U2 |
| 1 | AP62250WU-7 Diodes Incorporated | AP62250WU-7 | U4 |
| 1 | 61300421821 Conn_02x02_Odd_Even | PinSocket_2x02_P2.54mm_Vertical | J2 |
| 4 | PZ200V-11-02P XFCN | PZ200V-11-02P | 5V-TP5, 12V-TP4, GND-TP3, PG-TP1 |
| 4 | PZ200V-11-02P XFCN | PZ200V-11-02P | JP1, JP2, JP3, JP4 |
| 1 | PZ200V-11-02P XFCN | PZ200V-11-02P | SW-TP2 |
| 1 | 750311439 EP475SG-10 CND-tek | XFMR_EP13_EP475SG-10 | T1 |
| 2 | ABS10 TB310S Diotec | ABS_TB310S | D1, D2 |
| 1 | SMAJ58A hongjiacheng | SMAJ58A_C19077554 | D3 |
| 1 | SBRT20U60SP5-7 Diodes Incorporated | SBRT20U60SP5-7 | D4 |
| 1 | 10uH Murata Electronics | DFE252012F-100M_P2 | L1 |
| 1 | 2.2uH cjiang (Changjiang Microelectronics Tech) | L_1210_C18724399 | L2 |
| 3 | 885012206073 220nF 25V Samsung Electro-Mechanics | CL10B224KA8NNNC | C1, C2, C8 |
| 1 | 885012206091 22nF 50V Samsung Electro-Mechanics | C_0603_C21122 | C3 |
| 1 | 885012207079 2.2uF 50V Samsung Electro-Mechanics | C_0805_C377773 | C4 |
| 4 | 100nF 100V Samsung Electro-Mechanics | C_0805_C28233 | C5, C12, C17, C19 |
| 2 | GR442QR73D102KW01L 1nF Murata Electronics | C1808 | C6, C7 |
| 1 | 4.7uF 50V Murata Electronics | C_0805_C437557 | C9 |
| 2 | 2.2uF 100V Samsung Electro-Mechanics | C_1206_C170101 | C10, C11 |
| 1 | 220pF 100V Murata Electronics | GCM1885C2A221JA16D | C13 |
Show 12 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 5 | 22uF 35V Taiyo Yuden | C_1210_C778721 | C14, C15, C16, C20, C21 |
| 1 | 10uF 25V Murata Electronics | GRM21BZ71E106KE15L | C18 |
| 1 | 560112116140 24.9kΩ UNI-ROYAL(Uniroyal Elec) | R_0603_C25962 | R1 |
| 1 | 41.2Ω UNI-ROYAL(Uniroyal Elec) | R_0603_C246850 | R2 |
| 1 | 560112116001 0Ω UNI-ROYAL(Uniroyal Elec) | R_0603_C21189 | R3 |
| 1 | 9.1kΩ FOJAN | FRC0603J912_TS | R4 |
| 1 | 560112116128 3kΩ UNI-ROYAL(Uniroyal Elec) | R_0603_C4211 | R5 |
| 1 | 330kΩ UNI-ROYAL(Uniroyal Elec) | 0603WAF3303T5E | R6 |
| 1 | 240kΩ UNI-ROYAL(Uniroyal Elec) | R_0603_C4197 | R7 |
| 1 | 20Ω Yageo | R_1206_C17903 | R8 |
| 1 | 52.3kΩ UNI-ROYAL(Uniroyal Elec) | R_0805_C17740 | R9 |
| 1 | 10kΩ UNI-ROYAL(Uniroyal Elec) | R_0805_C17414 | R10 |
Matt poe prototype design files
The KiCad project lives in the mhardeman/matt-poe-prototype repository on GitHub; these links point at the commit this page was built from.
- Layoutmatt-poe-prototype.kicad_pcb
- Schematicmatt-poe-prototype.kicad_sch
Matt poe prototype: common questions
How big is the Matt poe prototype PCB?
The Matt poe prototype measures 123 × 91.6 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Matt poe prototype?
50 components, from 32 distinct parts. The full bill of materials is listed on this page.
Where can I download the Matt poe prototype design files?
From the mhardeman/matt-poe-prototype repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Matt poe prototype design in my own project?
The repository has no license, so all rights stay with mhardeman. Use it as a reference, and ask the author before reusing the design.
