Tokn is an open source PCB design by MichaelAyles, published on GitHub under the MIT license. It is a board, with 25 components from 7 distinct parts.
Other key parts include the ULQ2003AQDRQ1. By type, the board carries 12 resistors, 4 transistors, 4 capacitors and 1 IC.
From the project
Token-Oriented KiCad Notation (TOKN) – Compact, human-readable, KiCad Netlists for LLM prompts. Spec, benchmarks, Python SDK.
Token-Optimised KiCad Notation — a compact format for representing KiCad schematics, designed for LLM training and generation.

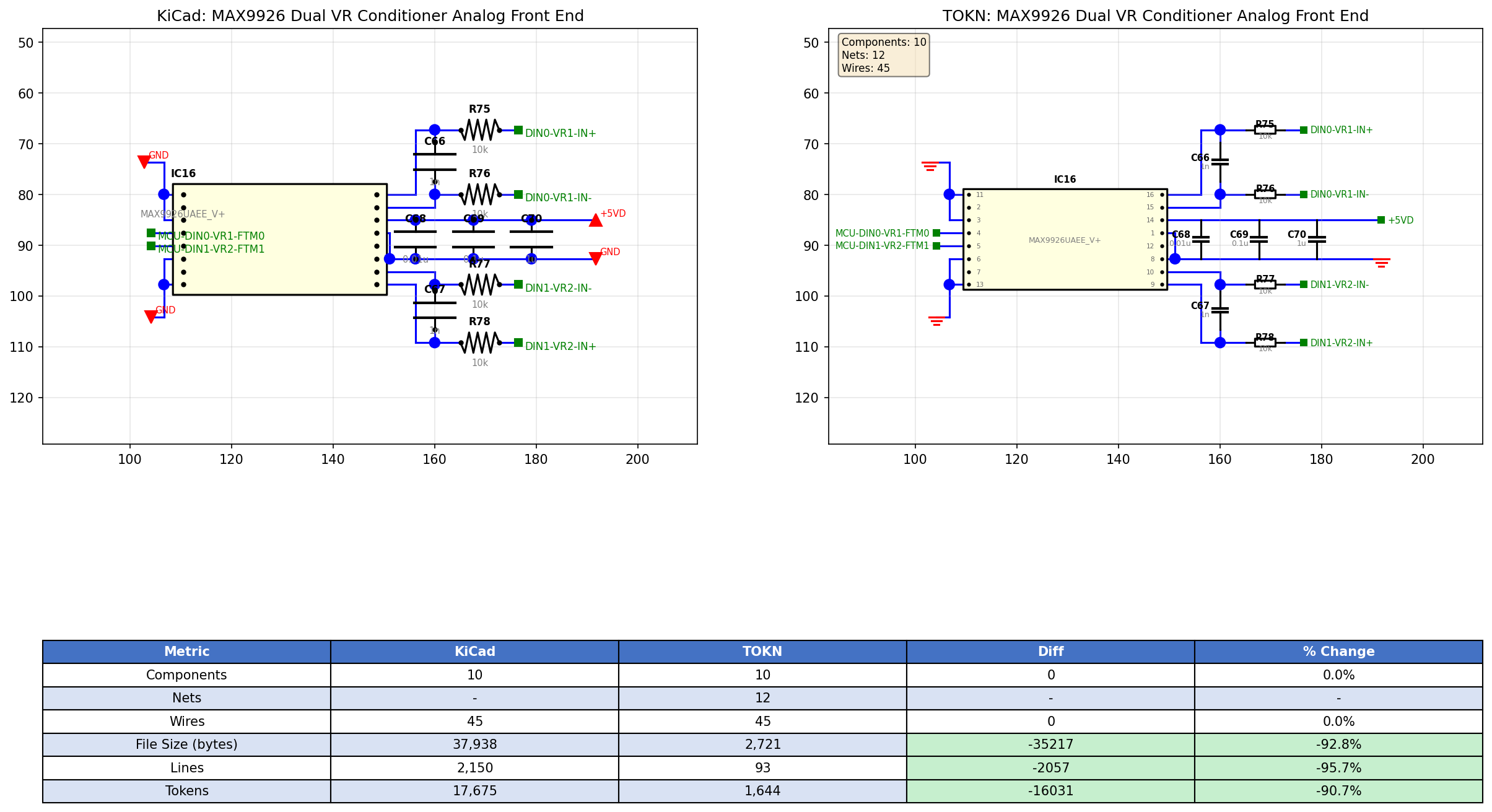

TOKN converts KiCad schematic files (.kicadsch) into a token-efficient representation, achieving >92% token reduction** while preserving electrical connectivity, component positions, and wire geometry. It's built on TOON (Token-Oriented Object Notation).
Main components on the Tokn
Tokn bill of materials (BOM)
25 components, 7 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ULQ2003AQDRQ1 | SOIC127P600X175-16N | IC12 |
| 4 | BSS84Q-13-F | SOT-23 | Q4, Q5, Q6, Q7 |
| 4 | NCV317MBSTT3G | SOT230P700X175-4N | PS3, PS4, PS5, PS6 |
| 4 | 100n | C56, C57, C58, C59 | |
| 4 | 820 | R_0603_1608Metric | R51, R54, R57, R58 |
| 4 | 8K2 | R_0603_1608Metric | R52, R55, R59, R60 |
| 4 | 1K2 | R_0603_1608Metric | R53, R56, R61, R62 |
Tokn design files
The KiCad project lives in the MichaelAyles/tokn repository on GitHub; these links point at the commit this page was built from.
Tokn: common questions
How many components are on the Tokn?
25 components, from 7 distinct parts. The full bill of materials is listed on this page.
Where can I download the Tokn design files?
From the MichaelAyles/tokn repository on GitHub, which has the schematic; the links under Design files point to each one.
Can I use the Tokn design in my own project?
Yes, under the terms of its MIT license, which MichaelAyles chose for the repository.
