Lampenkopf Print
About the Lampenkopf Print PCB
Lampenkopf Print is an open source PCB design by michaelwittner, published on GitHub. It is a 2-layer board measuring 125 × 25.7 mm, with 18 components from 3 distinct parts.
By type, the board carries 16 diodes, 1 connector and 1 resistor.
From the project
A touch lamp for workshops in HTL Steyr

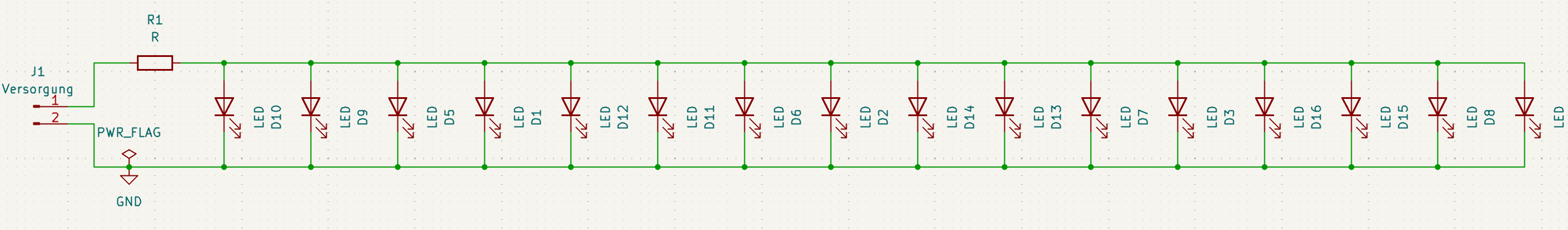

Project download: ⬇️ Schaltplan herunterladen
Lampenkopf Print bill of materials (BOM)
18 components, 3 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Conn_01x02_Pin | PinHeader_1x02_P2.54mm_Horizontal | J1 |
| 16 | LED | LED_D5.0mm | D1, D2, D3, D4, D5, D6, D7, D8 +8 |
| 1 | R | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R1 |
Lampenkopf Print design files
The KiCad project lives in the michaelwittner/2526_5AHEL_LA_Schreibtischlampe repository on GitHub; these links point at the commit this page was built from.
Lampenkopf Print: common questions
How big is the Lampenkopf Print PCB?
The Lampenkopf Print measures 125 × 25.7 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Lampenkopf Print?
18 components, from 3 distinct parts. The full bill of materials is listed on this page.
Where can I download the Lampenkopf Print design files?
From the michaelwittner/2526_5AHEL_LA_Schreibtischlampe repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Lampenkopf Print design in my own project?
The repository has no license, so all rights stay with michaelwittner. Use it as a reference, and ask the author before reusing the design.
