TinyRotary
About the TinyRotary PCB
TinyRotary is an open source PCB design by Mick3DIY, published on GitHub under the MIT license. It is a 2-layer board measuring 25 × 17 mm, with 3 components from 1 distinct parts.
From the project
A tiny PCB for the BOURNS PEC11R rotary encoder
A tiny PCB (with surface resistors) for the BOURNS PEC11R rotary encoder.
As part of an educational project, the schematic and PCB are made with KiCad version 9 (kicad folder).
:bulb: All important parameters are stored in the schematic/PCB editors text variables (common project variables).

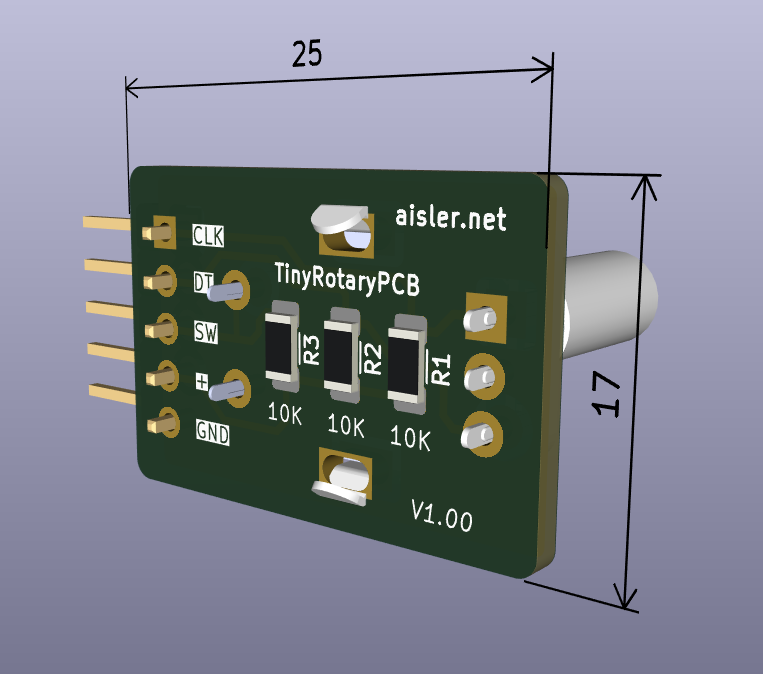

The TinyRotaryPCB itself with the rotary encoder (in reverse side for panel mount), dimensions (mm) :
TinyRotary bill of materials (BOM)
3 components, 1 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 3 | 10K | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R1, R2, R3 |
TinyRotary design files
The KiCad project lives in the Mick3DIY/TinyRotaryPCB repository on GitHub; these links point at the commit this page was built from.
- Layoutkicad/TinyRotaryPCB.kicad_pcb
- Schematickicad/TinyRotaryPCB.kicad_sch
TinyRotary: common questions
How big is the TinyRotary PCB?
The TinyRotary measures 25 × 17 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the TinyRotary?
3 components, from 1 distinct parts. The full bill of materials is listed on this page.
Where can I download the TinyRotary design files?
From the Mick3DIY/TinyRotaryPCB repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the TinyRotary design in my own project?
Yes, under the terms of its MIT license, which Mick3DIY chose for the repository.
