About the 3dev PCB
3dev is an open source PCB design by mirekkolar, published on GitHub under the MIT license. It is a board, with 3 components from 3 distinct parts.
By type, the board carries 1 battery holder, 1 diode and 1 resistor.
From the project
Docker container for building 3d print objects and electro schema design as code
A Docker image for developing electronics projects as code:

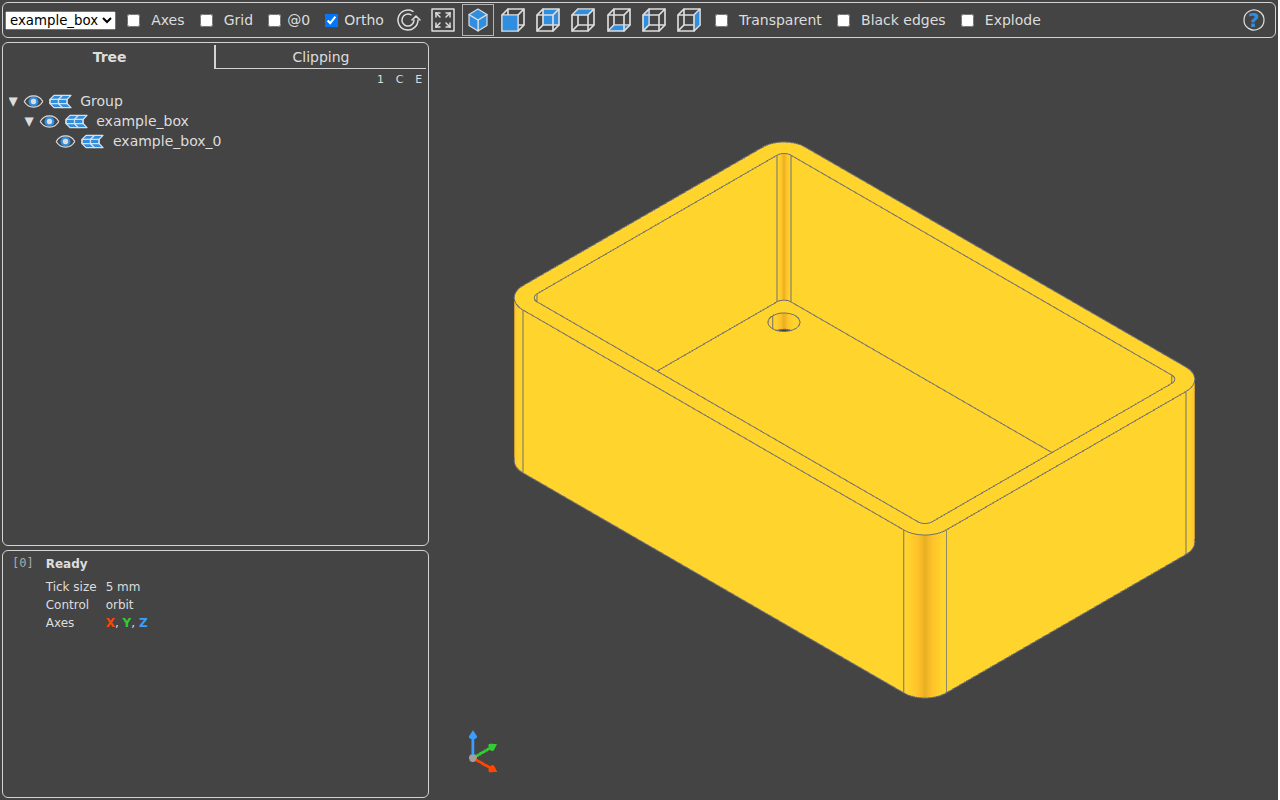

- CadQuery — write parametric 3D models in Python, previewed live in your browser via cq-server. - KiCad — capture schematics/PCBs as plain-text .kicadsch / .kicadpcb files, previewed live in your browser via KiCanvas. - A watcher that automatically converts any edited (or pre-existing) KiCad schematic/PCB file to .svg next to it (using kicad-cli), and any edited (or pre-existing) CadQuery model .py file to a print-optimized .stl plus a preview .png next to it.
3dev bill of materials (BOM)
3 components, 3 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 3V | BatteryHolder_Keystone_103_1x2032 | BT1 |
| 1 | LED | LED_D5.0mm | D1 |
| 1 | 220 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R1 |
3dev design files
The KiCad project lives in the mirekkolar/3dev repository on GitHub; these links point at the commit this page was built from.
3dev: common questions
How many components are on the 3dev?
3 components, from 3 distinct parts. The full bill of materials is listed on this page.
Where can I download the 3dev design files?
From the mirekkolar/3dev repository on GitHub, which has the schematic; the links under Design files point to each one.
Can I use the 3dev design in my own project?
Yes, under the terms of its MIT license, which mirekkolar chose for the repository.
