ADCoctoSPI01
About the ADCoctoSPI01 PCB
ADCoctoSPI01 is an open source PCB design by mlab-modules, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 70.6 × 70.6 mm, with 75 components from 18 distinct parts.
Other key parts include the AFE5801, LM1117MP-1,8/NO and LM1117MP-3,3/NO. By type, the board carries 38 capacitors, 19 resistors, 11 connectors, 3 ICs, 3 inductors and 1 diode.
From the project
Octal input high-speed ADC with serial LVDS output.

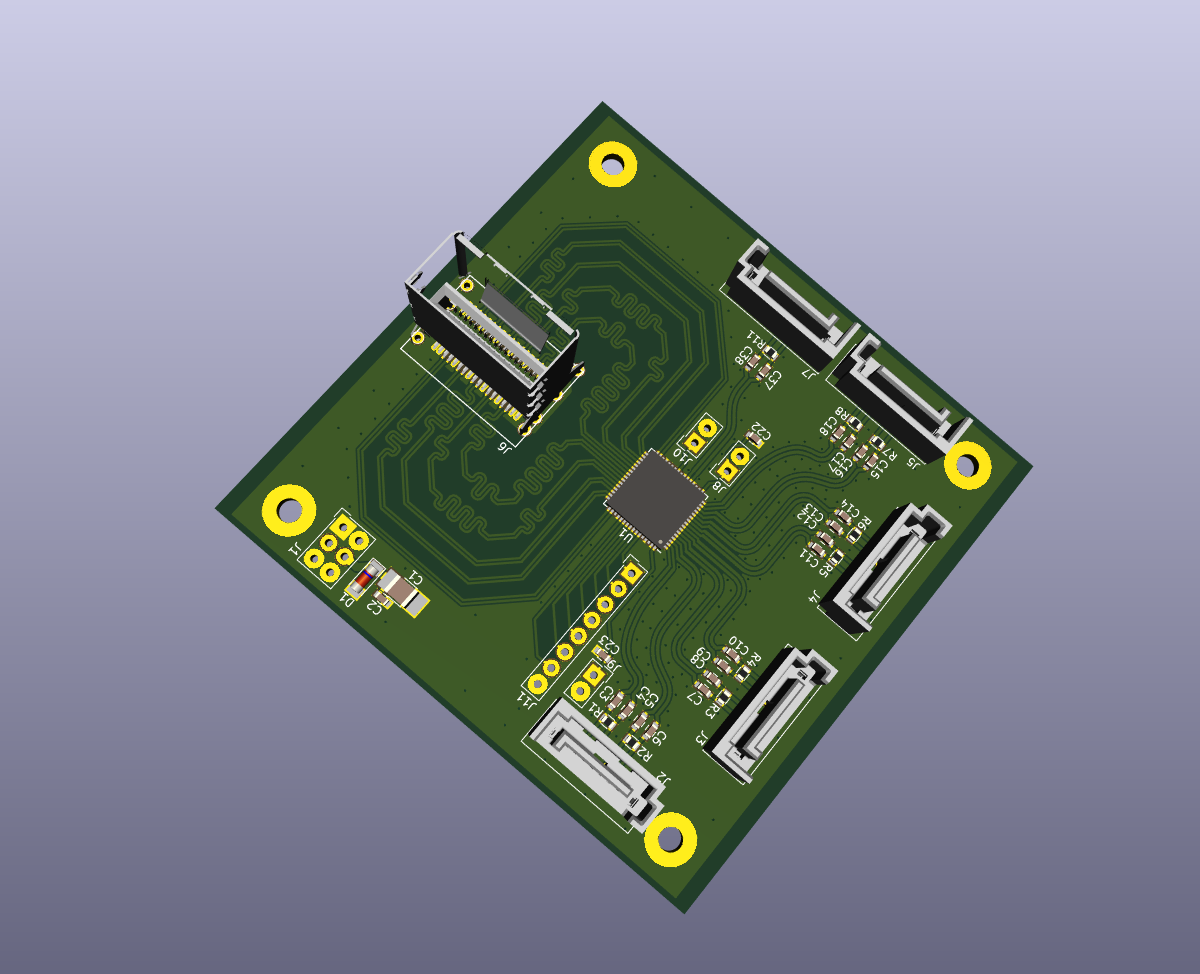

The ADCoctoSPI01 is an eight-channel, high-speed analog-to-digital conversion module designed for signal acquisition in imaging and similar high-speed applications. It integrates a Texas Instruments AFE5801 analog front-end (AFE), which combines eight variable-gain amplifiers (VGAs) and eight 12-bit ADCs with a sampling rate up to 65 MSPS. Data output is serialized through an LVDS interface.
Main components on the ADCoctoSPI01
ADCoctoSPI01 bill of materials (BOM)
75 components, 18 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | AFE5801 | VQFN-64_9.15x9.15mm_EP_7.5x7.5mm | U1 |
| 1 | LM1117MP-1,8/NO | SOT-223-3_TabPin2 | U2 |
| 1 | LM1117MP-3,3/NO | SOT-223-3_TabPin2 | U3 |
| 5 | SATA7-67491-1030 | SATA-7_THT_VERT_2 | J1, J2, J3, J4, J7 |
| 3 | HEADER_1x02 | Straight_1x02 | J5, J6, J9 |
| 1 | HEADER_2X04 HEADER_2x04 | Straight_2x04 | J8 |
| 1 | SAS_MINI_1888174 SAS_mini_1888174 | SAS-mini_TEConnectivity_1888174_Vertical | J10 |
| 1 | +5V | Straight_2x03 | J11 |
| 1 | M4 | D_SMA | D1 |
| 3 | BLM21PG300SN1D | L_0805_2012Metric_Pad1.15x1.40mm_HandSolder | L1, L2, L3 |
| 16 | 10nF | C_0603_1608Metric | C1, C2, C3, C4, C5, C6, C7, C8 +8 |
| 19 | 100nF | C_0603_1608Metric | C17, C18, C19, C20, C21, C22, C23, C24 +11 |
| 1 | 100UF/6V3 100uF/6V3 | C_1210_3225Metric_Pad1.33x2.70mm_HandSolder | C31 |
| 2 | 10uF | C_0805_2012Metric | C37, C38 |
| 9 | 100 | R_0603_1608Metric | R1, R2, R3, R4, R5, R6, R7, R8 +1 |
| 2 | 130 | R_0603_1608Metric | R9, R10 |
| 6 | 10k | R_0603_1608Metric | R11, R12, R13, R16, R17, R18 |
| 2 | 82 | R_0603_1608Metric | R14, R15 |
ADCoctoSPI01 design files
The KiCad project lives in the mlab-modules/ADCoctoSPI01 repository on GitHub; these links point at the commit this page was built from.
ADCoctoSPI01: common questions
How big is the ADCoctoSPI01 PCB?
The ADCoctoSPI01 measures 70.6 × 70.6 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the ADCoctoSPI01?
75 components, from 18 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the ADCoctoSPI01 design files?
From the mlab-modules/ADCoctoSPI01 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the ADCoctoSPI01 design in my own project?
Yes, under the terms of its GPL-3.0 license, which mlab-modules chose for the repository.
