About the BP02 PCB

BP02 is an open source PCB design by mlab-modules, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 60.5 × 40.1 mm, with 34 components from 13 distinct parts.

By type, the board carries 19 inductors, 13 capacitors and 2 connectors.

From the project

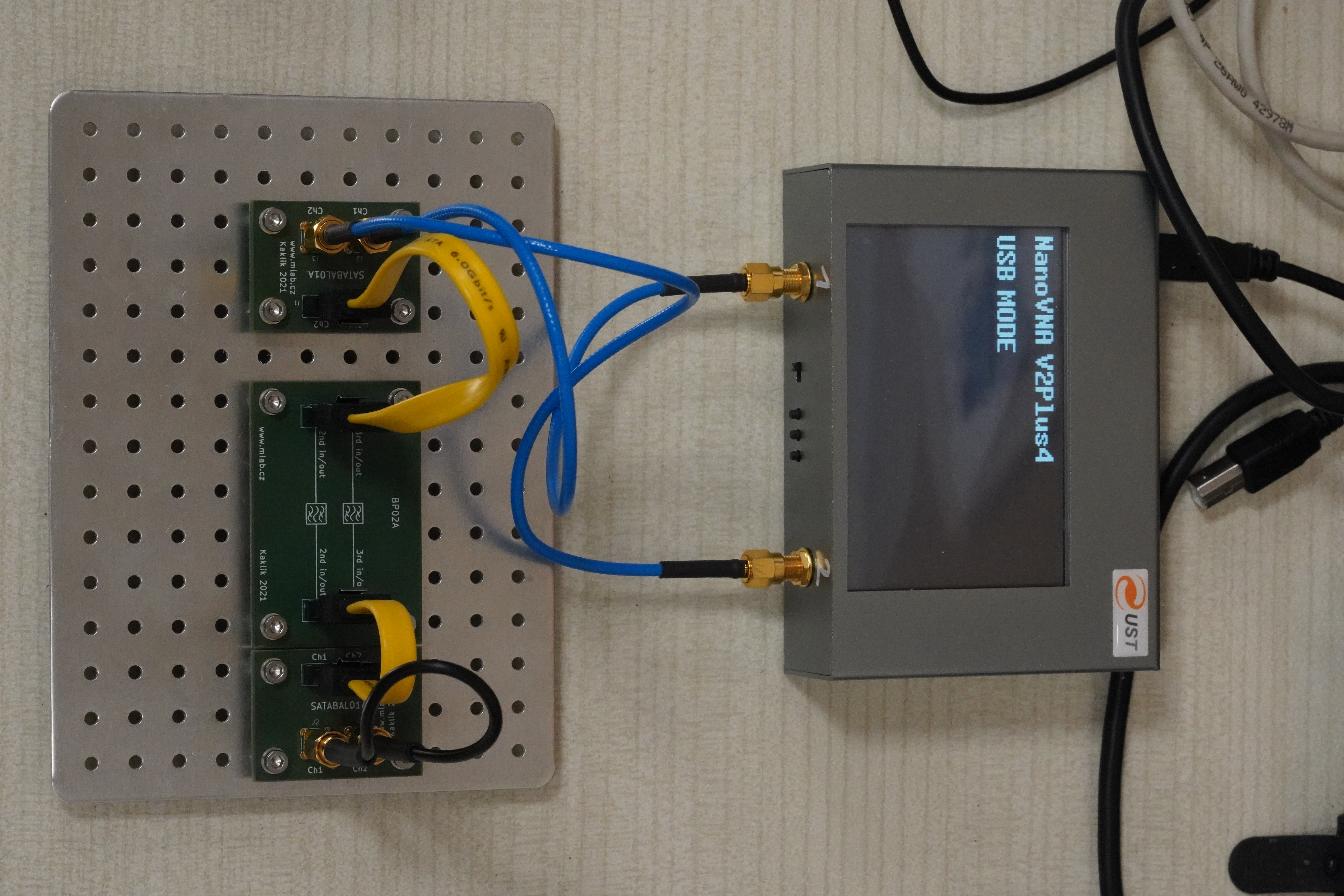

Symmetrical RF filter module with SATA connector input/output

It is used for testing RF SMD standard components-based RF filter designs.

BP02, from the project README
From the project README

BP02 bill of materials (BOM)

34 components, 13 distinct parts — part numbers from the project's BOM.

QtyPartRefs
2
SATA7-67491-1030
J1, J2
4
27nH
L1, L2, L18, L19
2
22nH
L3, L4
3
10nH
L5, L11, L17
1
5.6NH
5.6nH
L6
4
82nH
L7, L8, L13, L14
2
39nH
L9, L10
1
4.7NH
4.7nH
L12
2
18nH
L15, L16
8
100pF
C1, C2, C3, C4, C10, C11, C12, C13
3
18pF
C5, C7, C9
1
33PF
33pF
C6
1
39PF
39pF
C8

BP02 design files

The KiCad project lives in the mlab-modules/BP02 repository on GitHub; these links point at the commit this page was built from.

BP02: common questions

How big is the BP02 PCB?

The BP02 measures 60.5 × 40.1 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the BP02?

34 components, from 13 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the BP02 design files?

From the mlab-modules/BP02 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the BP02 design in my own project?

Yes, under the terms of its GPL-3.0 license, which mlab-modules chose for the repository.
