About the MPPB01 PCB

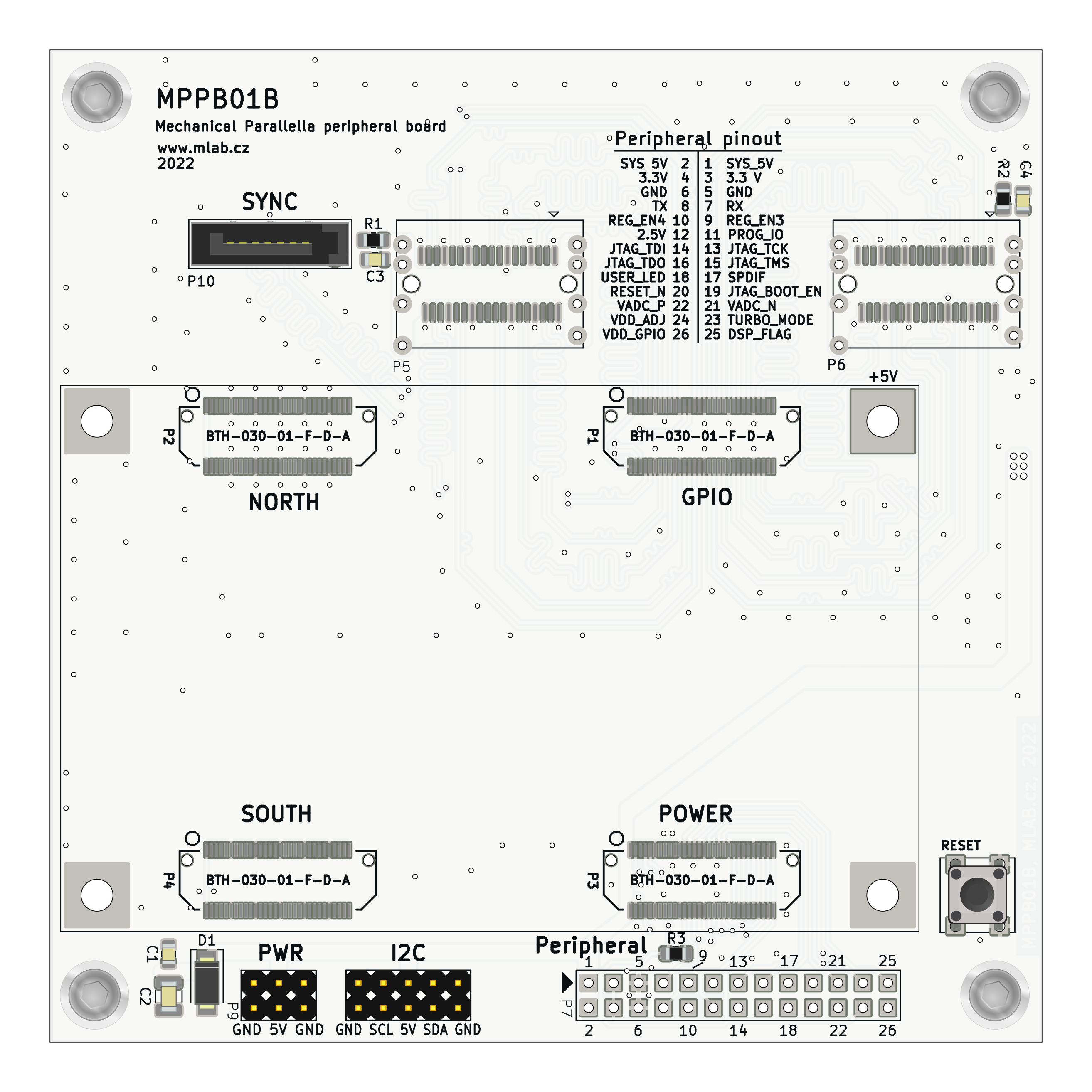

MPPB01 is an open source PCB design by mlab-modules, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 101.1 × 101.1 mm, with 22 components from 13 distinct parts.
By type, the board carries 9 connectors, 4 capacitors, 3 resistors, 1 switch and 1 diode.
From the project
Mechanical parallella peripheral board
Elecromechanical interface to Parallella board. The module is especially useful for connection of multi-channel or high-speed ADCs.
Lightning mapping devices VLF Radio Storm Monitoring Station UHF Radio Storm Monitoring Station
MPPB01 bill of materials (BOM)
22 components, 13 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 4 | BTH-030-01-F-D-A Samtec | SAMTEC-BTH-030-01-X-D-A | P1, P2, P3, P4 |
| 1 | SAS_mini_1888174-6 | SAS-mini_TEConnectivity_1888174_Vertical | P5 |
| 1 | HEADER_2x13 | Straight_2x13 | P7 |
| 1 | HEADER_2x03_PARALLEL | Straight_2x03 | P9 |
| 1 | SATA7-67491-1030 | SATA-7_THT_VERT_2 | P10 |
| 1 | HEADER_2x05_PARALLEL | Straight_2x05 | P11 |
| 4 | MTG\PTH\125\SQ | MTG_PTH_125_SQ | MH1, MH2, MH3, MH4 |
| 1 | Prepinac | SW_PUSH_SMALL | SW1 |
| 1 | M4 | D_SMA | D1 |
| 3 | 100nF/16V | C_0805_2012Metric | C1, C3, C4 |
| 1 | 100uF/6V3 | C_1210_3225Metric | C2 |
| 2 | 100 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R1, R2 |
| 1 | 10k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R3 |
