PIND01
About the PIND01 PCB

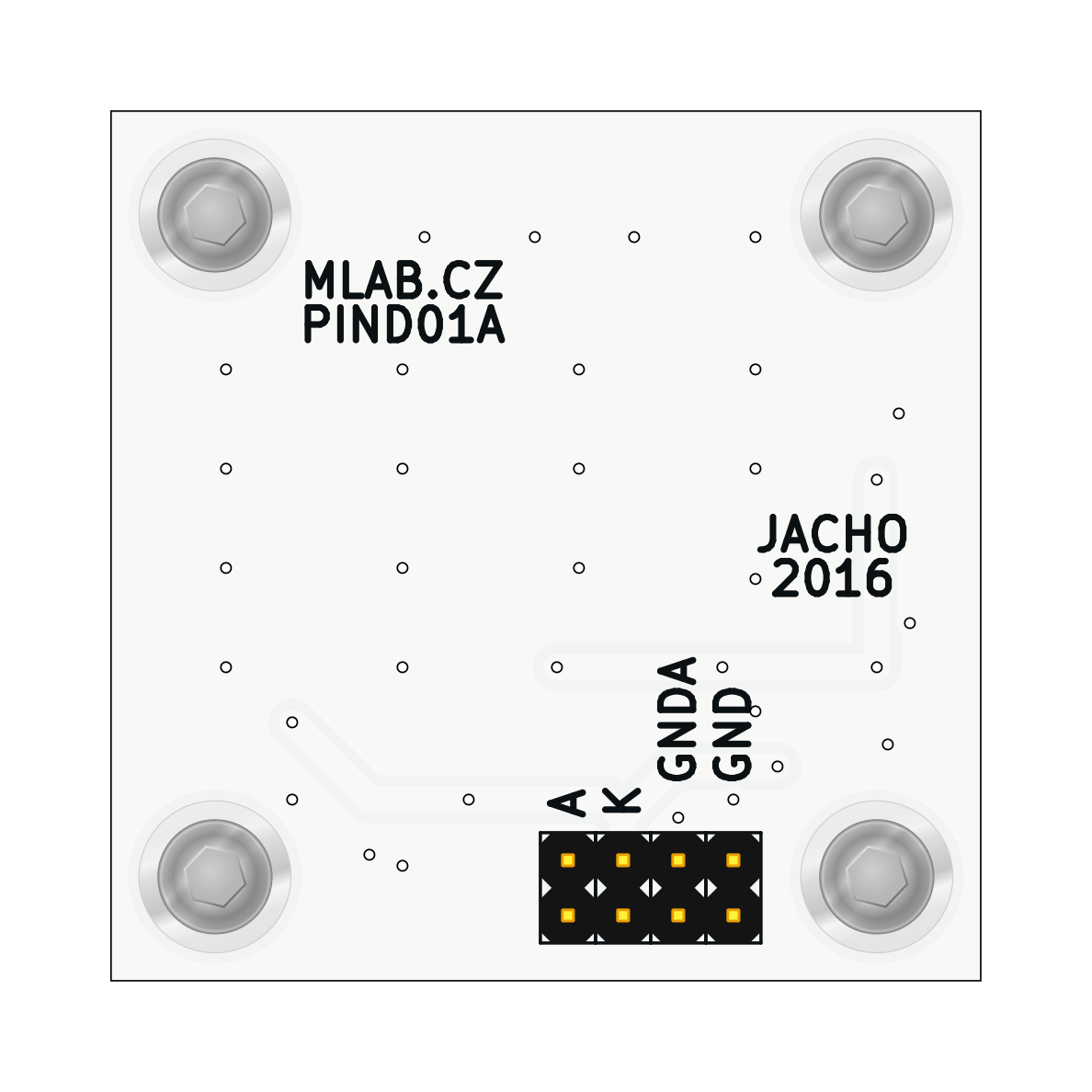

PIND01 is an open source PCB design by mlab-modules, published on GitHub. It is a 2-layer board measuring 40.1 × 40.1 mm, with 30 components from 2 distinct parts.
By type, the board carries 26 diodes and 4 connectors.
From the project
The module includes a parallel-connected diodes for PINS dosimeter.
The module includes multiple of parallel connected photo-diodes for PIN based dosimeter.
PIND01 bill of materials (BOM)
30 components, 2 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 4 | JUMP_2x1 | Straight_2x01 | J1, J2, J3, J4 |
| 26 | BPW34S | DIL | D1, D2, D3, D4, D5, D6, D7, D8 +18 |
PIND01 design files
The KiCad project lives in the mlab-modules/PIND01 repository on GitHub; these links point at the commit this page was built from.
PIND01: common questions
How big is the PIND01 PCB?
The PIND01 measures 40.1 × 40.1 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the PIND01?
30 components, from 2 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the PIND01 design files?
From the mlab-modules/PIND01 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the PIND01 design in my own project?
The repository has no license, so all rights stay with mlab-modules. Use it as a reference, and ask the author before reusing the design.
