RFIQINT01
About the RFIQINT01 PCB
RFIQINT01 is an open source PCB design by mlab-modules, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 60.5 × 50.3 mm, with 42 components from 12 distinct parts.
Other key parts include the MAX9321 and LM1117-3.3. By type, the board carries 17 capacitors, 14 resistors, 6 connectors, 3 ICs, 1 diode and 1 inductor.

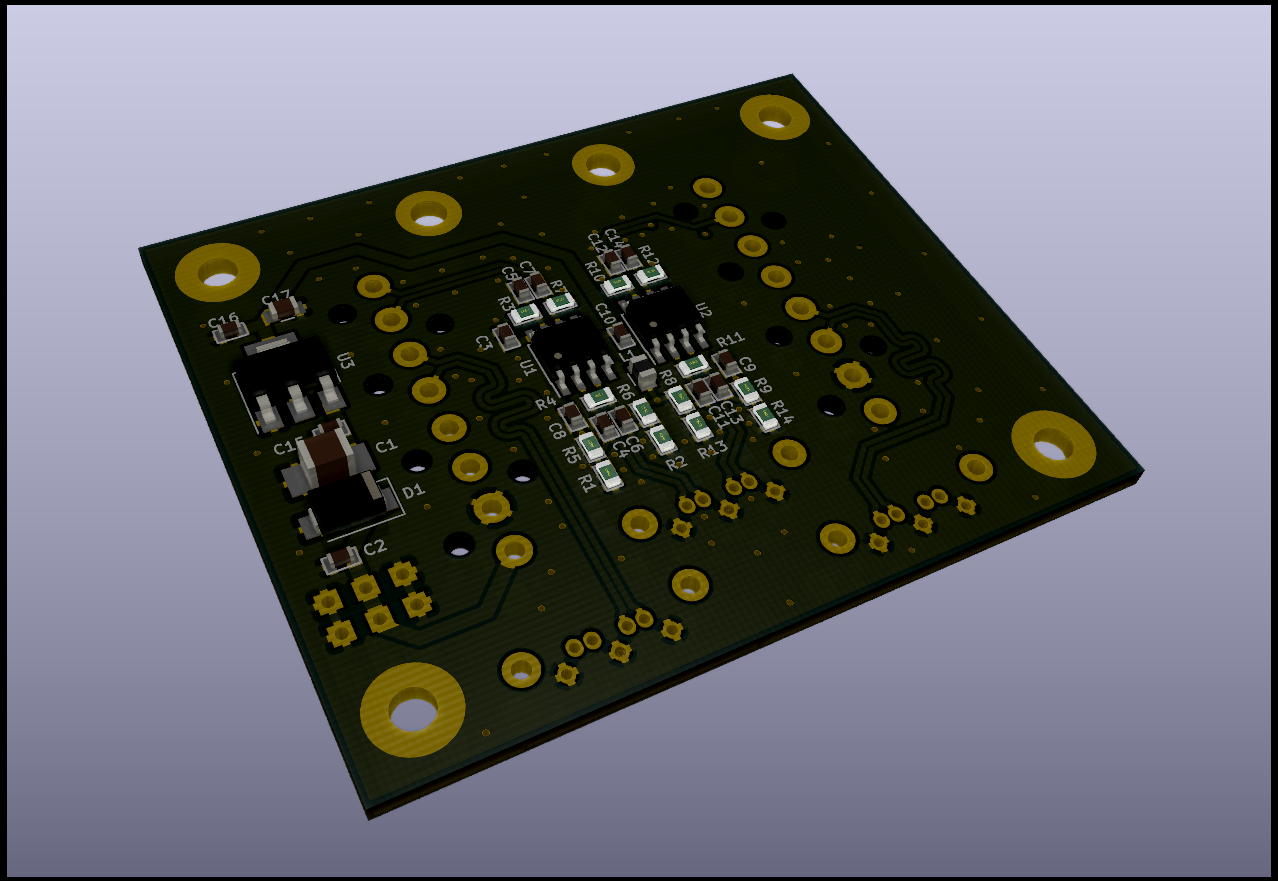

From the project
UTP cable RF signal I/Q interface for QFHMIX module with punch-down blocks
Main components on the RFIQINT01
RFIQINT01 bill of materials (BOM)
42 components, 12 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | MAX9321 | SOIC-8_3.9x4.9mm_P1.27mm | U1, U2 |
| 1 | LM1117-3.3 | SOT-223-3_TabPin2 | U3 |
| 1 | HEADER_2x04_PARALLEL | Straight_2x04 | J1 |
| 3 | SATA7-67491-1030 | SATA-7_THT_VERT_2 | J2, J4, J6 |
| 2 | HEADER_1x08 | IDC381-8-110 | J3, J5 |
| 1 | M4 | D_SMA | D1 |
| 1 | BLM21PG331SN1D | L_0805 | L1 |
| 2 | 10uF/16V | C_0805_2012Metric | C1, C17 |
| 15 | 100nF | C_0603_1608Metric | C2, C3, C4, C5, C6, C7, C8, C9 +7 |
| 4 | 82 | R_0603_1608Metric | R1, R2, R13, R14 |
| 8 | 130 | R_0603_1608Metric | R3, R5, R6, R7, R8, R9, R10, R12 |
| 2 | 100 | R_0603_1608Metric | R4, R11 |
RFIQINT01 design files
The KiCad project lives in the mlab-modules/RFIQINT01 repository on GitHub; these links point at the commit this page was built from.
RFIQINT01: common questions
How big is the RFIQINT01 PCB?
The RFIQINT01 measures 60.5 × 50.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the RFIQINT01?
42 components, from 12 distinct parts. The full bill of materials is listed on this page.
Where can I download the RFIQINT01 design files?
From the mlab-modules/RFIQINT01 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the RFIQINT01 design in my own project?
Yes, under the terms of its GPL-3.0 license, which mlab-modules chose for the repository.
