RFIQINT02
About the RFIQINT02 PCB
RFIQINT02 is an open source PCB design by mlab-modules, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 40.1 × 60.5 mm, with 42 components from 14 distinct parts.
Other key parts include the Si53322. By type, the board carries 17 capacitors, 14 resistors, 7 connectors, 2 diodes, 1 IC and 1 inductor.
From the project

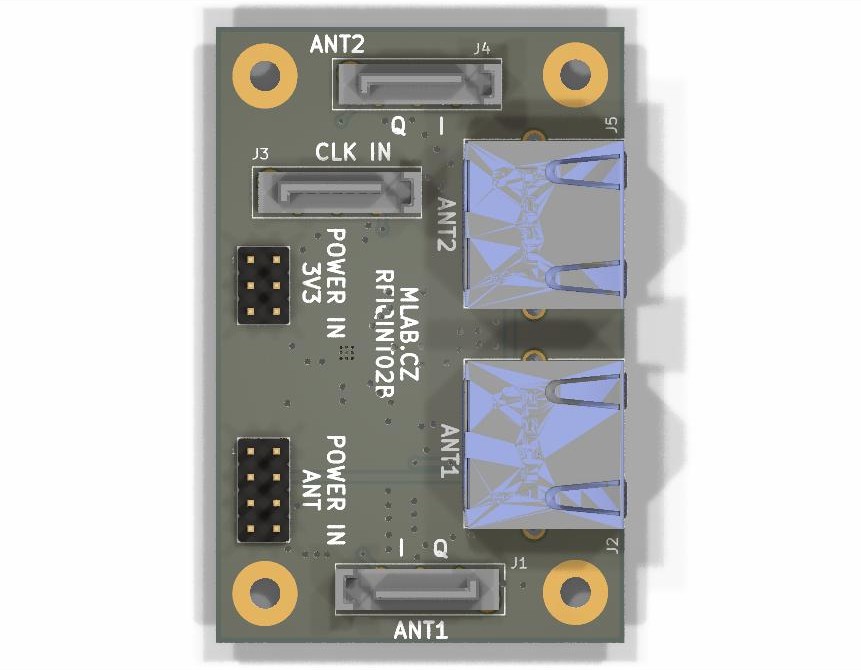

UTP cable RF signal I/Q interface for QFHMIX module with RJ45 connectors
Main components on the RFIQINT02
RFIQINT02 bill of materials (BOM)
42 components, 14 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Si53322 | QFN-16-1EP_3x3mm_P0.5mm_EP1.7x1.7mm_ThermalVias | U1 |
| 3 | SATA7-67491-1030 | SATA-7_THT_VERT_2 | J1, J3, J4 |
| 2 | RJ45_RJHSE-5384 | RJHSE-5384(RJ45) | J2, J5 |
| 1 | HEADER_2x03_PARALLEL | Straight_2x03 | J6 |
| 1 | HEADER_2x04_PARALLEL | Straight_2x04 | J7 |
| 2 | M4 | D_SMA | D1, D2 |
| 1 | BLM21PG331SN1D | R_0805_2012Metric | L1 |
| 14 | 100nF | R_0805_2012Metric | C1, C3, C4, C5, C6, C7, C8, C9 +6 |
| 1 | 1uF | C_0805_2012Metric | C2 |
| 1 | 47uF/6V3 | C_0805_2012Metric | C13 |
| 1 | 47uF/16 | CP_EIA-7132-28_AVX-C | C14 |
| 9 | 1k | R_0805_2012Metric | R1, R2, R3, R9, R10, R11, R12, R13 +1 |
| 1 | 100R | R_0805_2012Metric | R4 |
| 4 | 130R | R_0805_2012Metric | R5, R6, R7, R8 |
RFIQINT02 design files
The KiCad project lives in the mlab-modules/RFIQINT02 repository on GitHub; these links point at the commit this page was built from.
RFIQINT02: common questions
How big is the RFIQINT02 PCB?
The RFIQINT02 measures 40.1 × 60.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the RFIQINT02?
42 components, from 14 distinct parts. The full bill of materials is listed on this page.
Where can I download the RFIQINT02 design files?
From the mlab-modules/RFIQINT02 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the RFIQINT02 design in my own project?
Yes, under the terms of its GPL-3.0 license, which mlab-modules chose for the repository.
