SATABAL01
About the SATABAL01 PCB

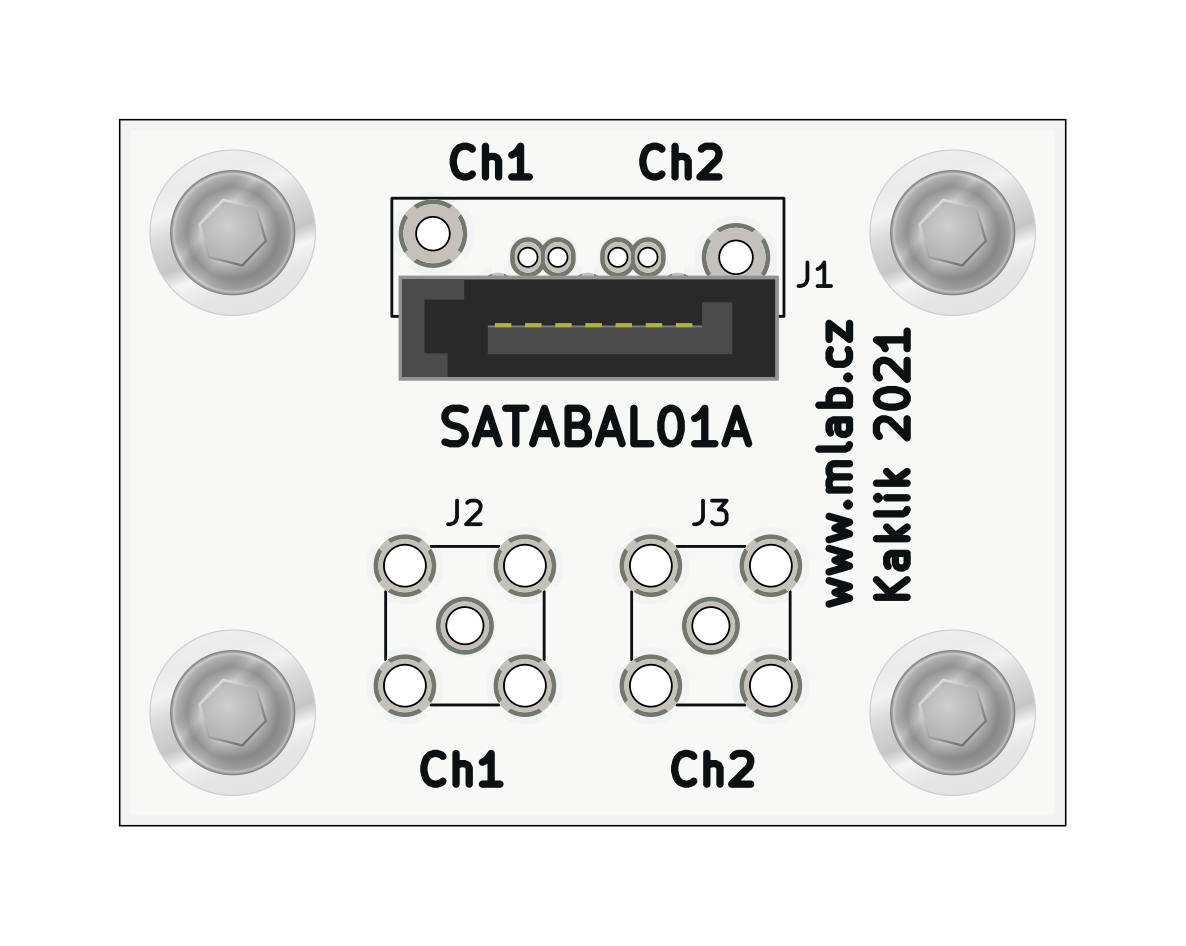

SATABAL01 is an open source PCB design by mlab-modules, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 40.1 × 30 mm, with 5 components from 3 distinct parts.
By type, the board carries 3 connectors and 2 transformers.
From the project
RF balun with unballanced MCX/SMA and balanced SATA connectors
SATABAL01 is a passive RF balun module designed to interface high-speed differential pairs used in SATA data lines with unbalanced coaxial transmission lines. This module is primarily intended for applications requiring measurement, testing, or signal routing of SATA signals over RF-grade coaxial cables.
- Converts differential SATA signals to unbalanced RF signals and vice versa - Suitable for signal bandwidths from 4.5 MHz to 3000 MHz - Dual-channel design for full SATA differential pair - Standard SATA connector (J1) - MCX or SMA coaxial connectors (J2, J3) - Uses Mini-Circuits…
SATABAL01 bill of materials (BOM)
5 components, 3 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SATA7-67491-1030 | SATA-7_THT_VERT_2 | J1 |
| 2 | Conn_Coaxial SMA or MCX | SMA_Amphenol_901-144_Vertical | J2, J3 |
| 2 | ETC1-1-13 | Transformer_MACOM_SM-22 | T1, T2 |
SATABAL01 design files
The KiCad project lives in the mlab-modules/SATABAL01 repository on GitHub; these links point at the commit this page was built from.
SATABAL01: common questions
How big is the SATABAL01 PCB?
The SATABAL01 measures 40.1 × 30 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the SATABAL01?
5 components, from 3 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the SATABAL01 design files?
From the mlab-modules/SATABAL01 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the SATABAL01 design in my own project?
Yes, under the terms of its GPL-3.0 license, which mlab-modules chose for the repository.
