About the STEPUPDC01 PCB
STEPUPDC01 is an open source PCB design by mlab-modules, published on GitHub. It is a 2-layer board measuring 19.8 × 40.1 mm, with 16 components from 14 distinct parts.
Other key parts include the MAX5026. By type, the board carries 5 capacitors, 4 resistors, 3 connectors, 2 diodes, 1 IC and 1 inductor.
From the project

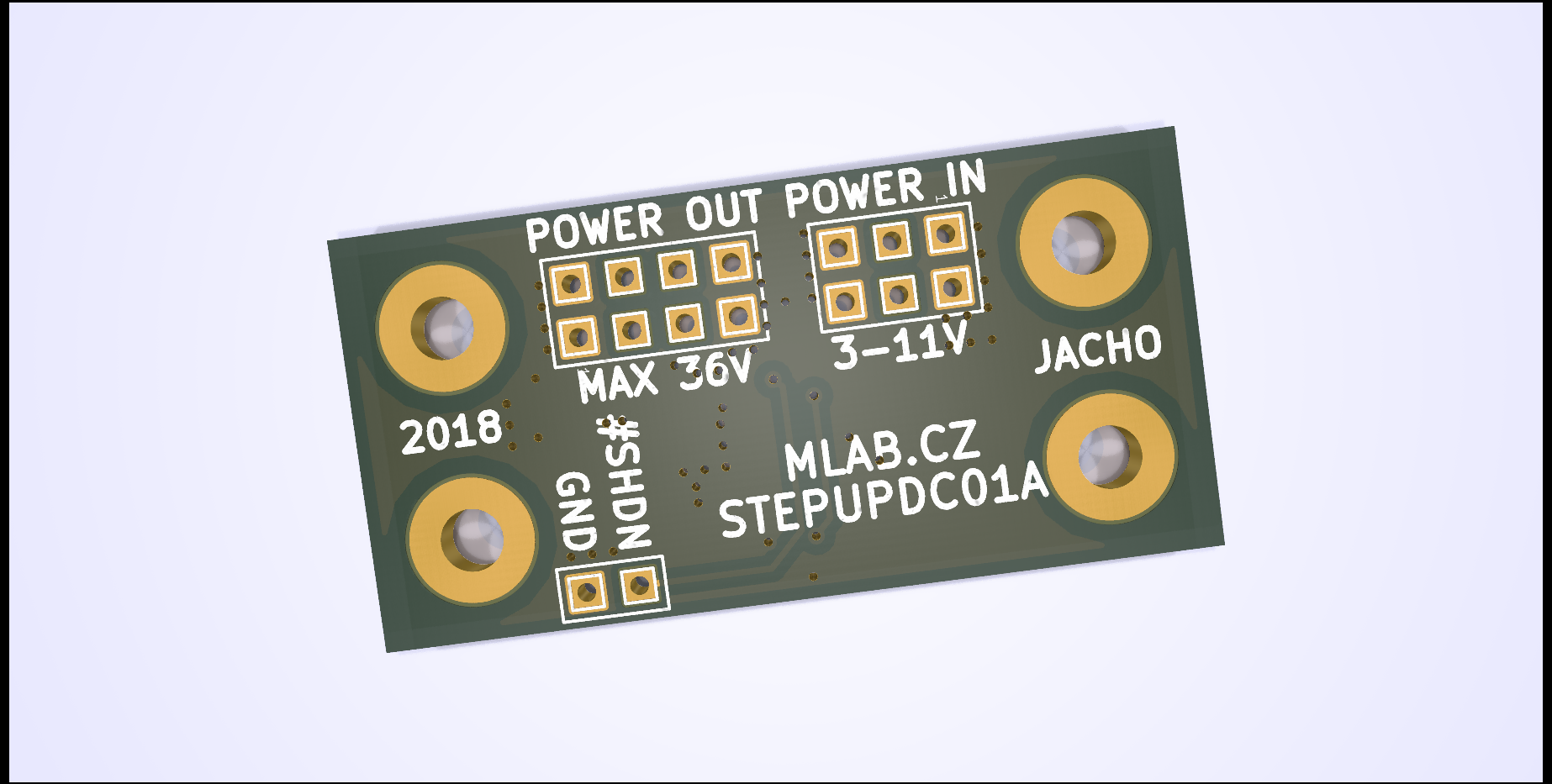

Step-Up DC/DC, Vin 3 V - 11 V, Vout up to 36 V, maximal output power 120mW
Vin 3 V - 11 V, Vout up to 36 V, maximal output power 120mW

Main components on the STEPUPDC01
STEPUPDC01 bill of materials (BOM)
16 components, 14 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MAX5026 | SOT-23-6_Handsoldering | U1 |
| 1 | HEADER_2x03_PARALLEL | Straight_2x03 | J1 |
| 1 | HEADER_1x02 | Straight_1x02 | J2 |
| 1 | HEADER_2x04_PARALLEL | Straight_2x04 | J4 |
| 1 | M4 | Diode-SMA_Standard | D1 |
| 1 | NSR05T40XV2T5G | D_SOD-523 | D2 |
| 1 | 47uH -DE0703-47 | DE0703 | L1 |
| 1 | 10uF | SMD-0805 | C1 |
| 2 | 1uF/50V | SMD-0805 | C3, C6 |
| 2 | 100nF | SMD-0805 | C4, C5 |
| 1 | 10k | SMD-0805 | R1 |
| 1 | 140k | SMD-0805 | R2 |
| 1 | 6k49 | SMD-0805 | R3 |
| 1 | 100R | SMD-0805 | R4 |
STEPUPDC01 design files
The KiCad project lives in the mlab-modules/STEPUPDC01 repository on GitHub; these links point at the commit this page was built from.
STEPUPDC01: common questions
How big is the STEPUPDC01 PCB?
The STEPUPDC01 measures 19.8 × 40.1 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the STEPUPDC01?
16 components, from 14 distinct parts. The full bill of materials is listed on this page.
Where can I download the STEPUPDC01 design files?
From the mlab-modules/STEPUPDC01 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the STEPUPDC01 design in my own project?
The repository has no license, so all rights stay with mlab-modules. Use it as a reference, and ask the author before reusing the design.
