STEPUPDC02
About the STEPUPDC02 PCB
STEPUPDC02 is an open source PCB design by mlab-modules, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 19.8 × 40.1 mm, with 14 components from 14 distinct parts.
Other key parts include the TPS61041. By type, the board carries 4 capacitors, 3 connectors, 3 resistors, 2 diodes, 1 IC and 1 inductor.
From the project

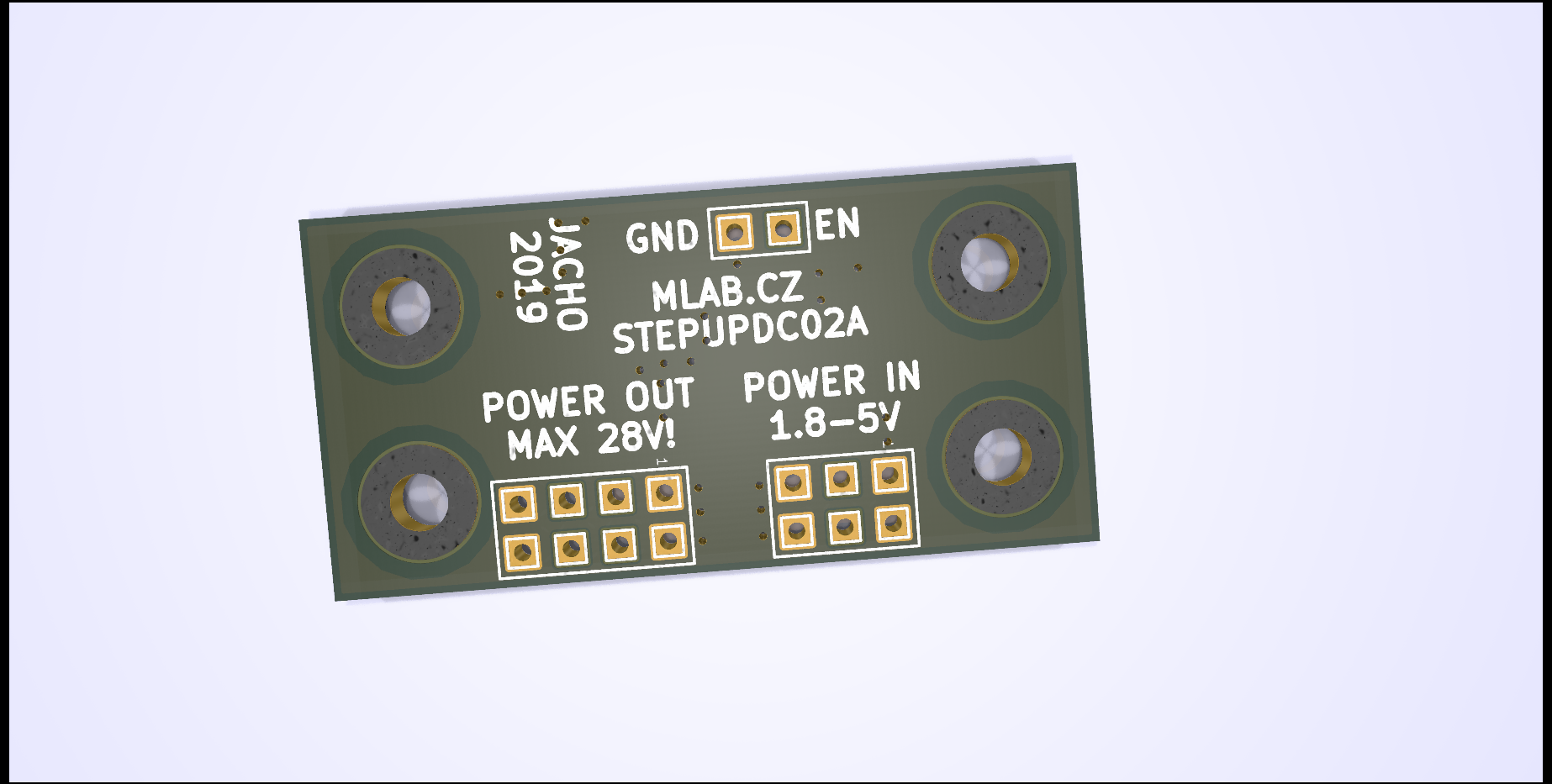

Step-up converter. Vin 1,8 V - 5 V, Vout up to 28 V.
Main components on the STEPUPDC02
STEPUPDC02 bill of materials (BOM)
14 components, 14 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TPS61041 TPS6104 | SOT-23-5_HandSoldering | U1 |
| 1 | POWER | Straight_2x03 | J1 |
| 1 | HEADER_1X02 HEADER_1x02 | Straight_2x01 | J2 |
| 1 | HEADER_2X04_PARALLEL HEADER_2x04_PARALLEL | Straight_2x04 | J4 |
| 1 | STPS340U STPS1L30U | D_SMB | D1 |
| 1 | ZSMD-5V6 | D_MiniMELF | D2 |
| 1 | 10U-DJNR5040-100-S 10u | DJNR5040 | L1 |
| 1 | 22P 22p | SMD-0805 | C1 |
| 1 | 1UF/50V 1uF/50V | SMD-0805 | C2 |
| 1 | 15UF/35V 15uF/35V | TantalC_SizeC_Reflow | C5 |
| 1 | 4U7 4u7 | SMD-0805 | C6 |
| 1 | 10K 10k | SMD-0805 | R1 |
| 1 | 1M8 470k | SMD-0805 | R2 |
| 1 | 80K6 120k | SMD-0805 | R4 |
