TTLLVDS01
About the TTLLVDS01 PCB
TTLLVDS01 is an open source PCB design by mlab-modules, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 40.1 × 19.8 mm, with 13 components from 8 distinct parts.
Other key parts include the SN65LVDS9638D. By type, the board carries 6 connectors, 4 resistors, 1 IC, 1 diode and 1 capacitor.
From the project

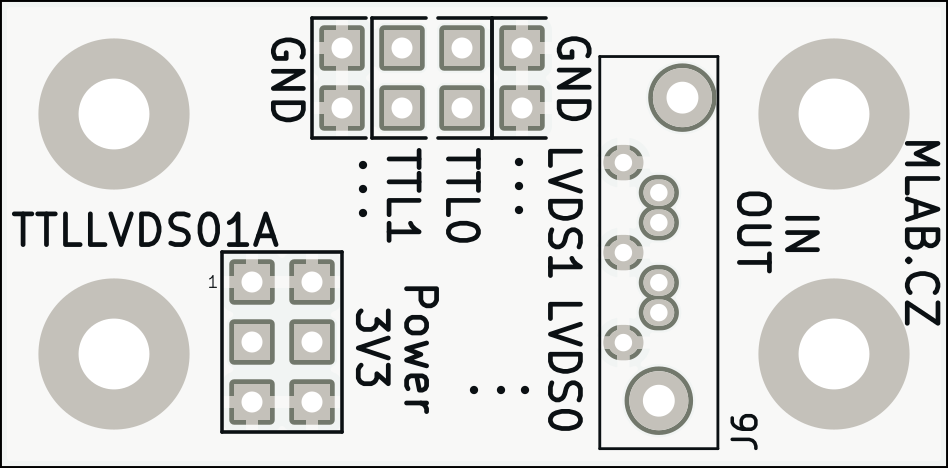

TTL to LVDS translating module.
TTLLVDS is TTL to LVDS and LVDS to TTL converter. Module can be used to connect a simple TTL signal to LVDS input. By changing the components, it can acts as LVDS to TTL convertor. To covert differencial LVDS signal to TTL output. Each module converts two signals.
The TTL signal is connected using a simple header. Differential LVDS signal is connected trought SATA connector and cable. Each sata connector contains two pairs of LVDS signals.
Main components on the TTLLVDS01
TTLLVDS01 bill of materials (BOM)
13 components, 8 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SN65LVDS9638D | SOIC-8_3.9x4.9mm_P1.27mm | U1 |
| 1 | JUMP_3X2 | Straight_2x03 | J1 |
| 4 | HEADER_2x01_PARALLEL | Straight_2x01 | J2, J3, J4, J5 |
| 1 | SATA7-67491-1030 | SATA-7_THT_VERT_2 | J6 |
| 1 | BZV55C-3,6V | D_MiniMELF | D1 |
| 1 | 100nF | R_0805_2012Metric | C2 |
| 2 | 33R | R_0805_2012Metric | R1, R2 |
| 2 | 100 | R_0805_2012Metric | R3, R4 |
TTLLVDS01 design files
The KiCad project lives in the mlab-modules/TTLLVDS01 repository on GitHub; these links point at the commit this page was built from.
- Layouthw/sch_pcb/TTLLVDS01.kicad_pcb
- Schematichw/sch_pcb/TTLLVDS01.kicad_sch
TTLLVDS01: common questions
How big is the TTLLVDS01 PCB?
The TTLLVDS01 measures 40.1 × 19.8 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the TTLLVDS01?
13 components, from 8 distinct parts. The full bill of materials is listed on this page.
Where can I download the TTLLVDS01 design files?
From the mlab-modules/TTLLVDS01 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the TTLLVDS01 design in my own project?
Yes, under the terms of its GPL-3.0 license, which mlab-modules chose for the repository.
