OpenCAPI-to-PCIe
About the OpenCAPI-to-PCIe PCB
OpenCAPI-to-PCIe is an open source PCB design by mwrnd, published on GitHub under the GPL-2.0 license. It is a 4-layer board measuring 51.3 × 40.4 mm, with 9 components from 9 distinct parts.
By type, the board carries 4 test points, 3 connectors, 1 capacitor and 1 resistor.
From the project

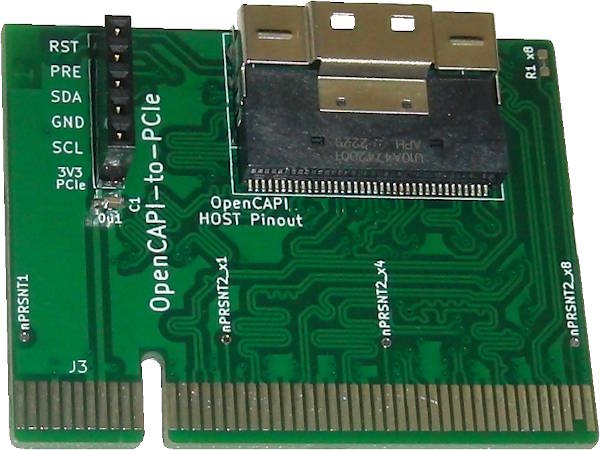

OpenCAPI-Compatible SlimSAS 8x to PCIe Endpoint Adapter
The Open Coherant Accelerator Processor Interface (OpenCAPI) was a standard that had FPGA-based Advanced Accelerated Cable (AAC) Add-In cards such as ADM-PCIE-9H3, ADM-PCIE-9H7, ADM-PCIE-9V3, ADM-PCIE-9V5, BittWare XUP-VV4, BittWare XUP-VVH, and Nvidia Innova-2 Flex.
The OpenCAPI SlimSAS interface is based on PCI-Express. This project is an adapter capable of connecting such FPGA boards to host systmes with PCIe.
OpenCAPI-to-PCIe bill of materials (BOM)
9 components, 9 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | OpenCAPI_AAC_Host | SlimSAS_8x_RA_U10-A474 | J1 |
| 1 | Conn_01x06 | PinHeader_1x06_P2.54mm_Vertical | J2 |
| 1 | Bus_PCI_Express_x8 | BUS_PCIexpress_x8 | J3 |
| 1 | nPRSNT1 | TestPoint_THTPad_D1.0mm_Drill0.5mm | TP1 |
| 1 | nPRSNT2_x1 | TestPoint_THTPad_D1.0mm_Drill0.5mm | TP2 |
| 1 | nPRSNT2_x4 | TestPoint_THTPad_D1.0mm_Drill0.5mm | TP3 |
| 1 | nPRSNT2_x8 | TestPoint_THTPad_D1.0mm_Drill0.5mm | TP5 |
| 1 | 0u1 | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C1 |
| 1 | x8 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R1 |
OpenCAPI-to-PCIe design files
The KiCad project lives in the mwrnd/OpenCAPI-to-PCIe repository on GitHub; these links point at the commit this page was built from.
- LayoutOpenCAPI-to-PCIe.kicad_pcb
- SchematicOpenCAPI-to-PCIe.kicad_sch
OpenCAPI-to-PCIe: common questions
How big is the OpenCAPI-to-PCIe PCB?
The OpenCAPI-to-PCIe measures 51.3 × 40.4 mm, has 4 copper layers and is 1.6062 mm thick.
How many components are on the OpenCAPI-to-PCIe?
9 components, from 9 distinct parts. The full bill of materials is listed on this page.
Where can I download the OpenCAPI-to-PCIe design files?
From the mwrnd/OpenCAPI-to-PCIe repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the OpenCAPI-to-PCIe design in my own project?
Yes, under the terms of its GPL-2.0 license, which mwrnd chose for the repository.
