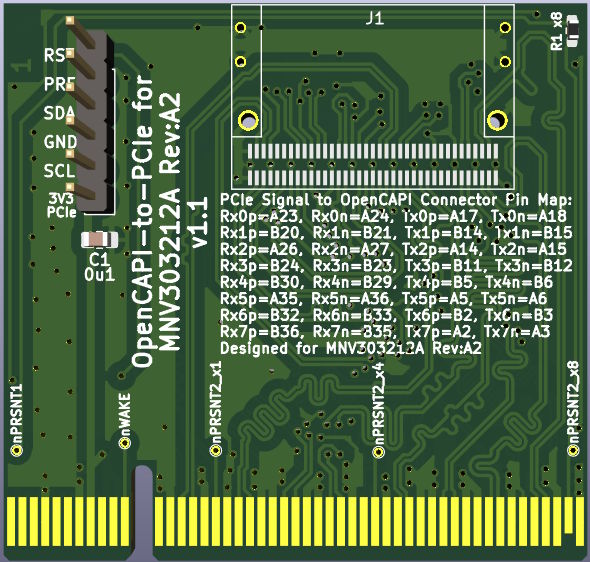

OpenCAPI-to-PCIe for MNV303212A RevA2
About the OpenCAPI-to-PCIe for MNV303212A RevA2 PCB
OpenCAPI-to-PCIe for MNV303212A RevA2 is an open source PCB design by mwrnd, published on GitHub under the GPL-2.0 license. It is a 4-layer board measuring 51.3 × 49 mm, with 10 components from 10 distinct parts.
By type, the board carries 5 test points, 3 connectors, 1 capacitor and 1 resistor.
From the project
OpenCAPI-Compatible SlimSAS 8x to PCIe Endpoint Adapter for the Innova-2 SmartNIC MNV303212A-ADLT Rev:A2
Work-In-Progress: Notes need updating. v1.1 Gerbers need to be manufactured and tested.
This is a variant of the OpenCAPI-to-PCIe project optimized for the Innova-2 MNV303212A Rev:A2.
The Open Coherant Accelerator Processor Interface (OpenCAPI) was a standard that had FPGA-based Advanced Accelerated Cable (AAC) Add-In cards such as ADM-PCIE-9H3, ADM-PCIE-9H7, ADM-PCIE-9V3, ADM-PCIE-9V5, BittWare XUP-VV4, BittWare XUP-VVH, and Nvidia Innova-2 Flex SmartNIC.
OpenCAPI-to-PCIe for MNV303212A RevA2 bill of materials (BOM)
10 components, 10 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | OpenCAPI_AAC_Host | SlimSAS_8x_RA_U10-A474 | J1 |
| 1 | Conn_01x06 | PinHeader_1x06_P2.54mm_Vertical | J2 |
| 1 | Bus_PCI_Express_x8 | BUS_PCIexpress_x8 | J3 |
| 1 | nPRSNT1 | TestPoint_THTPad_D1.0mm_Drill0.5mm | TP1 |
| 1 | nPRSNT2_x1 | TestPoint_THTPad_D1.0mm_Drill0.5mm | TP2 |
| 1 | nPRSNT2_x4 | TestPoint_THTPad_D1.0mm_Drill0.5mm | TP3 |
| 1 | nWAKE | TestPoint_THTPad_D1.0mm_Drill0.5mm | TP4 |
| 1 | nPRSNT2_x8 | TestPoint_THTPad_D1.0mm_Drill0.5mm | TP5 |
| 1 | 0u1 | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C1 |
| 1 | x8 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R1 |
OpenCAPI-to-PCIe for MNV303212A RevA2 design files
The KiCad project lives in the mwrnd/OpenCAPI-to-PCIe_for_MNV303212A_RevA2 repository on GitHub; these links point at the commit this page was built from.
OpenCAPI-to-PCIe for MNV303212A RevA2: common questions
How big is the OpenCAPI-to-PCIe for MNV303212A RevA2 PCB?
The OpenCAPI-to-PCIe for MNV303212A RevA2 measures 51.3 × 49 mm, has 4 copper layers and is 1.6062 mm thick.
How many components are on the OpenCAPI-to-PCIe for MNV303212A RevA2?
10 components, from 10 distinct parts. The full bill of materials is listed on this page.
Where can I download the OpenCAPI-to-PCIe for MNV303212A RevA2 design files?
From the mwrnd/OpenCAPI-to-PCIe_for_MNV303212A_RevA2 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the OpenCAPI-to-PCIe for MNV303212A RevA2 design in my own project?
Yes, under the terms of its GPL-2.0 license, which mwrnd chose for the repository.
