Articulation70
About the Articulation70 PCB
Articulation70 is an open source PCB design by mylestunglee, published on GitHub. It is a 2-layer board measuring 216.6 × 96 mm, with 103 components from 56 distinct parts.
Other key parts include the EliteC. By type, the board carries 35 switches, 5 resistors, 4 jumpers, 3 diodes, 1 IC and 1 connector.
It belongs with the keyboards designs in this gallery.
From the project

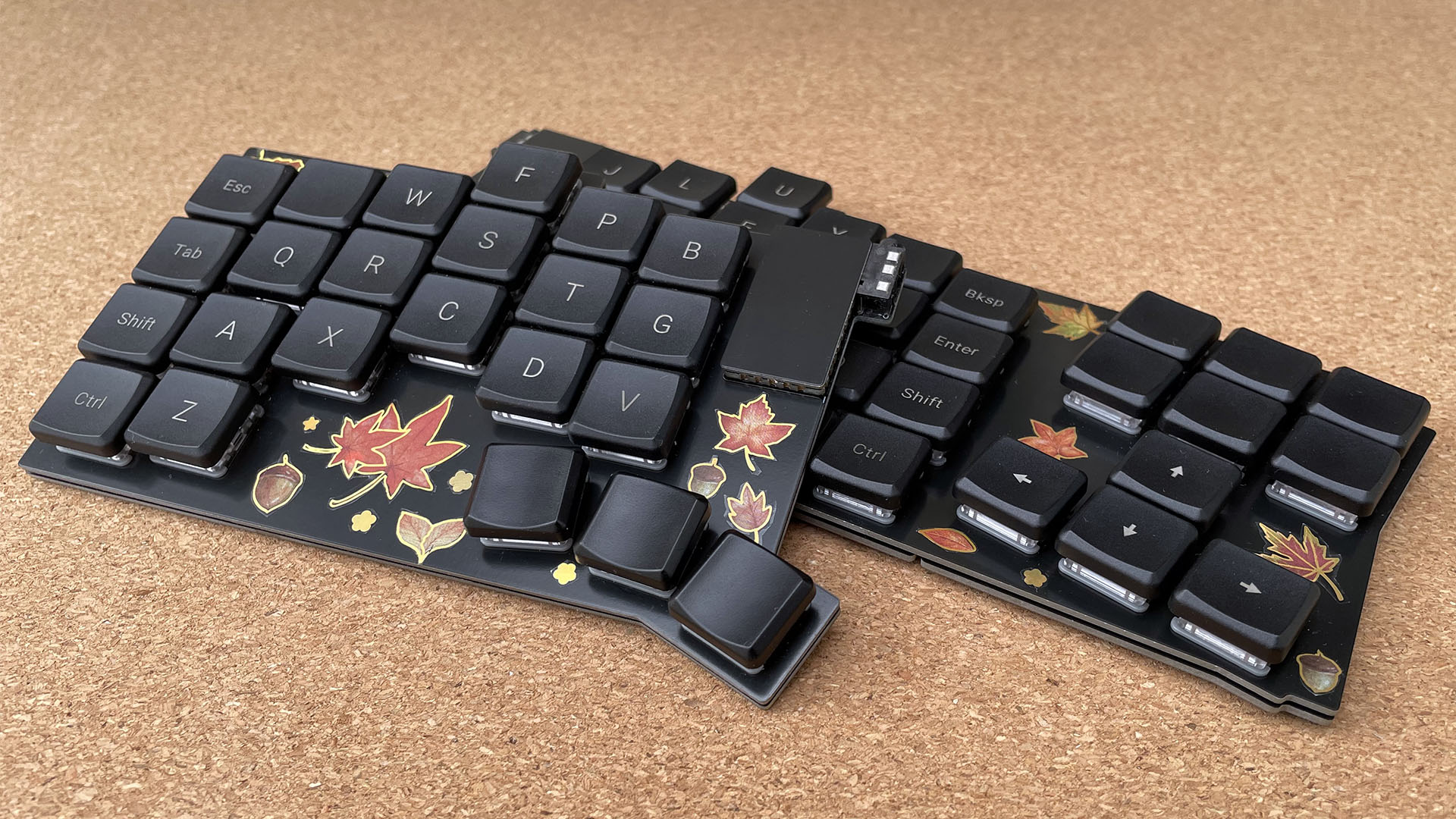

A mechanical keyboard
The articulation70 keyboard is a successor to the articulation80, with LEDs and a more personalised layout.
It features: - Variable pinky stagger, supporting ±1 mm vertically offsetted soldering configurations. - 3 × 6 main body, 3 thumb switches, 2 corner switches and 3 × 4 numpad layout. - Kailh Choc V1 hot-swap support. - A breakaway-able number pad. - Serial or I2C connection between halves. - Pro Micro-compatible controller support, however a micro-controller. with more pins are required to operate LEDs 2 and 3. - 3 LEDs - Reversible PCB to reduce manufacturing costs for hobby usage.
Main components on the Articulation70
Articulation70 bill of materials (BOM)
103 components, 56 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | EliteC | EliteC | U1 |
| 1 | TRRS | PJ-320A | J1 |
| 1 | H1 | RightPlate | H1 |
| 1 | H2 | LeftPlate | H2 |
| 1 | H2 | ControllerPlate | H3 |
| 17 | ~ | Switch3DLeft | HL11, HL12, HL13, HL14, HL15, HL21, HL22, HL23 +9 |
| 6 | ~ | SwitchDoubleLeft | HL16, HL26, HL35, HL36, HL45, HL46 |
| 27 | ~ | Switch3DRight | HR11, HR12, HR13, HR14, HR15, HR17, HR18, HR19 +19 |
| 1 | J1 | Jumper | JP1 |
| 1 | J2 | JumperSplit | JP2 |
| 1 | J3 | Jumper | JP3 |
| 1 | J4 | JumperSplit | JP4 |
| 1 | 11 | Switch | SW11 |
| 1 | 12 | Switch | SW12 |
| 1 | 13 | Switch | SW13 |
| 1 | 14 | Switch | SW14 |
| 1 | 15 | Switch | SW15 |
| 1 | 16 | SwitchDoubleRight | SW16 |
| 1 | 17 | Switch | SW17 |
| 1 | 18 | Switch | SW18 |
Show 36 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 19 | Switch | SW19 |
| 1 | 21 | Switch | SW21 |
| 1 | 22 | Switch | SW22 |
| 1 | 23 | Switch | SW23 |
| 1 | 24 | Switch | SW24 |
| 1 | 25 | Switch | SW25 |
| 1 | 26 | SwitchDoubleRight | SW26 |
| 1 | 27 | Switch | SW27 |
| 1 | 28 | Switch | SW28 |
| 1 | 29 | Switch | SW29 |
| 1 | 31 | Switch | SW31 |
| 1 | 32 | Switch | SW32 |
| 1 | 33 | Switch | SW33 |
| 1 | 34 | Switch | SW34 |
| 1 | 35 | SwitchDoubleRight | SW35 |
| 1 | 36 | SwitchDoubleRight | SW36 |
| 1 | 37 | Switch | SW37 |
| 1 | 38 | Switch | SW38 |
| 1 | 39 | Switch | SW39 |
| 1 | 41 | Switch | SW41 |
| 1 | 42 | Switch | SW42 |
| 1 | 43 | Switch | SW43 |
| 1 | 45 | SwitchDoubleRight | SW45 |
| 1 | 46 | SwitchDoubleRight | SW46 |
| 1 | 47 | Switch | SW47 |
| 1 | 48 | Switch | SW48 |
| 1 | 49 | Switch | SW49 |
| 1 | PTS526 | PTS526 | SWRST1 |
| 1 | LED1 | HLMP-1401 | D1 |
| 1 | LED2 | HLMP-1401 | D2 |
| 1 | LED3 | HLMP-1401 | D3 |
| 1 | R1 | SDR18 | R1 |
| 1 | R2 | SDR18 | R2 |
| 1 | R3 | SDR18 | R3 |
| 1 | R4 | SDR18 | R4 |
| 1 | R5 | SDR18 | R5 |
Articulation70 design files
The KiCad project lives in the mylestunglee/articulation70 repository on GitHub; these links point at the commit this page was built from.
- Layoutpcb/keyboard.kicad_pcb
- Schematicpcb/keyboard.kicad_sch
Articulation70: common questions
How big is the Articulation70 PCB?
The Articulation70 measures 216.6 × 96 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Articulation70?
103 components, from 56 distinct parts. The full bill of materials is listed on this page.
Where can I download the Articulation70 design files?
From the mylestunglee/articulation70 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Articulation70 design in my own project?
The repository has no license, so all rights stay with mylestunglee. Use it as a reference, and ask the author before reusing the design.
