Rainbow100-memory
About the Rainbow100-memory PCB
Rainbow100-memory is an open source PCB design by na103, published on GitHub under the CC-BY-NC-4.0 license. It is a 4-layer board measuring 254 × 74 mm, with 106 components from 28 distinct parts.
By type, the board carries 35 capacitors, 23 resistors, 1 connector, 1 switch and 1 inductor.
From the project

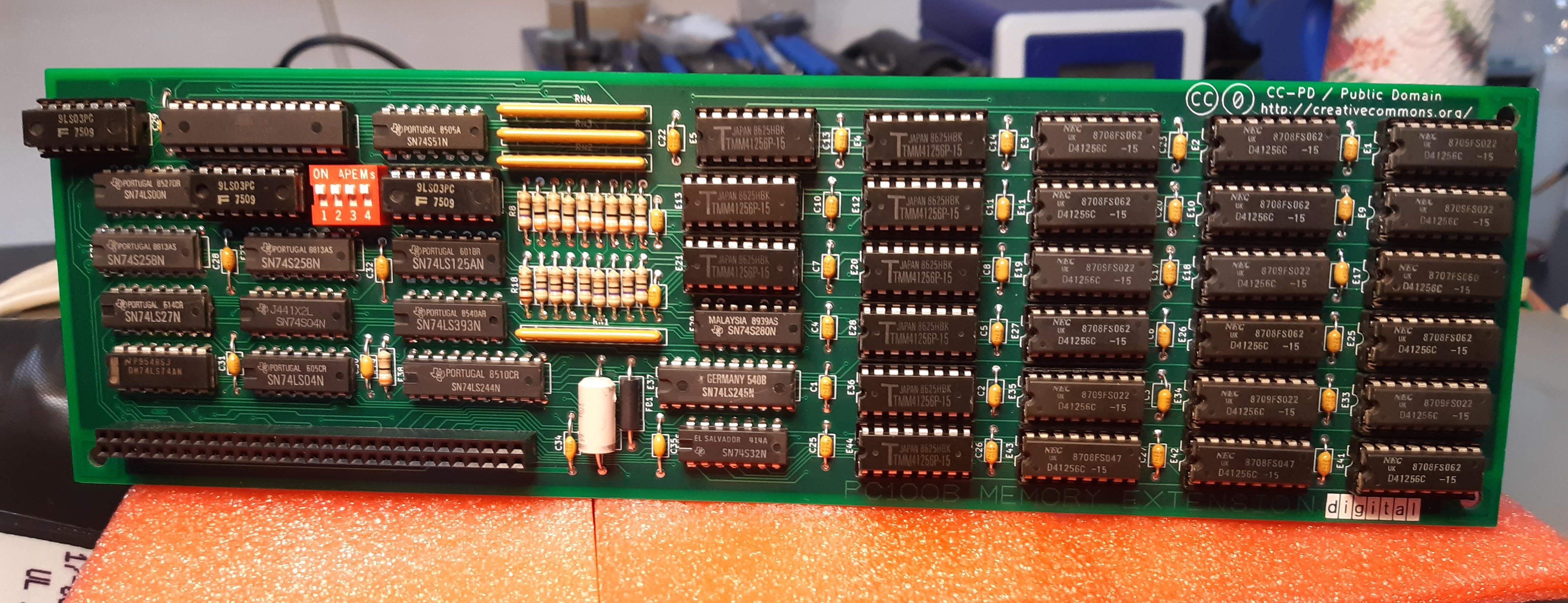

Digital Rainbow 100B memory expansion remake
This expansion board it can reach up to 896Kb of RAM. differently to 8088 XT PCs, Rainbow 100 architecture is not limited at 640Kb of memory. Kicad schematics is derived from Tony Duell's notes and at the end verified with original DEC schematics. 95% of the components and traces have been rebuilt respecting the original position; only the bipolar Prom E7 whos entrusted control logic for the memory banks switch has been replaced with a extra large GAL22V10.
Rainbow100-memory bill of materials (BOM)
106 components, 28 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SSW-126-01-T-D | SAMTEC_SSW-126-01-T-D | J1 |
| 27 | UPD41256C | DIP-16_W7.62mm | E1, E2, E3, E4, E5, E9, E10, E11 +19 |
| 1 | 74LS51 | DIP-14_W7.62mm | E6 |
| 1 | GAL22V10D-15LP | DIP-24_W7.62mm | E7 |
| 3 | 74LS03 | DIP-14_W7.62mm | E8, E14, E15 |
| 1 | 74LS00 | DIP-14_W7.62mm | E16 |
| 1 | 74LS125 | DIP-14_W7.62mm | E22 |
| 2 | 74LS258 | DIP-16_W7.62mm | E23, E24 |
| 1 | 74LS280 | DIP-14_W7.62mm | E29 |
| 1 | 74LS393 | DIP-14_W7.62mm | E30 |
| 2 | 74LS04 | DIP-14_W7.62mm | E31, E39 |
| 1 | 74LS27 | DIP-14_W7.62mm | E32 |
| 1 | 74LS245 | DIP-20_W7.62mm | E37 |
| 1 | 74LS244 | DIP-20_W7.62mm | E38 |
| 1 | 74LS74 | DIP-14_W7.62mm | E40 |
| 1 | 74LS32 | DIP-14_W7.62mm | E45 |
| 1 | SW_DIP_x04 | SW_DIP_x04 | SW1 |
| 1 | 3 Omh 2.4 uH | L_Axial_L9.5mm_D4.0mm_P15.24mm_Horizontal_Fastron_SMCC | FB1 |
| 27 | 220nF | C_Axial_L3.8mm_D2.6mm_P7.50mm_Horizontal | C1, C2, C3, C4, C5, C6, C7, C8 +19 |
| 5 | 47nF | C_Axial_L3.8mm_D2.6mm_P10.00mm_Horizontal | C28, C29, C30, C31, C32 |
Show 8 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 10uF | C_Axial_L12.0mm_D6.5mm_P20.00mm_Horizontal | C33 |
| 2 | 10nF | C_Axial_L3.8mm_D2.6mm_P10.00mm_Horizontal | C34, C35 |
| 9 | 47 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R1, R2, R3, R4, R5, R6, R7, R8 +1 |
| 9 | 39 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R10, R11, R12, R13, R14, R15, R16, R17 +1 |
| 1 | 100 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R18 |
| 1 | 4.7k | R_Array_SIP10 | RN1 |
| 2 | 1k | R_Array_SIP10 | RN2, RN3 |
| 1 | 470 | R_Array_SIP10 | RN4 |
Rainbow100-memory design files
The KiCad project lives in the na103/rainbow100-memory repository on GitHub; these links point at the commit this page was built from.
Rainbow100-memory: common questions
How big is the Rainbow100-memory PCB?
The Rainbow100-memory measures 254 × 74 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Rainbow100-memory?
106 components, from 28 distinct parts. The full bill of materials is listed on this page.
Where can I download the Rainbow100-memory design files?
From the na103/rainbow100-memory repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Rainbow100-memory design in my own project?
It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
