Nandgatepfal
About the Nandgatepfal PCB
Nandgatepfal is an open source PCB design by nagasunanditha, published on GitHub. It is a board, with 10 components from 3 distinct parts.
From the project

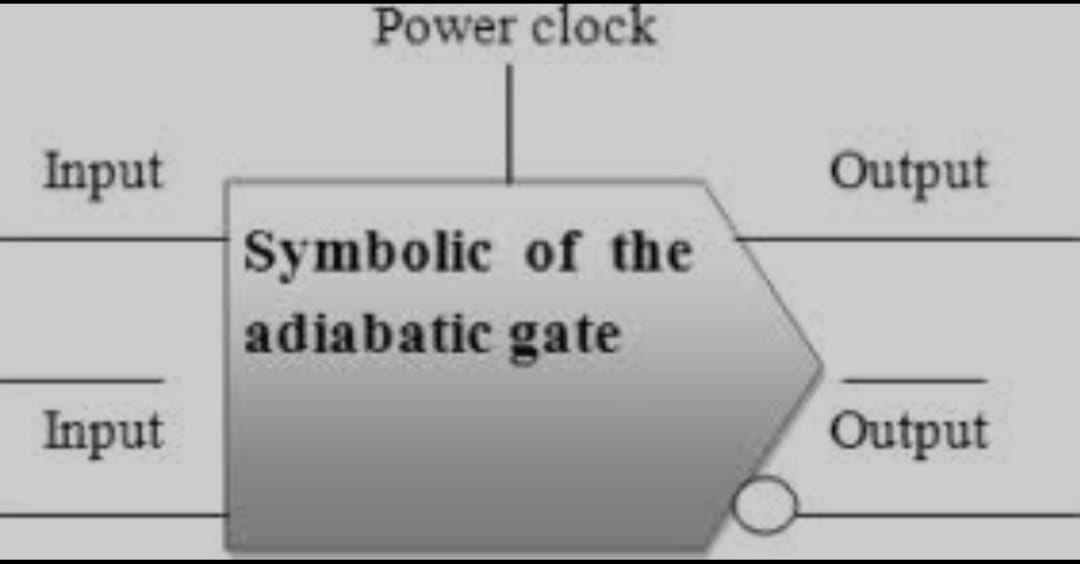

Here are some specifications of a NAND gate:
Here are some specifications of a NAND gate:
Voltage supply: The voltage supply for a NAND gate is 1.8 V. Propagation delay: The propagation delay for each gate is 10Us. Maximum toggle speed: The maximum toggle speed is 100kHZ. Power utilization: The power utilization for each gate is 10 mW # Open-Source-Tools-Used
- eSim - eSim (previously known as Oscad / FreeEDA) is a free/libre and open source EDA tool for circuit design, simulation, analysis and PCB design. It is an integrated tool built using free/libre and open source software such as KiCad, Ngspice and GHDL. eSim is released under…
Nandgatepfal bill of materials (BOM)
10 components, 3 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 6 | sky130_fd_pr__nfet3_01v8 | SC1, SC2, SC4, SC6, SC7, SC8 | |
| 2 | sky130_fd_pr__pfet3_01v8 | SC3, SC5 | |
| 2 | capacitor_polarised | C1, C2 |
