Usb host pmod
About the Usb host pmod PCB
Usb host pmod is an open source PCB design by nand2mario, published on GitHub under the Apache-2.0 license. It is a 2-layer board measuring 38.6 × 17.4 mm, with 16 components from 9 distinct parts.
Other key parts include the QX2303L50T. By type, the board carries 8 resistors, 3 connectors, 2 capacitors, 1 IC, 1 diode and 1 inductor.
From the project

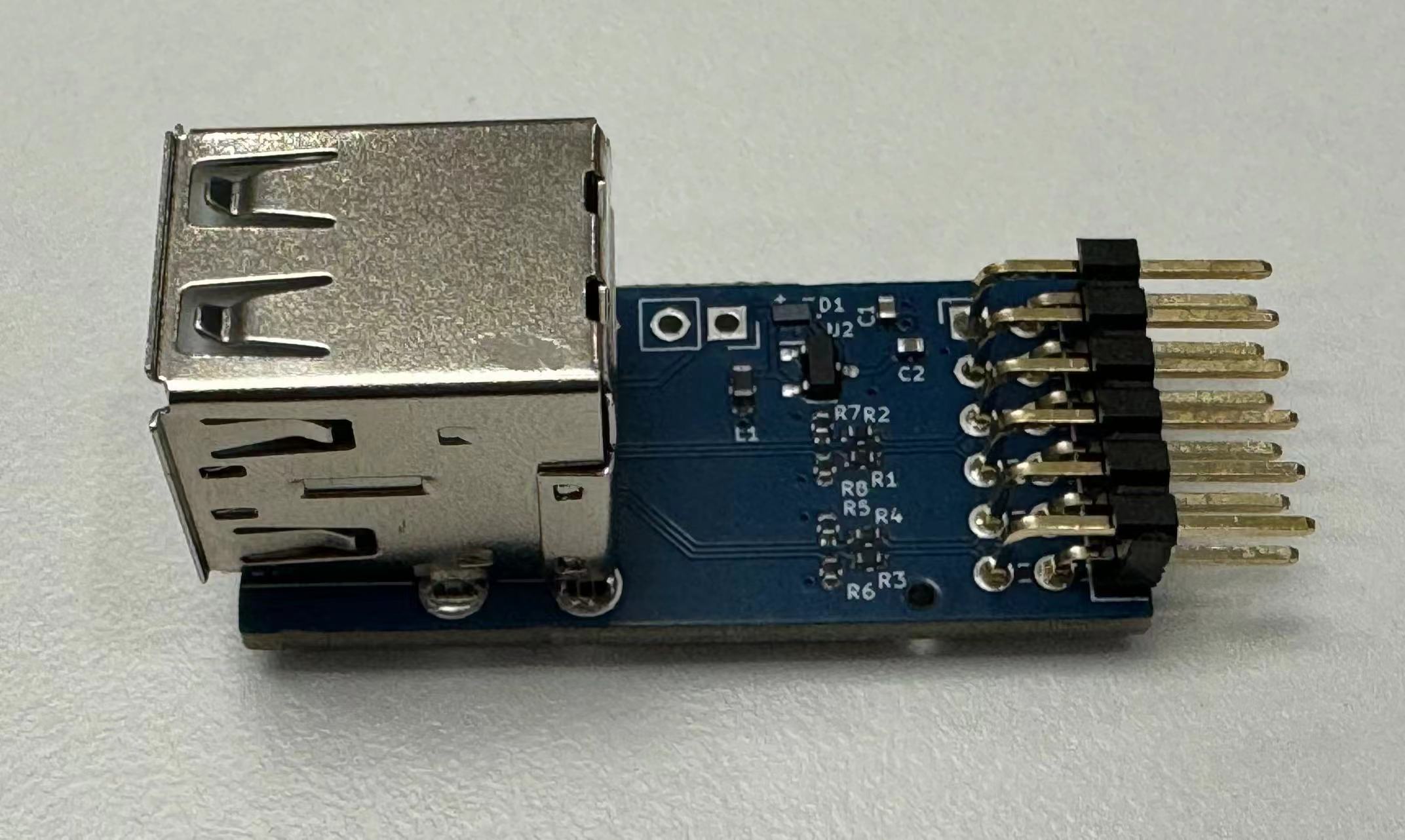

A dual-socket USB host PMOD module.
Design sources for a dual-socket USB host PMOD module, intended for interfacing USB devices on FPGA boards using usbhidhost.
Included are KiCAD sources and production files(Gerber/BOM/PNP).
The easiest way to obtain the module is by following the guide to directly order from JLCPCB.
This little design is done by @regymm0, @ico_TC and @nand2mario.
Main components on the Usb host pmod
Usb host pmod bill of materials (BOM)
16 components, 9 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | QX2303L50T | SOT-23 | U2 |
| 1 | C698206 USB_A_Stacked | USB_A_Wuerth_61400826021_Horizontal_Stacked | J1 |
| 1 | CONN_02X06_ODD_EVEN Conn_02x06_Odd_Even | PinHeader_2x06_P2.54mm_Horizontal | J2 |
| 1 | CONN_01X02_SOCKET Conn_01x02_Socket | PinSocket_1x02_P2.54mm_Vertical | J3 |
| 1 | 1N5817/1N5819/1N5822 | Nexperia_DSN1608-2_1.6x0.8mm | D1 |
| 1 | 10UH 10uH | L_0603_1608Metric | L1 |
| 2 | 10UF 10uF | C_0402_1005Metric | C1, C2 |
| 4 | 22 | R_0402_1005Metric | R1, R2, R3, R4 |
| 4 | 15K | R_0402_1005Metric | R5, R6, R7, R8 |
