About the Pifire ads board

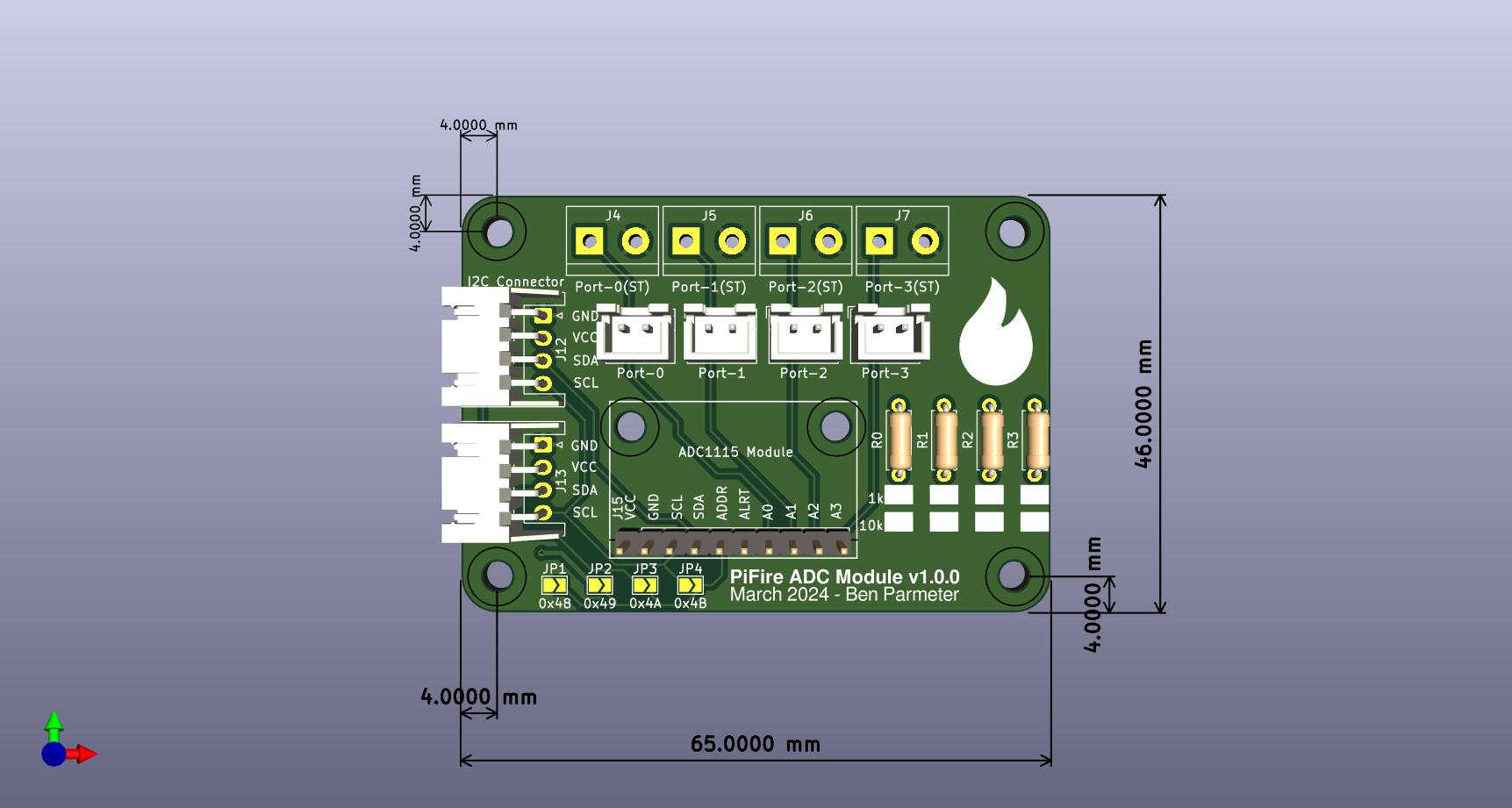

Pifire ads board is an open source PCB design by nebhead, published on GitHub under the MIT license. It is a 2-layer board measuring 65 × 46 mm, with 19 components from 15 distinct parts.
By type, the board carries 11 connectors, 4 jumpers and 4 resistors.
From the project
This PCB provides an easy way to add an ADS1x15 module to your PiFire build. This allows you to have up to four different modules in your system, and can be chained together via I2C. Use the solder jumpers to select a unique I2C address for each of the modules in your system (def
This PCB provides an easy way to add an ADS1x15 module to your PiFire build. This allows you to have up to four different modules in your system, and can be chained together via I2C. Use the solder jumpers to select a unique I2C address for each of the modules in your system (default is 0x48). The PCB provides options for JST XH connectors or screw terminals (or if you want to solder wires directly to the board you can always do that too). Lastly, there are boxes where you can designate the value of the populated resistors, for easy reference once you've built it out.
Pifire ads board bill of materials (BOM)
19 components, 15 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Port-0 | JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical | J0 |
| 1 | Port-1 | JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical | J1 |
| 1 | Port-2 | JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical | J2 |
| 1 | Port-3 | JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical | J3 |
| 1 | Port-0(ST) | TerminalBlock_bornier-2_P5.08mm | J4 |
| 1 | Port-1(ST) | TerminalBlock_bornier-2_P5.08mm | J5 |
| 1 | Port-2(ST) | TerminalBlock_bornier-2_P5.08mm | J6 |
| 1 | Port-3(ST) | TerminalBlock_bornier-2_P5.08mm | J7 |
| 2 | I2C Connector | JST_XH_S4B-XH-A_1x04_P2.50mm_Horizontal | J12, J13 |
| 1 | ADC1115 Module | PinHeader_1x10_P2.54mm_Vertical | J15 |
| 1 | 0x48 | SolderJumper-2_P1.3mm_Open_TrianglePad1.0x1.5mm | JP1 |
| 1 | 0x49 | SolderJumper-2_P1.3mm_Open_TrianglePad1.0x1.5mm | JP2 |
| 1 | 0x4A | SolderJumper-2_P1.3mm_Open_TrianglePad1.0x1.5mm | JP3 |
| 1 | 0x4B | SolderJumper-2_P1.3mm_Open_TrianglePad1.0x1.5mm | JP4 |
| 4 | 1k/10k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R0, R1, R2, R3 |
Pifire ads board design files
The KiCad project lives in the nebhead/pifire-ads-board repository on GitHub; these links point at the commit this page was built from.
- Layoutpifire-ads-board.kicad_pcb
- Schematicpifire-ads-board.kicad_sch
Pifire ads board: common questions
How big is the Pifire ads board?
The Pifire ads board measures 65 × 46 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Pifire ads board?
19 components, from 15 distinct parts. The full bill of materials is listed on this page.
Where can I download the Pifire ads board design files?
From the nebhead/pifire-ads-board repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Pifire ads board design in my own project?
Yes, under the terms of its MIT license, which nebhead chose for the repository.
