Pifire relay module-SSR is an open source PCB design by nebhead, published on GitHub under the MIT license. It is a 2-layer board measuring 65 × 46 mm, with 21 components from 10 distinct parts.
By type, the board carries 8 resistors, 4 transistors, 4 relays, 3 fuses and 2 connectors.
From the project

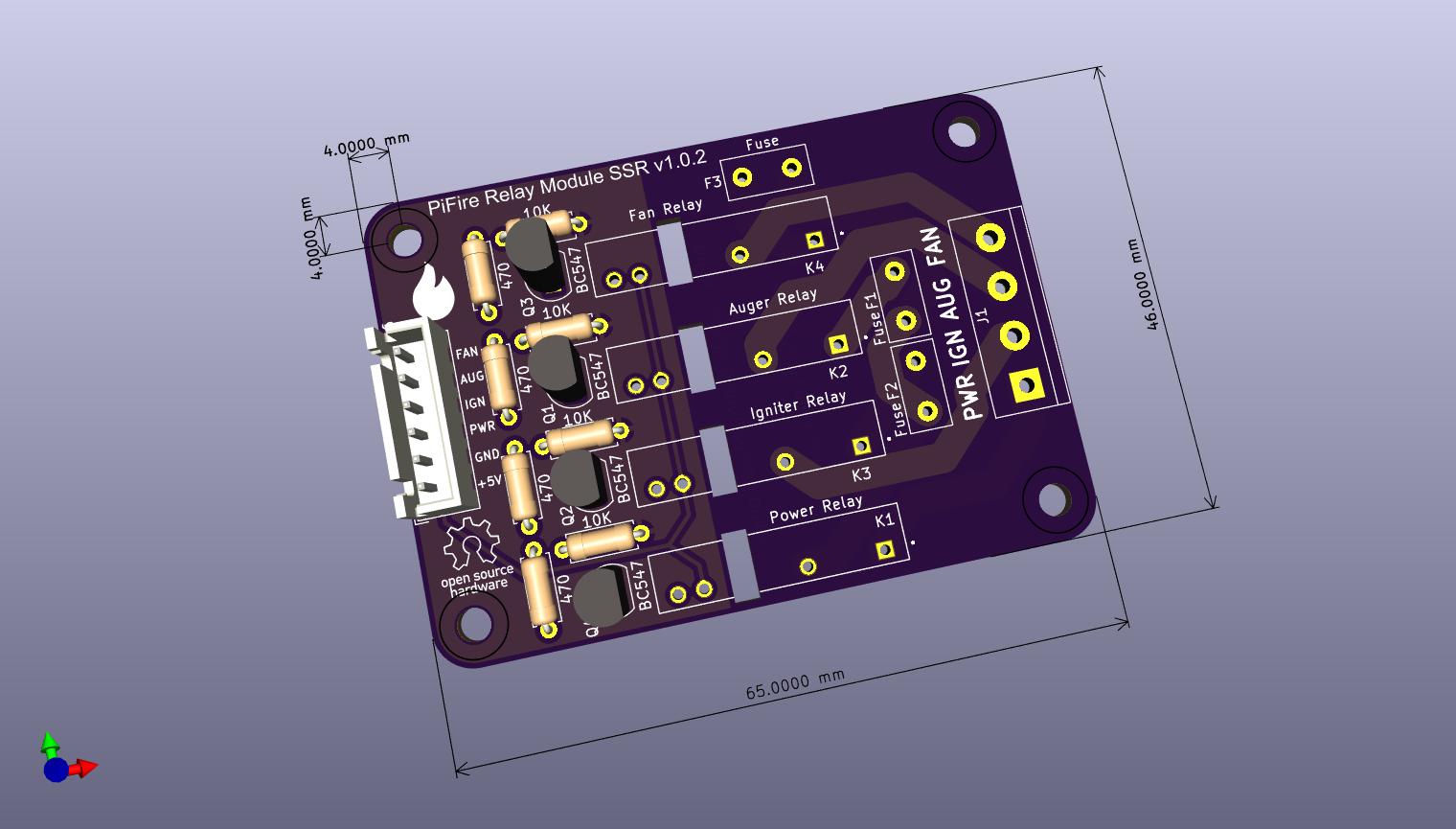

PiFire Solid State Relay Module PCB
This PCB is designed to support mechanical relays for controlling incoming Power(L) to the Igniter, Auger, and AC Fan. This board uses compact solid state relays that are able to handle high power. This is an alternative to using an off the shelf relay module which simplifies the wiring and even allows you to use the OEM harness.
The design intent for this board was to make a DIY accessible PCB that can be more easily put together by the maker/enthusiast of almost any skill level. Full size components are used in most cases and most (if not all) parts should be readily available to order…
Pifire relay module-SSR bill of materials (BOM)
21 components, 10 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 4 | BC547 | TO-92L_Inline | Q1, Q2, Q3, Q4 |
| 1 | AC Terminal | TerminalBlock_bornier-4_P5.08mm | J1 |
| 1 | RELAY/FAN Header | JST_XH_B6B-XH-A_1x06_P2.50mm_Vertical | J6 |
| 3 | Fuse | Fuse_Littelfuse_395Series | F1, F2, F3 |
| 1 | Power Relay | RELAY_G3MB-202PDC5 | K1 |
| 1 | Auger Relay | RELAY_G3MB-202PDC5 | K2 |
| 1 | Igniter Relay | RELAY_G3MB-202PDC5 | K3 |
| 1 | Fan Relay | RELAY_G3MB-202PDC5 | K4 |
| 4 | 470 | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1, R3, R5, R7 |
| 4 | 10K | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R2, R4, R6, R8 |
Pifire relay module-SSR design files
The KiCad project lives in the nebhead/pifire-relay-module-SSR repository on GitHub; these links point at the commit this page was built from.
Pifire relay module-SSR: common questions
How big is the Pifire relay module-SSR?
The Pifire relay module-SSR measures 65 × 46 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Pifire relay module-SSR?
21 components, from 10 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Pifire relay module-SSR design files?
From the nebhead/pifire-relay-module-SSR repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Pifire relay module-SSR design in my own project?
Yes, under the terms of its MIT license, which nebhead chose for the repository.
