Pifire relay pwm module-SSR-alt
About the Pifire relay pwm module-SSR-alt

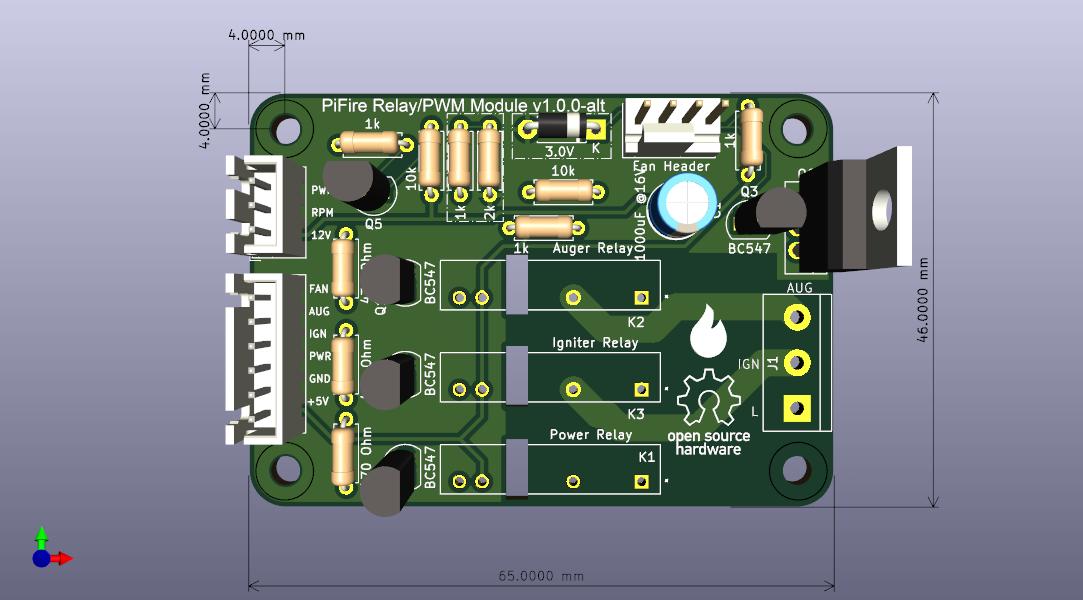

Pifire relay pwm module-SSR-alt is an open source PCB design by nebhead, published on GitHub under the MIT license. It is a 2-layer board measuring 65 × 46 mm, with 25 components from 15 distinct parts.
By type, the board carries 10 resistors, 6 transistors, 4 connectors, 3 relays, 1 diode and 1 capacitor.
From the project
This PCB is designed to support SSR relays for controlling incoming Power(L) to the Igniter and Auger. This board also has circuitry to support a 12V PWM fan. This board uses compact solid state relays that are able to handle high power. This is an alternative to using an off the
This PCB is designed to support SSR relays for controlling incoming Power(L) to the Igniter and Auger. This board also has circuitry to support a 12V PWM fan. This board uses compact solid state relays that are able to handle high power. This is an alternative to using an off the shelf relay module which simplifies the wiring and even allows you to use the OEM harness.
Pifire relay pwm module-SSR-alt bill of materials (BOM)
25 components, 15 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 5 | BC547 | TO-92L_Inline | Q1, Q2, Q3, Q4, Q5 |
| 1 | IRF9540N | TO-220-3_Vertical | Q6 |
| 1 | AC Terminal | TerminalBlock_bornier-3_P5.08mm | J1 |
| 1 | Relay Header | JST_XH_B6B-XH-A_1x06_P2.50mm_Vertical | J2 |
| 1 | PWM Fan Input | JST_XH_B3B-XH-A_1x03_P2.50mm_Vertical | J3 |
| 1 | Fan Header | FanPinHeader_1x04_P2.54mm_Vertical | J5 |
| 1 | Power Relay | RELAY_G3MB-202PDC5 | K1 |
| 1 | Auger Relay | RELAY_G3MB-202PDC5 | K2 |
| 1 | Igniter Relay | RELAY_G3MB-202PDC5 | K3 |
| 1 | 3.0V | D_DO-41_SOD81_P7.62mm_Horizontal | D1 |
| 1 | 1000uF @16V | CP_Radial_D6.3mm_P2.50mm | C1 |
| 3 | 470 Ohm | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1, R3, R7 |
| 4 | 1k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R2, R5, R9, R10 |
| 1 | 2k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R4 |
| 2 | 10k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R6, R8 |
Pifire relay pwm module-SSR-alt design files
The KiCad project lives in the nebhead/pifire-relay-pwm-module-SSR-alt repository on GitHub; these links point at the commit this page was built from.
Pifire relay pwm module-SSR-alt: common questions
How big is the Pifire relay pwm module-SSR-alt?
The Pifire relay pwm module-SSR-alt measures 65 × 46 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Pifire relay pwm module-SSR-alt?
25 components, from 15 distinct parts. The full bill of materials is listed on this page.
Where can I download the Pifire relay pwm module-SSR-alt design files?
From the nebhead/pifire-relay-pwm-module-SSR-alt repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Pifire relay pwm module-SSR-alt design in my own project?
Yes, under the terms of its MIT license, which nebhead chose for the repository.
