Flashpi

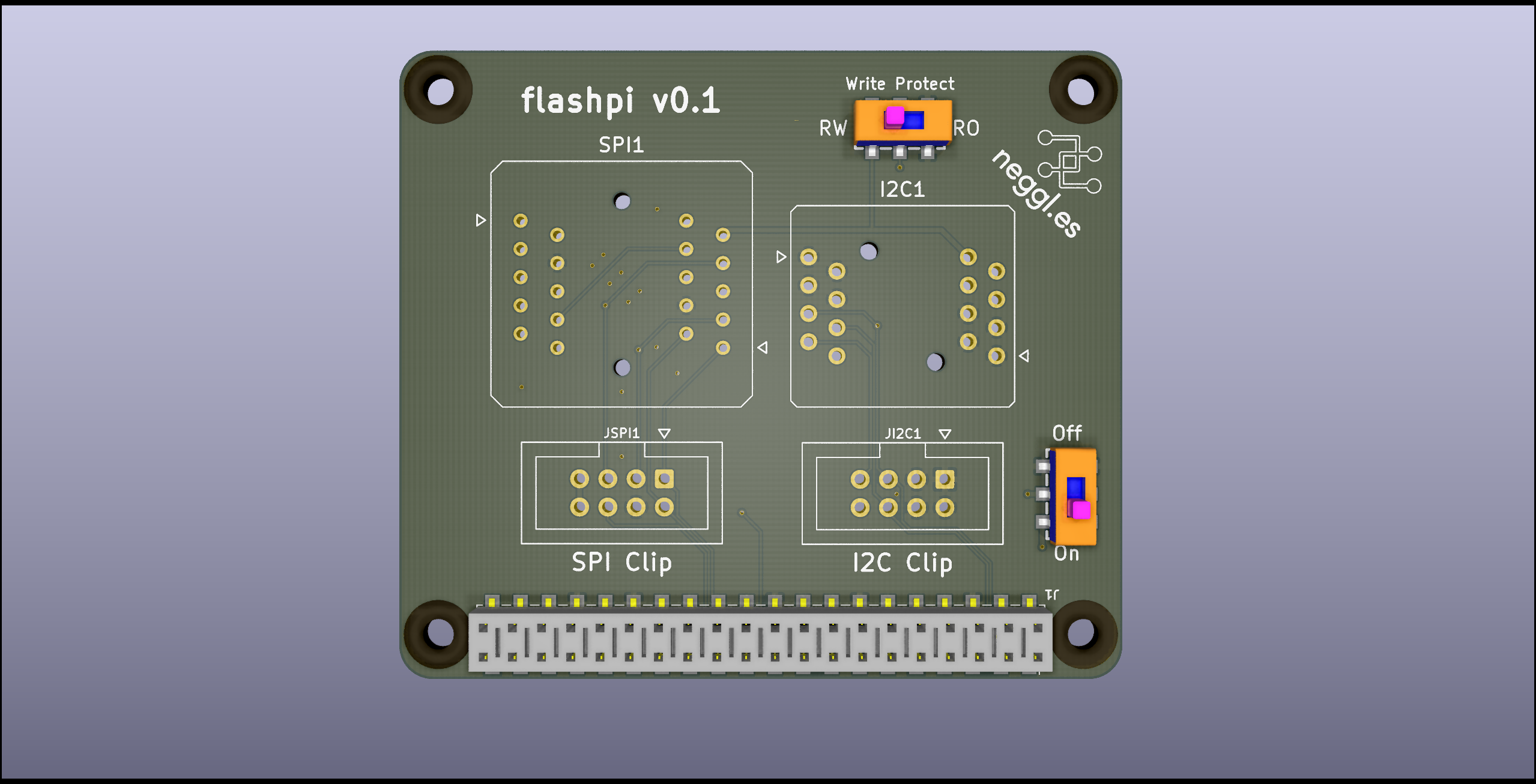

About the Flashpi PCB
Flashpi is an open source PCB design by neggles, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 65 × 56.5 mm, with 15 components from 10 distinct parts.
By type, the board carries 4 capacitors, 2 switches and 1 connector.
From the project
- flashpi contains the main schematics and board drawing - flashpi/flashpi.pretty contains the board-specific footprints - flashpi/flashpi.3dshapes contains the 3D models for parts on the board (and a bunch of extras from my various experiments)
- flashpi contains the main schematics and board drawing - flashpi/flashpi.pretty contains the board-specific footprints - flashpi/flashpi.3dshapes contains the 3D models for parts on the board (and a bunch of extras from my various experiments)
For the nandpi Parallel NAND flasher hat (which is highly experimental): - nandpi contains the main schematics and board drawing - nandpi/nandpi.pretty contains the board-specific footprints - nandpi/nandpi.3dshapes contains the 3D models for parts on the board (and a bunch of extras from my various experiments)
Flashpi bill of materials (BOM)
15 components, 10 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | RPi_GPIO_Compact | Samtec_HLE-120-02-xxx-DV-BE-A_2x20_P2.54mm_Horizontal_3D | J1 |
| 4 | Pi | RPi_Hat_Mounting_Hole | H1, H2, H3, H4 |
| 1 | I2C ZIF Socket | Socket_ZIF_SOP_OTS-8(16)-1.27-03 | I2C1 |
| 1 | I2C Clip | IDC-Header_2x04_P2.54mm_Vertical | JI2C1 |
| 1 | SPI Clip | IDC-Header_2x04_P2.54mm_Vertical | JSPI1 |
| 1 | SPI ZIF socket | Socket_ZIF_OTS-8(20)_1.27-01 | SPI1 |
| 1 | WRITE_PROTECT | SW-TH_SSSS213202 | SW1 |
| 1 | POWER | SW-TH_SSSS213202 | SW2 |
| 2 | 4.7uF | C_0603_1608Metric_Pad1.05x0.95mm_HandSolder | C1, C3 |
| 2 | 0.1uF | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C2, C4 |
Flashpi design files
The KiCad project lives in the neggles/flashpi repository on GitHub; these links point at the commit this page was built from.
- Layoutflashpi/flashpi.kicad_pcb
- Schematicflashpi/flashpi.kicad_sch
Flashpi: common questions
How big is the Flashpi PCB?
The Flashpi measures 65 × 56.5 mm, has 2 copper layers and is 1.6002 mm thick.
How many components are on the Flashpi?
15 components, from 10 distinct parts. The full bill of materials is listed on this page.
Where can I download the Flashpi design files?
From the neggles/flashpi repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Flashpi design in my own project?
Yes, under the terms of its CC-BY-SA-4.0 license, which neggles chose for the repository.
